W2GJ-L6 - Touch Sensor

This page provides the datasheet information for the W2GJ-L6, a member of the W2GJ Touch Sensor family.

Features

  • No design required No need to perform sensitivity adjustments or design circuits! Minimizes development man-hours. Stable operation Achieves stable operation using a touch electrode that changes capacitance depending on the level of touch. Connects easily Touch electrodes and touch sensors can be fastened just using screws. No PCBs, facilitating touch sensor configurations. [Line-Up] I-shaped electrode type L-shaped electrode type [Mounting example] Touch electrode (conductive material).

📥 Download Datasheet

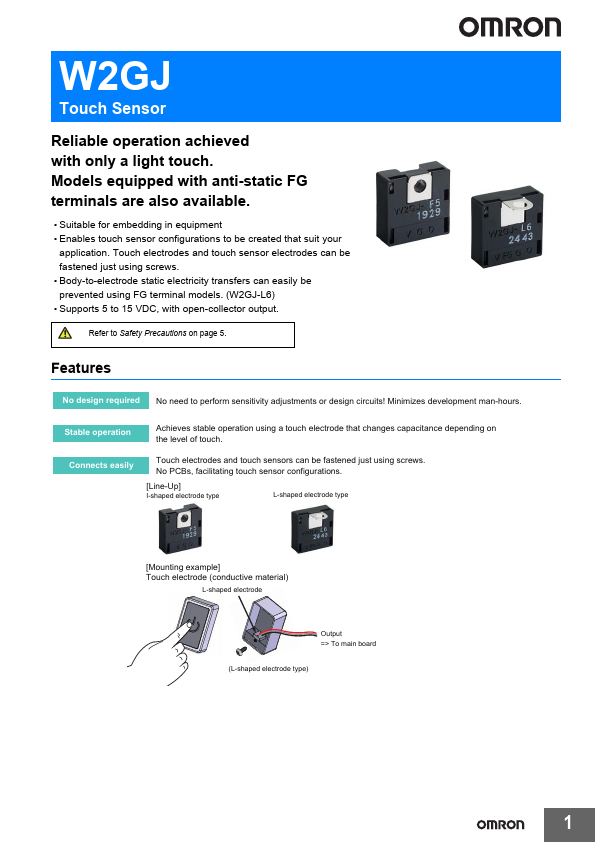

Datasheet preview – W2GJ-L6

Datasheet Details

Part number W2GJ-L6
Manufacturer OMRON
File Size 1.24 MB
Description Touch Sensor
Datasheet download datasheet W2GJ-L6 Datasheet
Additional preview pages of the W2GJ-L6 datasheet.

📁 Similar Datasheet

Other Datasheets by OMRON

Full PDF Text Transcription

Click to expand full text
W2GJ Touch Sensor Reliable operation achieved with only a light touch. Models equipped with anti-static FG terminals are also available. • Suitable for embedding in equipment • Enables touch sensor configurations to be created that suit your application. Touch electrodes and touch sensor electrodes can be fastened just using screws. • Body-to-electrode static electricity transfers can easily be prevented using FG terminal models. (W2GJ-L6) • Supports 5 to 15 VDC, with open-collector output. Refer to Safety Precautions on page 5. Features No design required No need to perform sensitivity adjustments or design circuits! Minimizes development man-hours. Stable operation Achieves stable operation using a touch electrode that changes capacitance depending on the level of touch.
