SW-ULP46-20 - PYROELECTRIC PASSIVE INFRARED SENSOR

Download the SW-ULP46-20 datasheet PDF. This datasheet also covers the SW-ULP4620 variant, as both devices belong to the same pyroelectric passive infrared sensor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SW-ULP4620-NipponCeramic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SW-ULP46-20
Manufacturer Nippon Ceramic
File Size 275.69 KB
Description PYROELECTRIC PASSIVE INFRARED SENSOR
Datasheet download datasheet SW-ULP46-20 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SW-106 High Power GaAs SPDT Switch Tyco Electronics
SW-110 GaAs SPDT Reflective Switch Tyco Electronics
SW-110-PIN GaAs SPDT Reflective Switch Tyco Electronics
SW-110-PIN GaAs SPDT Reflective Switch MA-COM
SW-112 SPDT RF Switch Tyco Electronics

Other Datasheets by Nippon Ceramic

Part Number Description
SW-ULP23-20 PYROELECTRIC PASSIVE INFRARED SENSOR
SW-IVC-15G PYROELECTRIC PASSIVE INFRARED SENSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

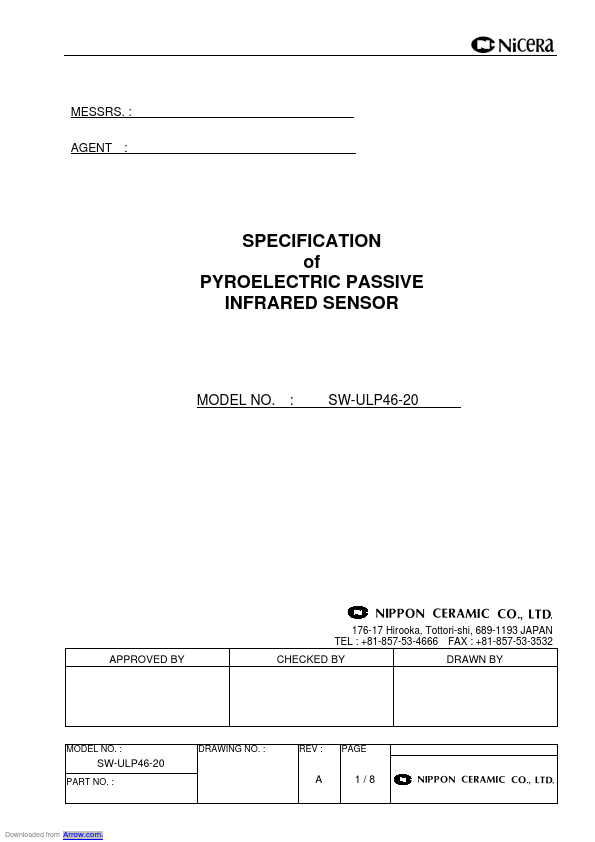

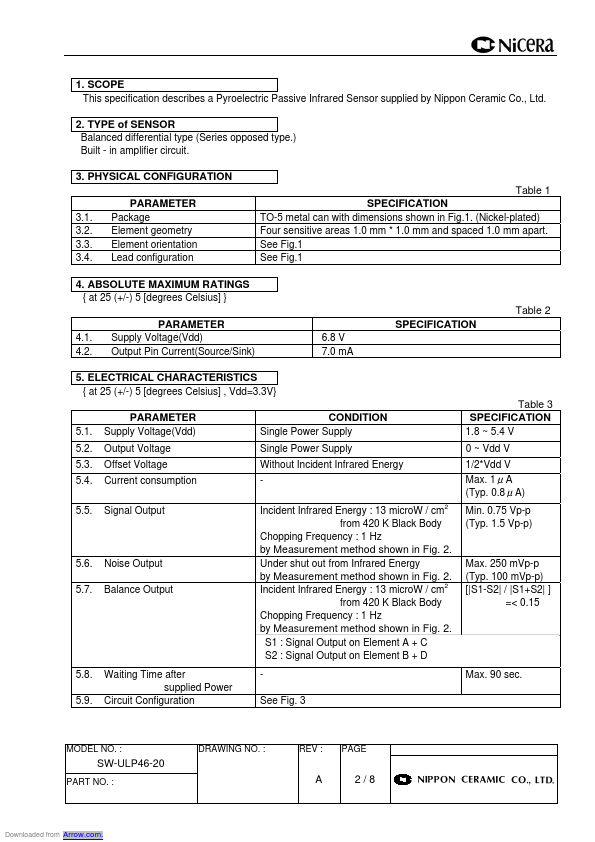

MESSRS. : AGENT : SPECIFICATION of PYROELECTRIC PASSIVE INFRARED SENSOR MODEL NO. : SW-ULP46-20 APPROVED BY 176-17 Hirooka, Tottori-shi, 689-1193 JAPAN TEL : +81-857-53-4666 FAX : +81-857-53-3532 CHECKED BY DRAWN BY MODEL NO. : DRAWING NO. : REV : PAGE SW-ULP46-20 PART NO. : A 1/8 Downloaded from Arrow.com. 1. SCOPE This specification describes a Pyroelectric Passive Infrared Sensor supplied by Nippon Ceramic Co., Ltd. 2. TYPE of SENSOR Balanced differential type (Series opposed type.) Built - in amplifier circuit. 3. PHYSICAL CONFIGURATION PARAMETER 3.1. Package 3.2. Element geometry 3.3. Element orientation 3.4. Lead configuration Table 1 SPECIFICATION TO-5 metal can with dimensions shown in Fig.1. (Nickel-plated) Four sensitive areas 1.0 mm * 1.0 mm and spaced 1.
