RE200GE - PYROELECTRIC PASSIVE INFRARED SENSOR

📥 Download Datasheet

Datasheet preview – RE200GE

Datasheet Details

Part number RE200GE
Manufacturer Nippon Ceramic
File Size 474.78 KB
Description PYROELECTRIC PASSIVE INFRARED SENSOR
Datasheet download datasheet RE200GE Datasheet
Additional preview pages of the RE200GE datasheet.

📁 Similar Datasheet

  • RE2000A - High voltage diode (Sunmate)
  • RE200B - Pyroelectric Passive Infrared Sensor (Nippon Seramic)
  • RE200B - Pyroelectric Passive Infrared Sensor (ETC)
  • RE200B - high-sensitive heat-induction sensor (SilvanChip)
  • RE2500A - High voltage diode (Sunmate)
  • RE29FA31PX - Color TV Service Manual (LG)
  • RE29FA33PX - Color TV Service Manual (LG)
  • RE29FA33X - Color TV Service Manual (LG)
Other Datasheets by Nippon Ceramic

    Full PDF Text Transcription

    Click to expand full text

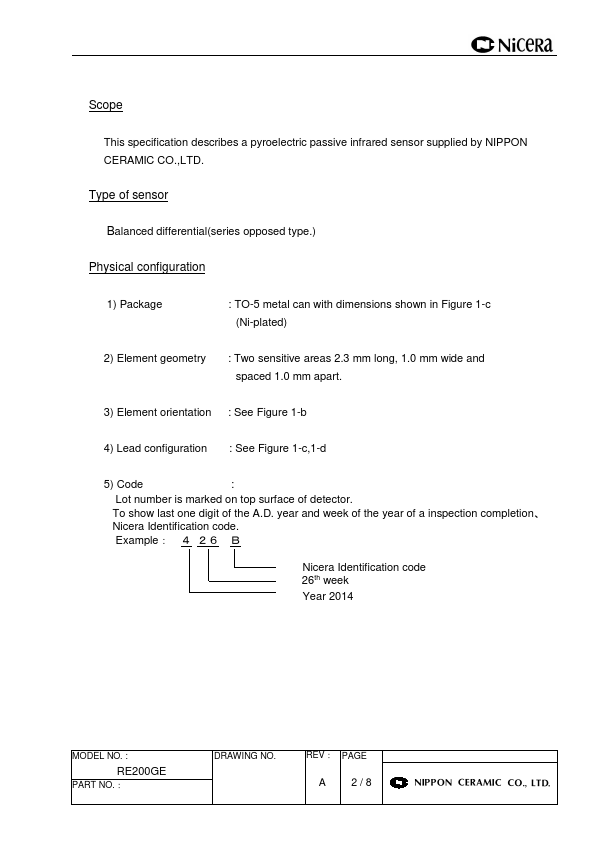

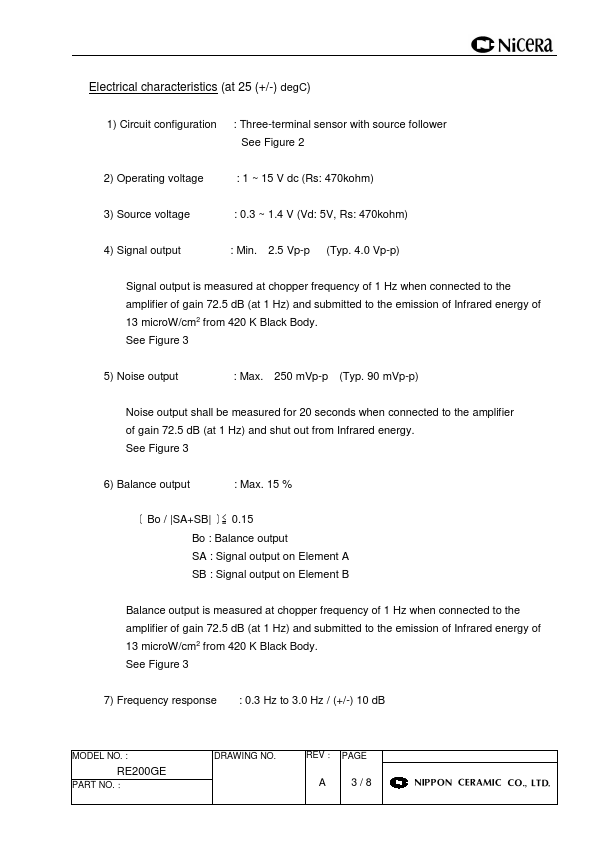

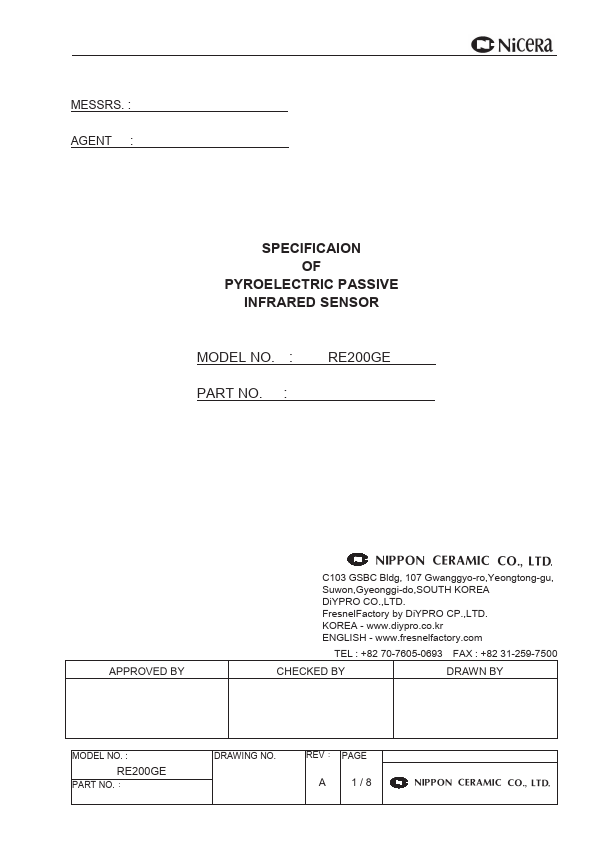

    MESSRS. : AGENT : SPECIFICAION OF PYROELECTRIC PASSIVE INFRARED SENSOR MODEL NO. : PART NO. : RE200GE APPROVED BY C103 GSBC Bldg, 107 Gwanggyo-ro,Yeongtong-gu, Suwon,Gyeonggi-do,SOUTH KOREA DiYPRO CO.,LTD. FresnelFactory by DiYPRO CP.,LTD. KOREA - www.diypro.co.kr ENGLISH - www.fresnelfactory.com TEL : +82 70-7605-0693 FAX : +82 31-259-7500 CHECKED BY DRAWN BY MODEL NO. : RE200GE PART NO.： DRAWING NO. REV： PAGE A 1/8 fi Scope This specification describes a pyroelectric passive infrared sensor supplied by NIPPON CERAMIC CO.,LTD. Type of sensor Balanced differential(series opposed type.) Physical configuration 1) Package : TO-5 metal can with dimensions shown in Figure 1-c (Ni-plated) 2) Element geometry : Two sensitive areas 2.3 mm long, 1.0 mm wide and spaced 1.
