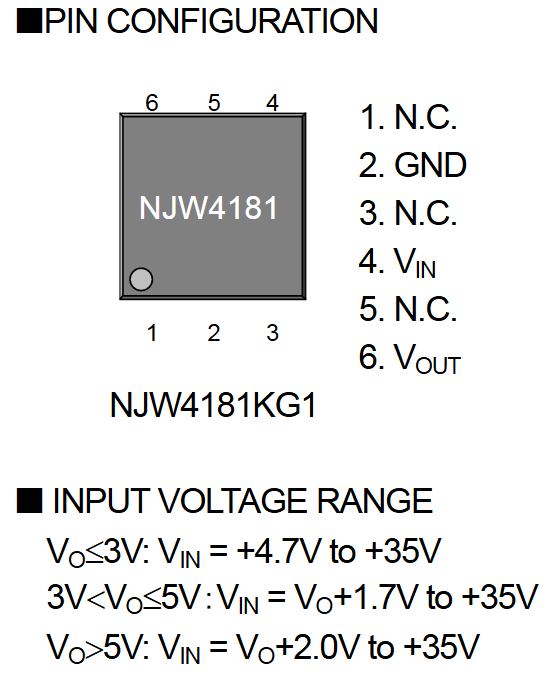

DESCRIPTION The NJW4181 is a high input voltage and low current consumption 100m A series regulator low current consumption Iq=9µA and small package. It has two package lineup. SOT-89 is able to direct replace to 3-terminal 78L series. ESON6, tiny DFN package, corresponds to a demand on miniaturization of sensor application and so on. Due to the low current consumption of 9µA, the NJW4181 is suitable for light load and continuously running applications such as power management microprocessor, RTC, protection circuit, security system and so on. - FEATURES - Wide Operating Voltage Range - Low Current Consumption - Correspond to Low ESR capacitor (MLCC) - Output Current - High Precision Output - Internal Thermal Overload Protection - Internal Over Current Protection - Internal Reverse Current Protection - Package Outline - PRODUCT CLASSIFICATION Device Name Version ON/OFF Function Yes Yes - PACKAGE OUTLINE NJW4181KG1 NJW4181U3 35V (max.) 9µA (typ.) IO(min.)=100m A VO ±1.0% DFN6-G1(ESON6-...
