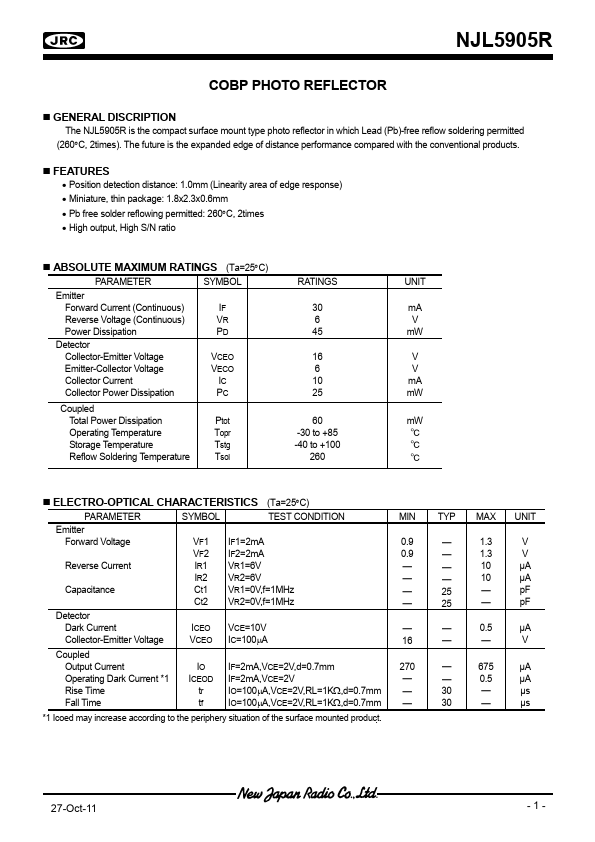

NJL5905R
FEATURES
- Position detection distance: 1.0mm (Linearity area of edge response)
- Miniature, thin package: 1.8x2.3x0.6mm
- Pb free solder reflowing permitted: 260°C, 2times
- High output, High S/N ratio
ABSOLUTE MAXIMUM RATINGS (Ta=25°C)
PARAMETER
SYMBOL
Emitter
Forward Current (Continuous)
Reverse Voltage (Continuous)
Power Dissipation
Detector
Collector-Emitter Voltage
VCEO
Emitter-Collector Voltage
VECO
Collector Current
Collector Power Dissipation
Coupled
Total Power Dissipation
Ptot
Operating Temperature
Topr
Storage Temperature
Tstg
Reflow Soldering Temperature
Tsol
RATINGS
30 6 45
16 6 10 25
60 -30 to +85 -40 to +100
UNIT m A V m W
V V m A m W m W ℃ ℃...
