NJL5901R-1
DESCRIPTION

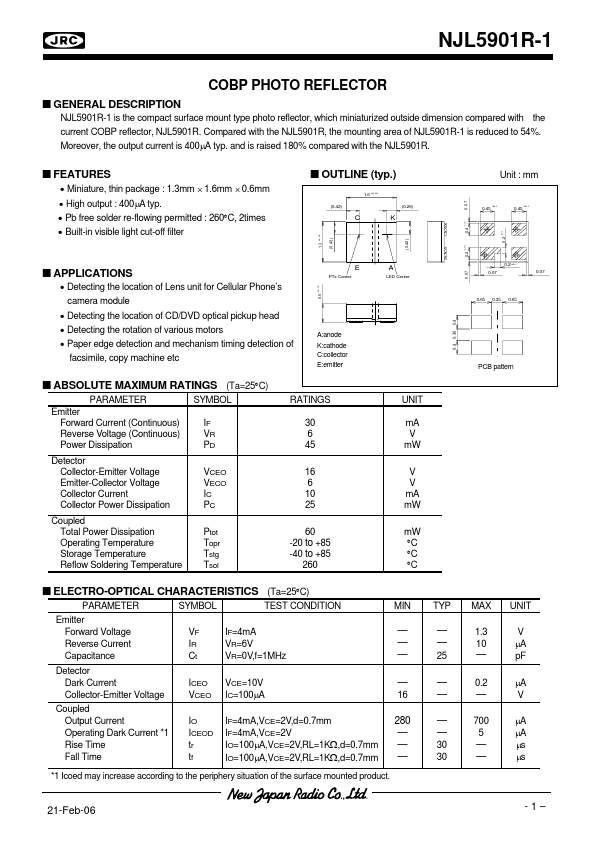

NJL5901R-1 is the pact surface mount type photo reflector, which miniaturized outside dimension pared with the current COBP reflector, NJL5901R. pared with the NJL5901R, the mounting area of NJL5901R-1 is reduced to 54%. Moreover, the output current is 400µA typ. and is raised 180% pared with the NJL5901R.
FEATURES
- Miniature, thin package : 1.3mm × 1.6mm × 0.6mm
- High output : 400µA typ.
- Pb free solder re-flowing permitted : 260°C, 2times
- Built-in visible light cut-off filter
OUTLINE (typ.)
(0.42)
1.6 ±0.15
(0.29)
0.4 ±0.1
Unit : mm
0.45 ±0.1
0.45 ±0.1
0.2 ±0.1
(0.42)
1.3 ±0.15 (0.42)
0.4 ±0.1
APPLICATIONS
- Detecting the location of Lens unit for Cellular Phone’s camera module
- Detecting the location of CD/DVD optical pickup head
- Detecting the rotation of various motors
- Paper edge detection and mechanism timing detection of facsimile, copy machine etc
0.6 ±0.15
PTx Center
A:anode K:cathode C:collector E:emitter

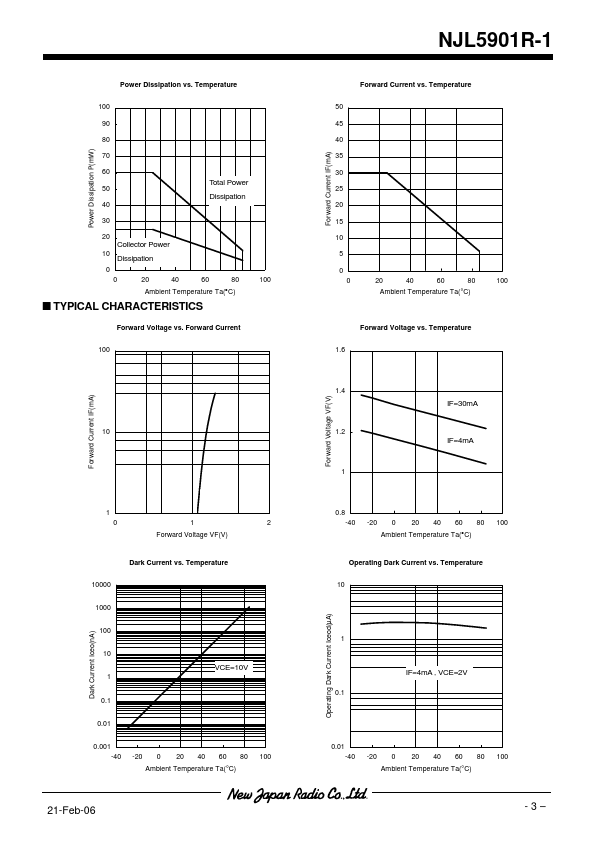

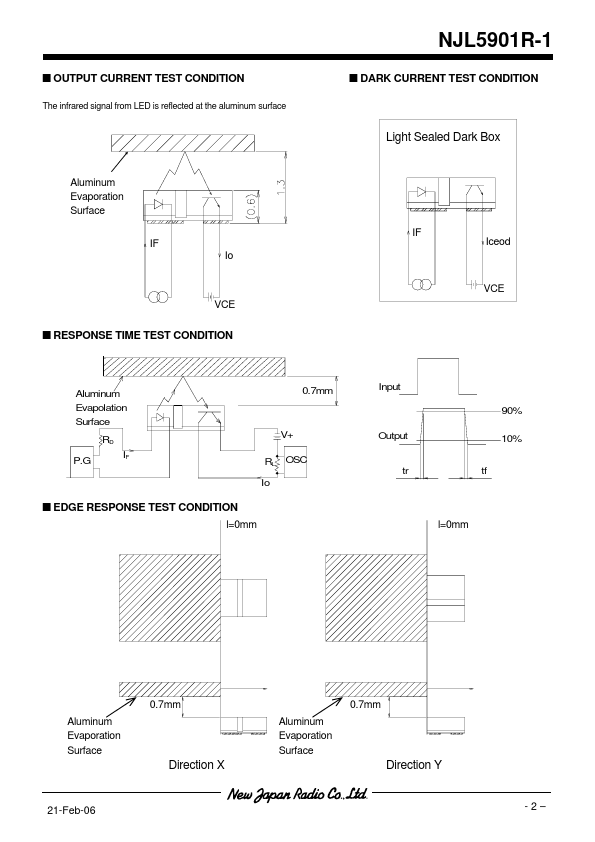

ABSOLUTE MAXIMUM...
