LM3478 - High Efficiency Low-Side N-Channel Controller

Product Overview

National Semiconductor

Part number	LM3478
Manufacturer	National Semiconductor
File Size	456.25 KB
Description	High Efficiency Low-Side N-Channel Controller
Datasheet	LM3478 Datasheet

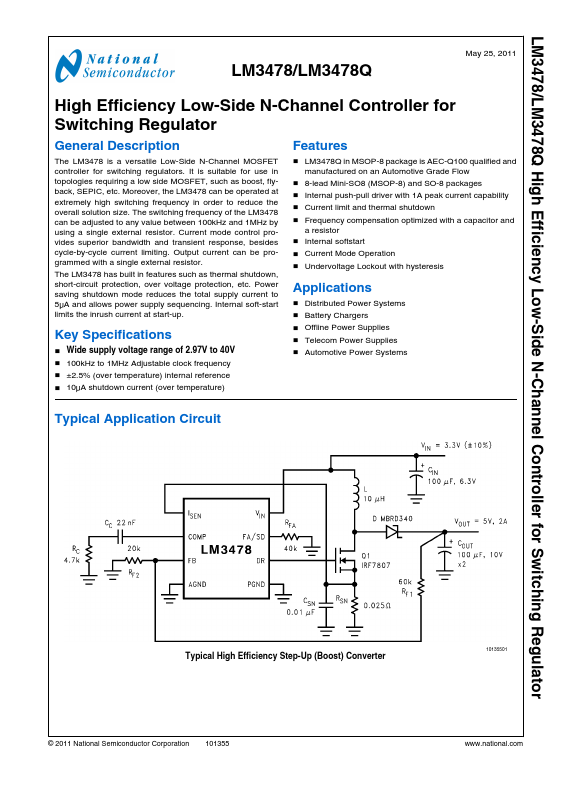

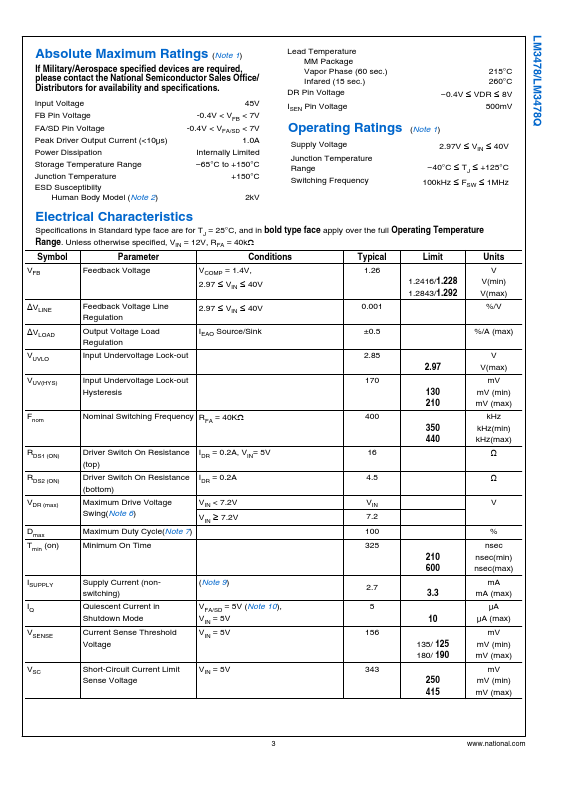

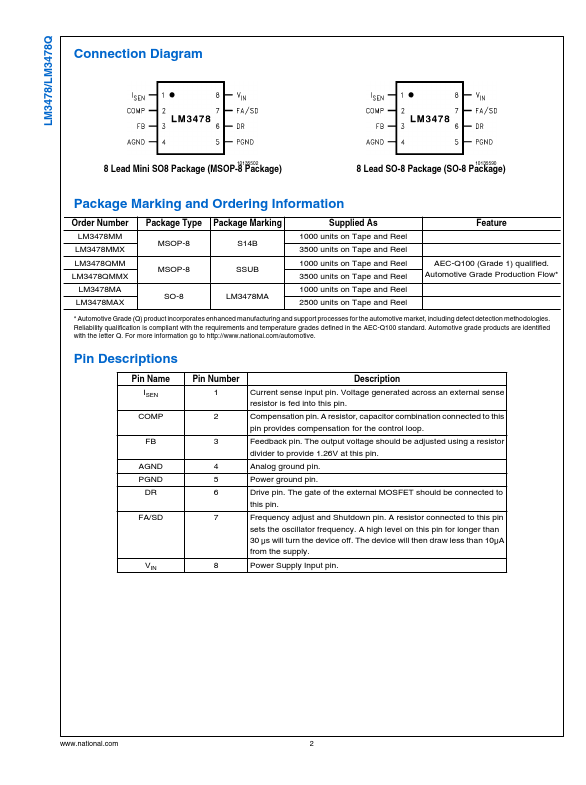

Additional preview pages of the LM3478 datasheet.

The LM3478 is a versatile Low-Side N-Channel MOSFET controller for switching regulators.

such as thermal shutdown, short-circuit protection, over voltage protection, etc. Power saving shutdown mode reduces the total supply current to 5µA and allows power supply sequencing. Internal soft-start limits the inrush current at start-up. Key Specifications.
Wide supply voltage range of 2.97V to 40V.
100kHz to 1MHz Adjustable clock frequency.
±2.5% (over temperature) internal reference.
10µA shutdown current (over temperature) Features.
LM3478Q in MSOP-8 package is.
