BAP65-05 - Silicon PIN diode

Datasheet Summary

Description

DESCRIPTION Tow planar PIN diodes in a SOT23 small SMD plastic package.

Marking code: 7Kp.

Fig.1 Simplified outline (SOT23) and symbol.

Features

  • Two elements in common cathode configuration.
  • High voltage, current controlled.
  • RF resistor for RF switches.
  • Low diode capacitance.
  • Low diode forward resistance (low loss).

📥 Download Datasheet

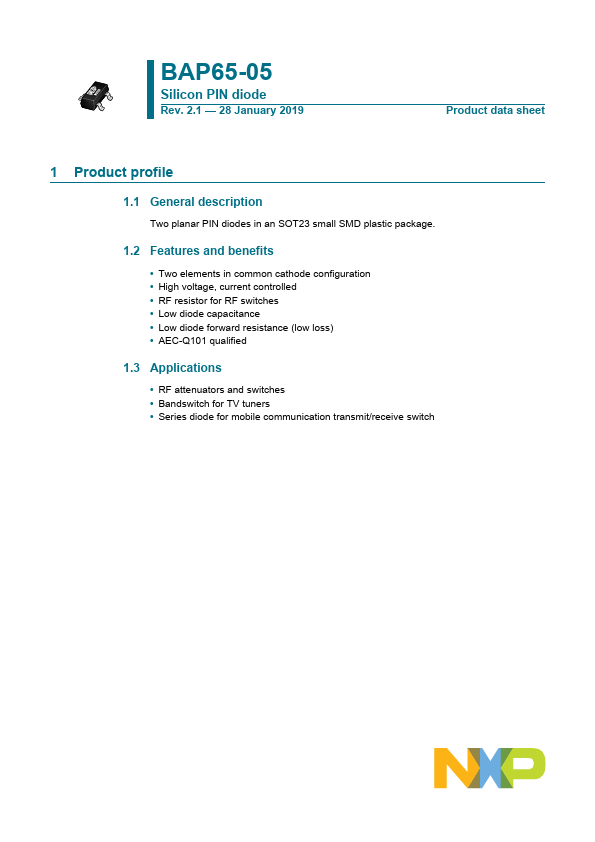

Datasheet preview – BAP65-05

Datasheet Details

Part number BAP65-05
Manufacturer NXP
File Size 66.78 KB
Description Silicon PIN diode
Datasheet download datasheet BAP65-05 Datasheet

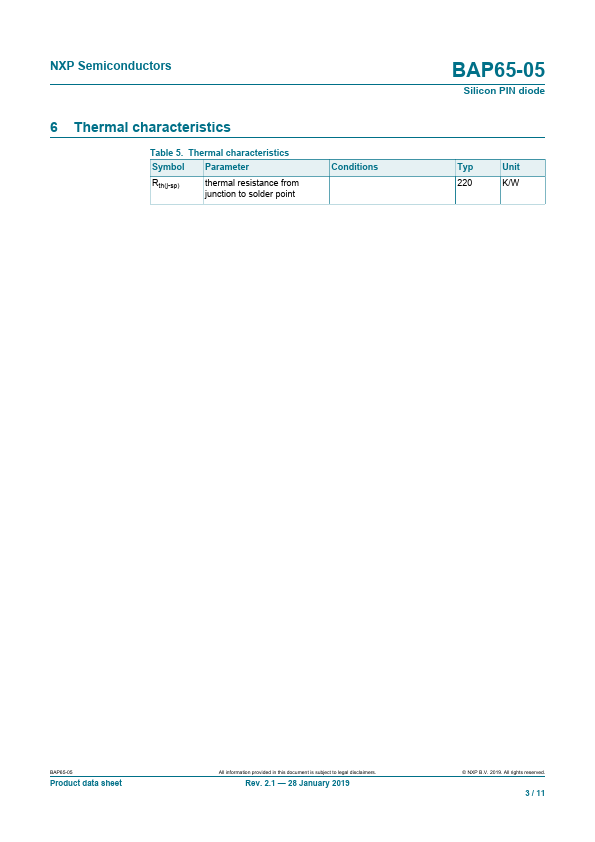

Additional preview pages of the BAP65-05 datasheet.

📁 Similar Datasheet

  • BAP65-02 - Silicon PIN diode (Leshan Radio Company)
  • BAP65-02 - Silicon PIN diode (ETL)
  • BAP65LX - Silicon PIN diode (NXP Semiconductors)
  • BAP63-03 - Silicon PIN diode (Leshan Radio Company)
  • BAP63-03 - Silicon PIN diode (ETL)
  • BAP64-04 - Silicon PIN diode (Kexin)
  • BAP64-04 - General Purpose Pin Diodes (MCC)
  • BAP64-04-HF - PIN diode (Kexin)
  • BAP64-04WS - Small Signal General Purpose PiN Diode (SeCoS)
  • BAP64-05 - General Purpose Pin Diode (MCC)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D088 BAP65-05 Silicon PIN diode Product specification 2001 May 07 Philips Semiconductors Product specification Silicon PIN diode FEATURES • Two elements in common cathode configuration • High voltage, current controlled • RF resistor for RF switches • Low diode capacitance • Low diode forward resistance (low loss). APPLICATIONS • RF attenuators and switches • Bandswitch for TV tuners • Series diode for mobile communication transmit-receive switch. 3 2 2 1 BAP65-05 PINNING PIN 1 2 3 DESCRIPTION anode (a1) anode (a2) common cathode ook, 4 columns 1 3 DESCRIPTION Tow planar PIN diodes in a SOT23 small SMD plastic package. Top view MAM108 Marking code: 7Kp. Fig.1 Simplified outline (SOT23) and symbol.
