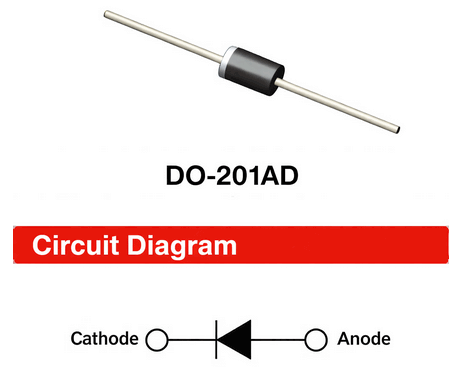

1N5403 - Axial Lead Standard Recovery Silicon Rectifiers

Download the 1N5403 datasheet PDF. This datasheet also covers the 1N5400 variant, as both devices belong to the same axial lead standard recovery silicon rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • D 3 Amp Operation at TA = +75°C with no Thermal Runaway D High Current Capability D Low Leakage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified, Note 1) Peak Repetitive Reverse Voltage, DC Reverse Voltage, 1N5400 . . . . . . V. R. . . . . . . . . VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V 1N5401.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5400-NTE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5403
Manufacturer NTE Electronics (defunct)
File Size 51.92 KB
Description Axial Lead Standard Recovery Silicon Rectifiers
Datasheet download datasheet 1N5403 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5403 GLASS PASSIVATED SILICON RECTIFIER SMC Diode
1N5403 General Purpose Plastic Rectifier Vishay
1N5403G GLASS PASSIVATED RECTIFIERS LITE-ON
1N5403G Axial-Lead Standard Recovery Rectifier ON Semiconductor
1N5403G 3.0A GLASS PASSIVATED RECTIFIER Diodes

Other Datasheets by NTE Electronics (defunct)

Part Number Description
1N5400 Axial Lead Standard Recovery Silicon Rectifiers
1N5404 Axial Lead Standard Recovery Silicon Rectifiers
1N5405 Axial Lead Standard Recovery Silicon Rectifiers
1N5406 Axial Lead Standard Recovery Silicon Rectifiers
1N5407 Axial Lead Standard Recovery Silicon Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
1I5400 thru 1N5408 Axial Lead Standard Recovery Silicon Rectifiers, 3 Amp, DO−201AD Features: D 3 Amp Operation at TA = +75°C with no Thermal Runaway D High Current Capability D Low Leakage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified, Note 1) Peak Repetitive Reverse Voltage, DC Reverse Voltage, 1N5400 . . . . . .V.R. . . . . . . . . VRRM ...... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V 1N5401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V 1N5402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
