NSi8260-Q1 - Six-Channel Digital Isolators

Datasheet Summary

Description

7.

8.

Features

  • Up to 5000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • AEC-Q100 Grade 1 available for all devices.
  • High CMTI: 200kV/us.
  • Chip level ESD: HBM: ±8kV.
  • High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity.
  • Default output high level or low level option.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

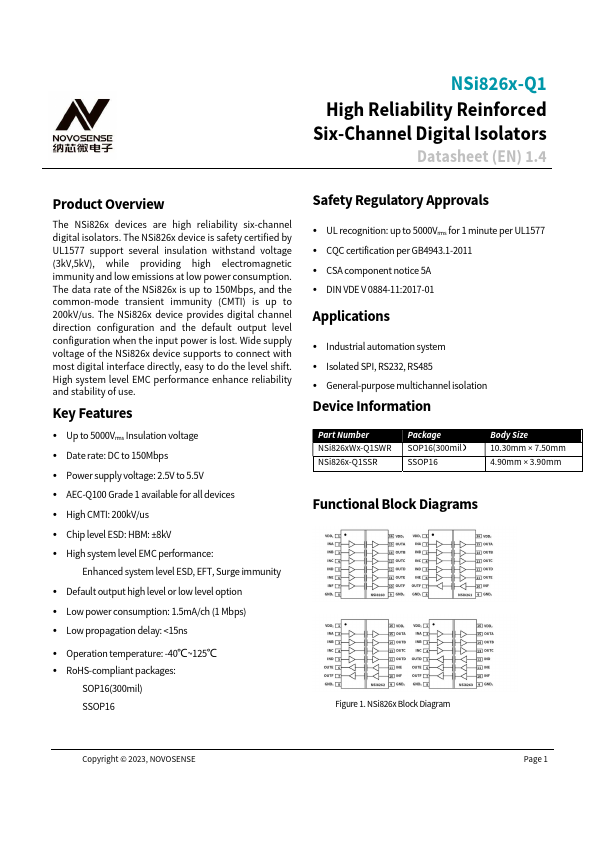

Datasheet preview – NSi8260-Q1

Datasheet Details

Part number NSi8260-Q1
Manufacturer NOVOSENSE
File Size 2.48 MB
Description Six-Channel Digital Isolators
Datasheet download datasheet NSi8260-Q1 Datasheet

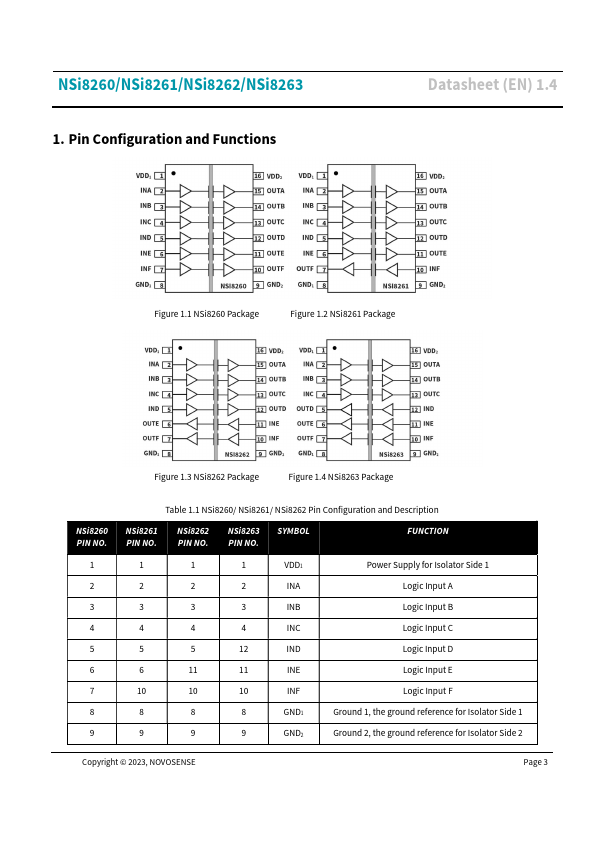

Additional preview pages of the NSi8260-Q1 datasheet.

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSi8260 - Six-Channel Digital Isolators
  • NSi8261 - Six-Channel Digital Isolators
  • NSi8261-Q1 - Six-Channel Digital Isolators
  • NSi8262 - Six-Channel Digital Isolators
  • NSi8262-Q1 - Six-Channel Digital Isolators
  • NSi8263 - Six-Channel Digital Isolators
  • NSi8263-Q1 - Six-Channel Digital Isolators
  • NSI8220 - High Reliability Dual-Channel Digital Isolators

Full PDF Text Transcription

Click to expand full text
NSi826x-Q1 High Reliability Reinforced Six-Channel Digital Isolators Datasheet (EN) 1.3 Product Overview The NSi826x devices are high reliability six-channel digital isolators. The NSi826x device is safety certified by UL1577 support several insulation withstand voltage (3kV,5kV), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi826x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 200kV/us. The NSi826x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi826x device supports to connect with most digital interface directly, easy to do the level shift.
