NSi8240-Q1 Datasheet PDF - NOVOSENSE High Reliability Reinforced Quad-Channel Digital Isolators Specs

NSi8240-Q1 - High Reliability Reinforced Quad-Channel Digital Isolators

Datasheet Summary

Description

6.1.

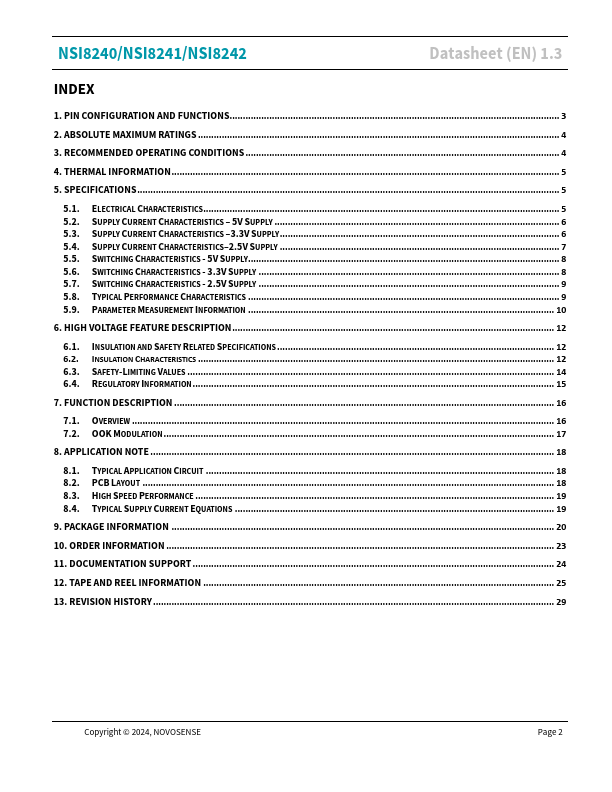

INSULATION AND SAFETY RELATED SPECIFICATIONS 13 6.2.

SAFETY-LIMITING VALUES 14 6.3.

Features

Up to 5000Vrms Insulation voltage.
Date rate: DC to 150Mbps.
Power supply voltage: 2.5V to 5.5V.
AEC-Q100 Grade 1 available for all devices.
High CMTI: 250kV/us.
Chip level ESD: HBM: ±8kV.
Robust Electromagnetic Compatibility (EMC).
System-Level ESD, EFT, and Surge Immunity.
Low Emissions.
Default output high level or low-level option.
Low power consumption: 1.5mA/ch (1 Mbps).
Low propagation delay:.

Datasheet Details

Part number	NSi8240-Q1
Manufacturer	NOVOSENSE
File Size	2.64 MB
Description	High Reliability Reinforced Quad-Channel Digital Isolators
Datasheet	NSi8240-Q1 Datasheet

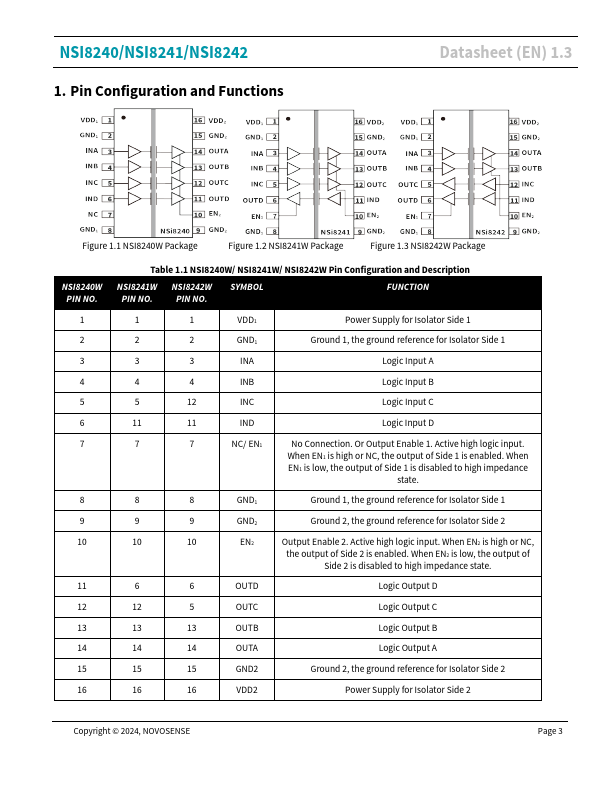

Additional preview pages of the NSi8240-Q1 datasheet.

📁 Similar Datasheet

NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)

NSI3000 - CMOS Image Sensor (Newsight Imaging)

NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

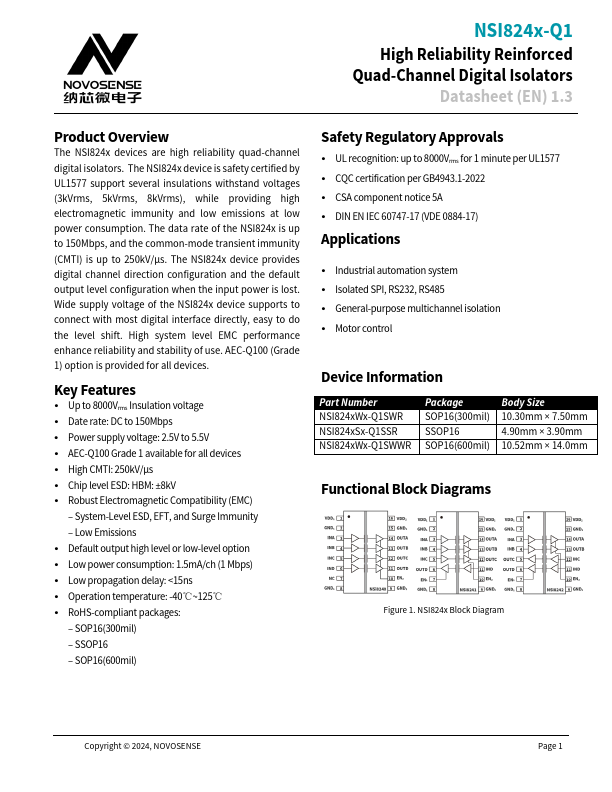

NSi824x-Q1 High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.2 Product Overview The NSi824x devices are high reliability quad-channel digital isolators. The NSi824x device is safety certified by UL1577 support several insulations withstand voltages (3kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi824x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi824x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi824x device supports to connect with most digital interface directly, easy to do the level shift.
