NST1413 - Remote and Local Temperature Sensor

Product Overview

NOVOSENSE

Datasheet Details

Part number	NST1413
Manufacturer	NOVOSENSE
File Size	1.14 MB
Description	Remote and Local Temperature Sensor
Datasheet	NST1413 Datasheet
Additional preview pages of the NST1413 datasheet.

Product details

Description

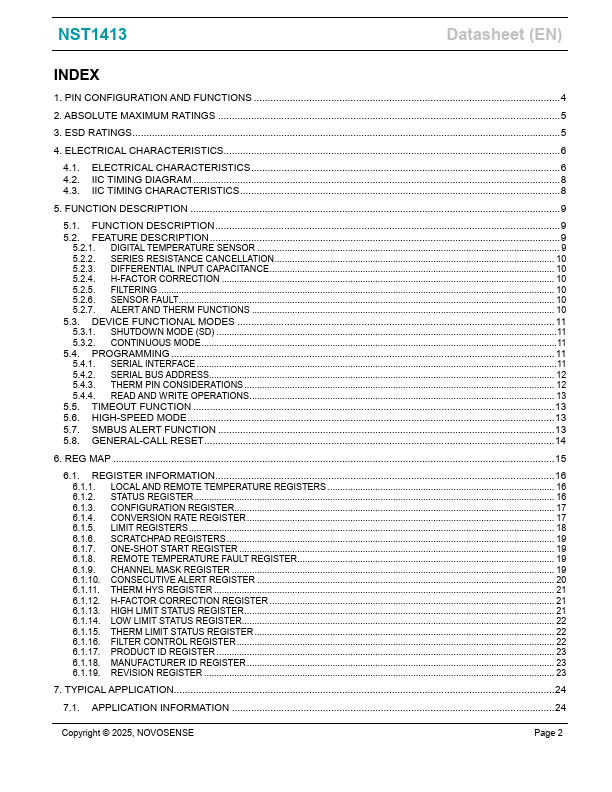

9 4.1. FUNCTION DESCRIPTION 9 4.2. FEATURE DESCRIPTION 9 4.2.1. DIGITAL TEMPERATURE SENSOR 9 4.2.2. SERIES RESISTANCE CANCELLATION 10 4.2.3. DIFFERENTIAL INPUT CAPACITANCE 10 4.2.4. Η-FACTOR CORRECTION 10 4.2.5. FILTERING 10 4.2.6. SENSOR FAULT 10 4.2.7. ALERT AND THERM FUNCTIONS

Features

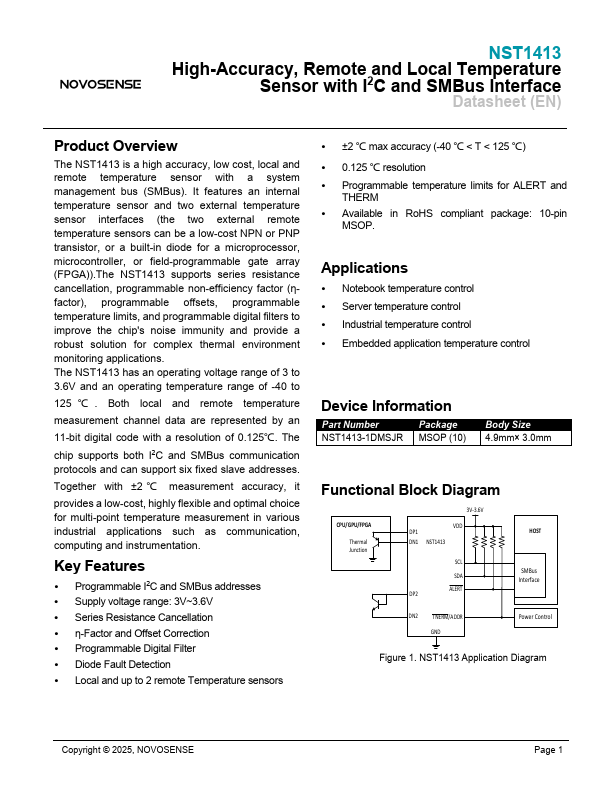

an internal temperature sensor and two external temperature sensor interfaces (the two external remote temperature sensors can be a low-cost NPN or PNP transistor, or a built-in diode for a microprocessor, microcontroller, or field-programmable gate array (FPGA)). The NST1413 supports series resistance cancellation, programmable non-efficiency factor (η-factor), programmable offsets, programmable temperature limits, and programmable digital filters to improve the chip's noise immunity and provide.
