NSOPA8052 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier

Download the NSOPA8052 datasheet PDF (NSOPA8051 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 5.5-v rail-to-rail input/output 5mhz general-purpose operational amplifier.

Description

9.

Features

  • Supply voltage range: 1.8V to 5.5V.
  • Rail-to-rail input and output.
  • Low input offset voltage: ±0.35 mV (typical).
  • Low offset voltage drift: 0.5 μV/°C (typical).
  • Gain-bandwidth product: 5 MHz (typical).
  • Unity-gain stable.
  • High power supply rejection: 104 dB (typical).
  • Low broadband noise: 16nV/√Hz (typical).
  • Low quiescent current: 360 µA/Ch (typical).
  • Internal RFI and EMI filter.
  • Extended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSOPA8051-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by NOVOSENSE
  • NSOPA8052-Q1 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8051 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8051-Q1 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8054 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8054-Q1 - 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier
  • NSOPA8011-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
  • NSOPA8012-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
  • NSOPA8014-Q1 - 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier

Full PDF Text Transcription

Click to expand full text

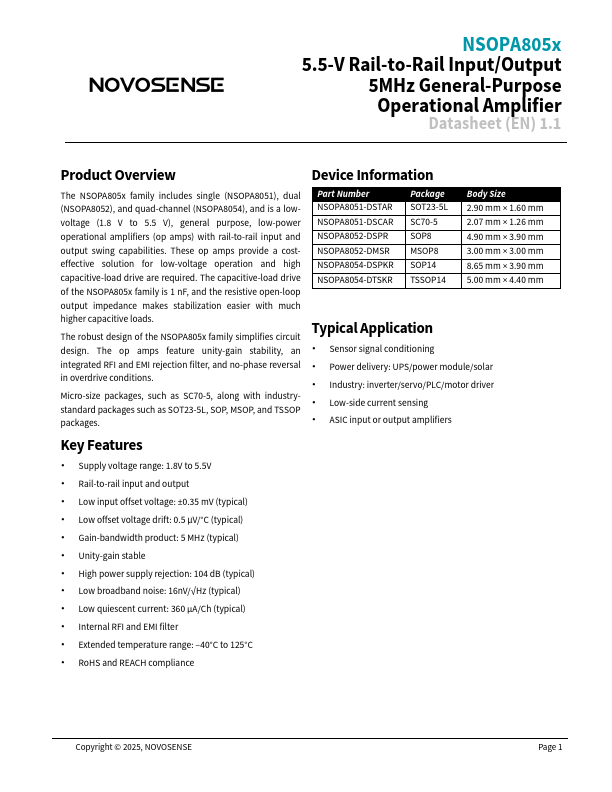

NSOPA805x 5.5-V Rail-to-Rail Input/Output 5MHz General-Purpose Operational Amplifier Datasheet (EN) 1.1 Product Overview Device Information The NSOPA805x family includes single (NSOPA8051), dual (NSOPA8052), and quad-channel (NSOPA8054), and is a lowvoltage (1.8 V to 5.5 V), general purpose, low-power operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a costeffective solution for low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the NSOPA805x family is 1 nF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads. The robust design of the NSOPA805x family simplifies circuit design.
