NSI8222 - High Reliability Dual-Channel Digital Isolators

This page provides the datasheet information for the NSI8222, a member of the NSI8220 High Reliability Dual-Channel Digital Isolators family.

Datasheet Summary

Features

  • Up to 5000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • All devices are AEC-Q100 qualified.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body.
  • Default output high level or low level option.
  • Isolation surge voltage: >10kV.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

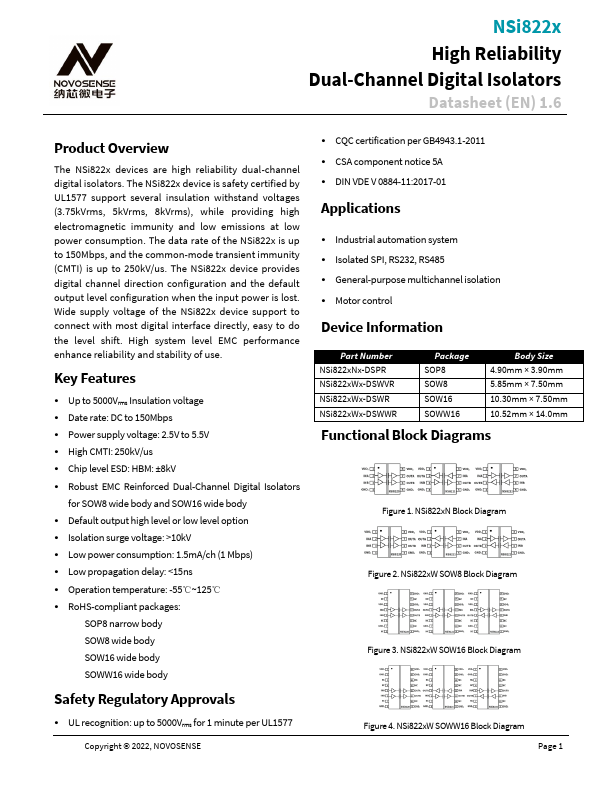

Datasheet preview – NSI8222

Datasheet Details

Part number NSI8222
Manufacturer NOVOSENSE
File Size 1.49 MB
Description High Reliability Dual-Channel Digital Isolators
Datasheet download datasheet NSI8222 Datasheet

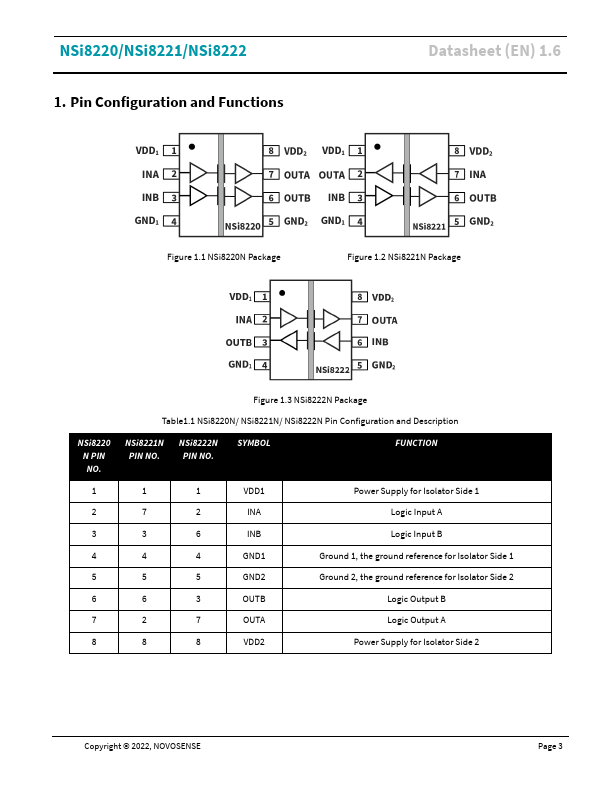

Additional preview pages of the NSI8222 datasheet.

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSi8222C - Dual-Channel Digital Isolators
  • NSI8220 - High Reliability Dual-Channel Digital Isolators
  • NSi8220C - Dual-Channel Digital Isolators
  • NSI8221 - High Reliability Dual-Channel Digital Isolators
  • NSi8221C - Dual-Channel Digital Isolators
  • NSi8230 - Triple-Channel Digital Isolators
  • NSi8231 - Triple-Channel Digital Isolators
  • NSi8240 - Quad-Channel Digital Isolators

Full PDF Text Transcription

Click to expand full text
NSI822x High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.4 Product Overview The NSi822x devices are high reliability dual-channel digital isolators. The NSi822x device is safety certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi822x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi822x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi822x device support to connect with most digital interface directly, easy to do the level shift.
