NSI8221 Datasheet PDF - NOVOSENSE High Reliability Dual-Channel Digital Isolators Specs

NSI8221 - High Reliability Dual-Channel Digital Isolators

This page provides the datasheet information for the NSI8221, a member of the NSI8220 High Reliability Dual-Channel Digital Isolators family.

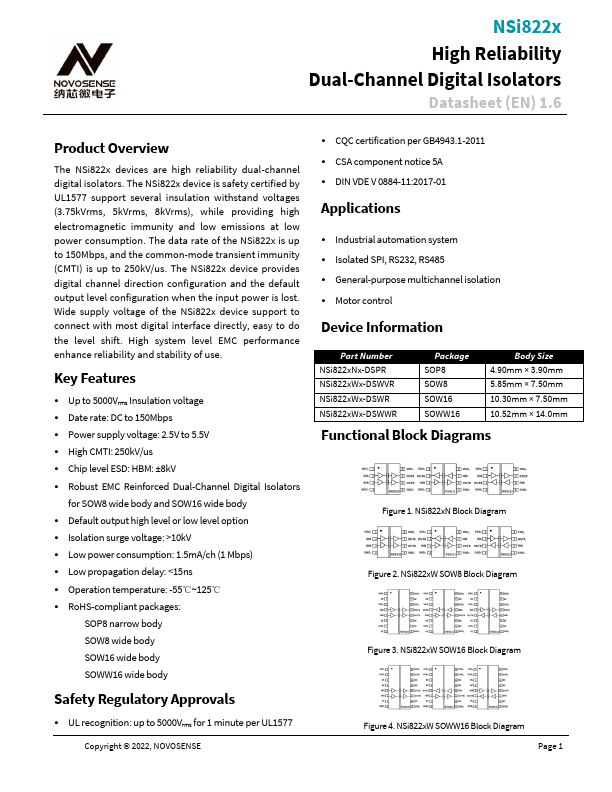

Datasheet Summary

Features

Up to 5000Vrms Insulation voltage.
Date rate: DC to 150Mbps.
Power supply voltage: 2.5V to 5.5V.
All devices are AEC-Q100 qualified.
High CMTI: 250kV/us.
Chip level ESD: HBM: ±8kV.
Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body.
Default output high level or low level option.
Isolation surge voltage: >10kV.
Low power consumption: 1.5mA/ch (1 Mbps).
Low propagation delay:.

Datasheet Details

Part number	NSI8221
Manufacturer	NOVOSENSE
File Size	1.49 MB
Description	High Reliability Dual-Channel Digital Isolators
Datasheet	NSI8221 Datasheet

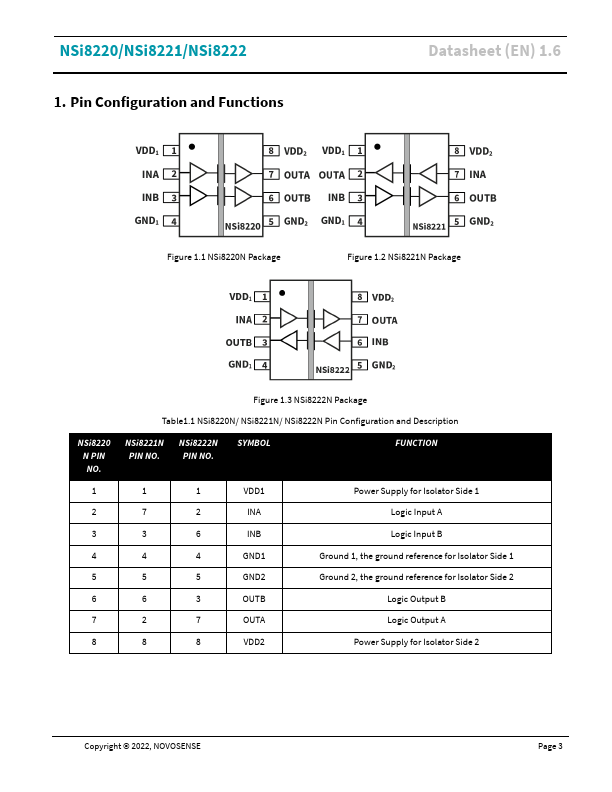

Additional preview pages of the NSI8221 datasheet.

📁 Similar Datasheet

NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)

NSI3000 - CMOS Image Sensor (Newsight Imaging)

NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)

NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

NSI822x High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.4 Product Overview The NSi822x devices are high reliability dual-channel digital isolators. The NSi822x device is safety certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi822x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi822x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi822x device support to connect with most digital interface directly, easy to do the level shift.
