PIC16F87XA
28/40/44-Pin Enhanced Flash Microcontrollers
Devices Included in this Data Sheet:
• PIC16F873A • PIC16F874A
• PIC16F876A • PIC16F877A
High-Performance RISC CPU:
• Only 35 single-word instructions to learn • All single-cycle instructions except for program
branches, which are two-cycle • Operating speed: DC – 20 MHz clock input
DC – 200 ns instruction cycle • Up to 8K x 14 words of Flash Program Memory,
Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory • Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers
Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler • Timer1: 16-bit timer/counter with prescaler,
can be incremented during Sleep via external crystal/clock • Timer2: 8-bit timer/coun

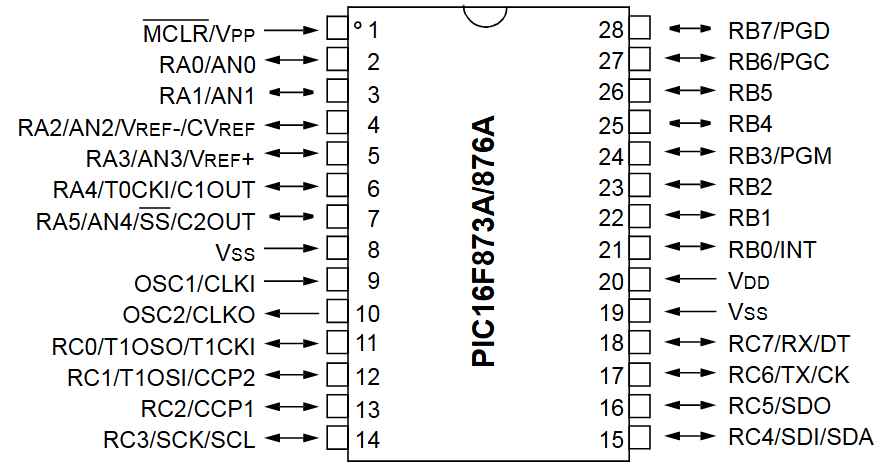

PIC16F876A Datasheet
