MSR7820-12W - POL Switching Regulators

Product Overview

MicroPower Direct

📥 Download Datasheet

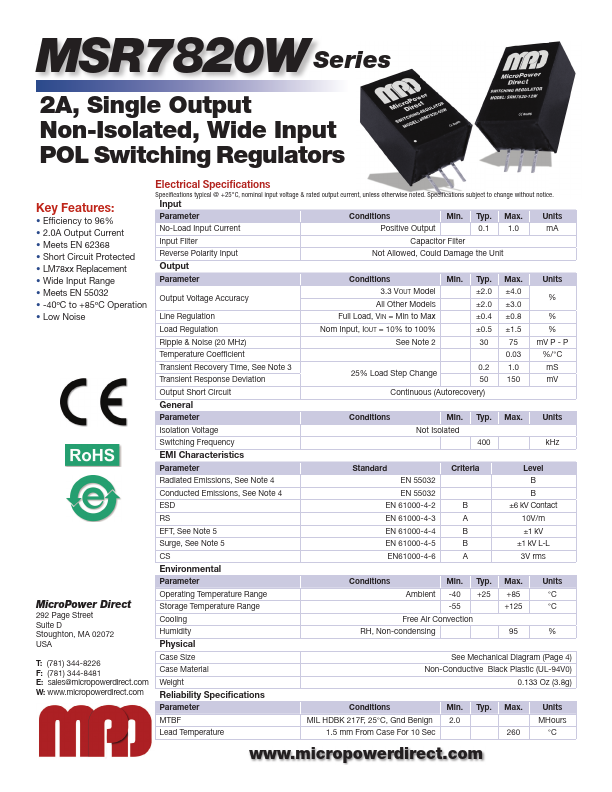

MSR7820-12W POL Switching Regulators by MicroPower Direct - Datasheet Preview — Datasheet preview – MSR7820-12W

Datasheet Details

Part number	MSR7820-12W
Manufacturer	MicroPower Direct
File Size	2.02 MB
Description	POL Switching Regulators
Datasheet	MSR7820-12W Datasheet
Note	This datasheet PDF includes multiple part numbers: MSR7820-12W, MSR7820-03W. Please refer to the document for exact specifications by model.

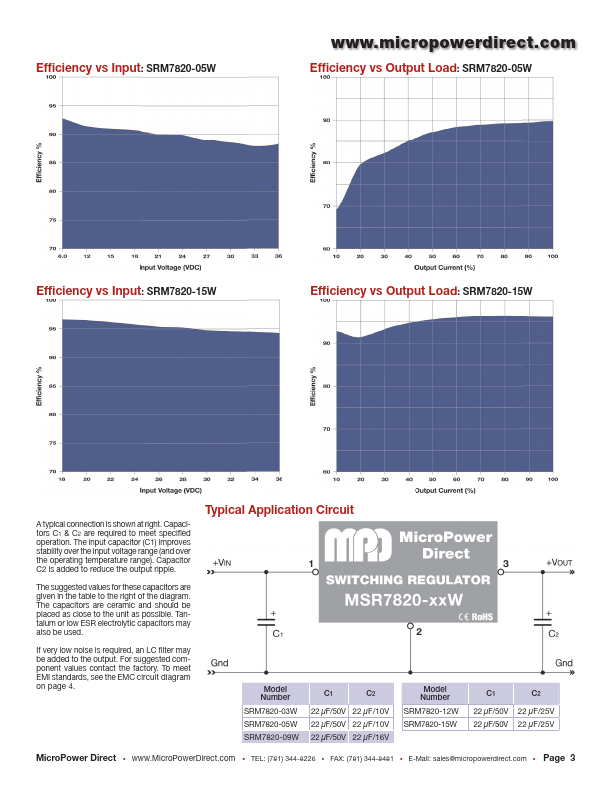

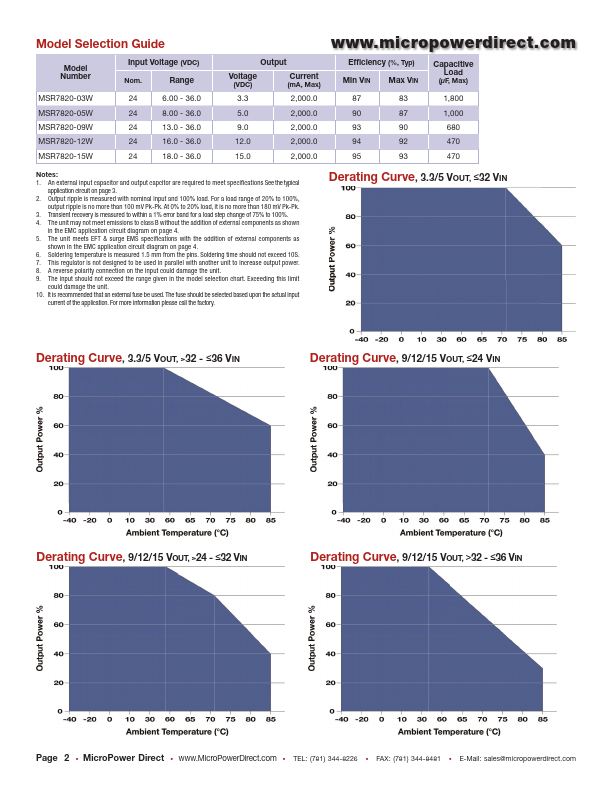

Additional preview pages of the MSR7820-12W datasheet.

Product details

Features

Efﬁciency to 96%.
2.0A Output Current.
Meets EN 62368.
Short Circuit Protected.
LM78xx Replacement.
Wide Input Range.
Meets EN 55032.
-40ºC to +85ºC Operation Electrical Speciﬁcations Speciﬁcations typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Speciﬁcations subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units No-Load Input Current Positive Output.
