ML105D-09E - 1W Ultra-Miniature SMT DC/DC Converters

Product Overview

MicroPower Direct

Part number	ML105D-09E
Manufacturer	MicroPower Direct
File Size	4.13 MB
Description	1W Ultra-Miniature SMT DC/DC Converters
Datasheet	ML105D-09E Datasheet
Note	This datasheet PDF includes multiple part numbers: ML105D-09E, ML103S-03E. Please refer to the document for exact specifications by model.

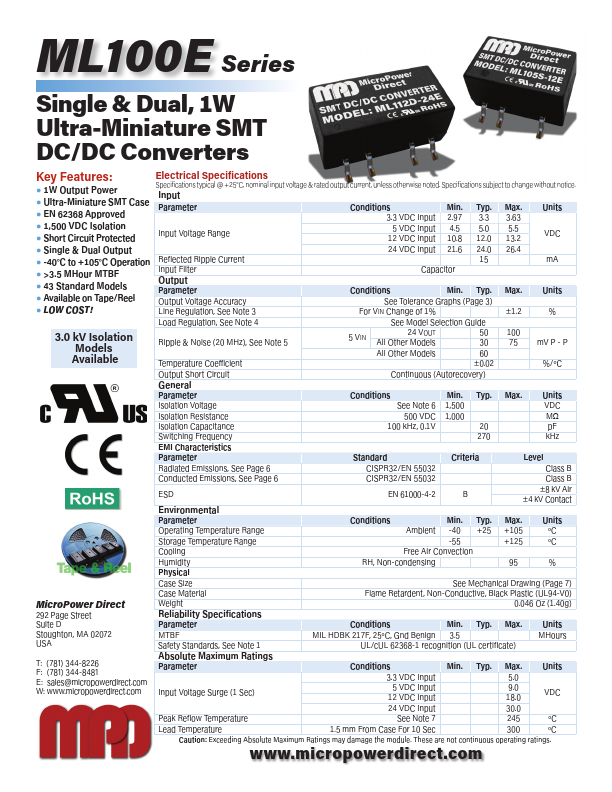

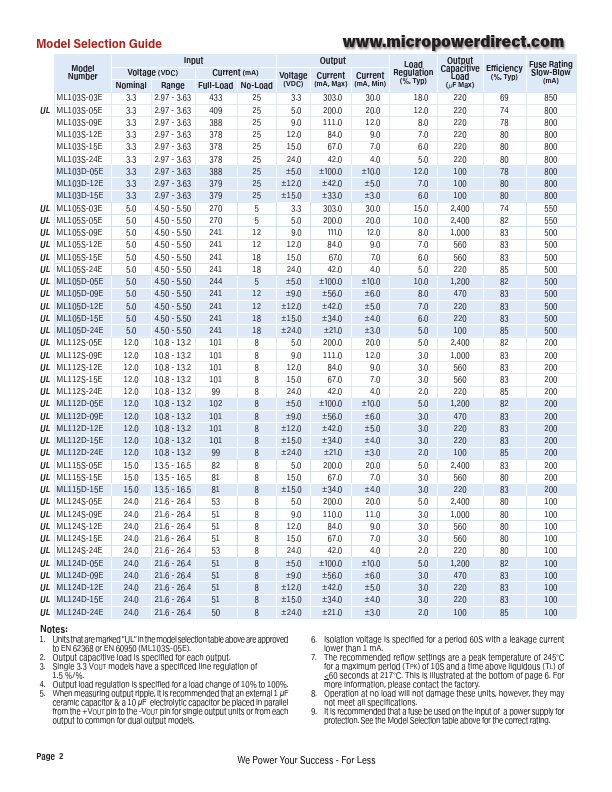

Additional preview pages of the ML105D-09E datasheet.

Electrical Specifications.
1W Output Power.
Ultra-Miniature SMT Case.
EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63.
1,500 VDC Isolation.
Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC.
Single & Dual Outp.
