MD124S - Miniature SIP DC/DC Converters

Product Overview

MicroPower Direct

Part number	MD124S
Manufacturer	MicroPower Direct
File Size	2.76 MB
Description	Miniature SIP DC/DC Converters
Datasheet	MD124S Datasheet
Note	This datasheet PDF includes multiple part numbers: MD124S, MD103S. Please refer to the document for exact specifications by model.

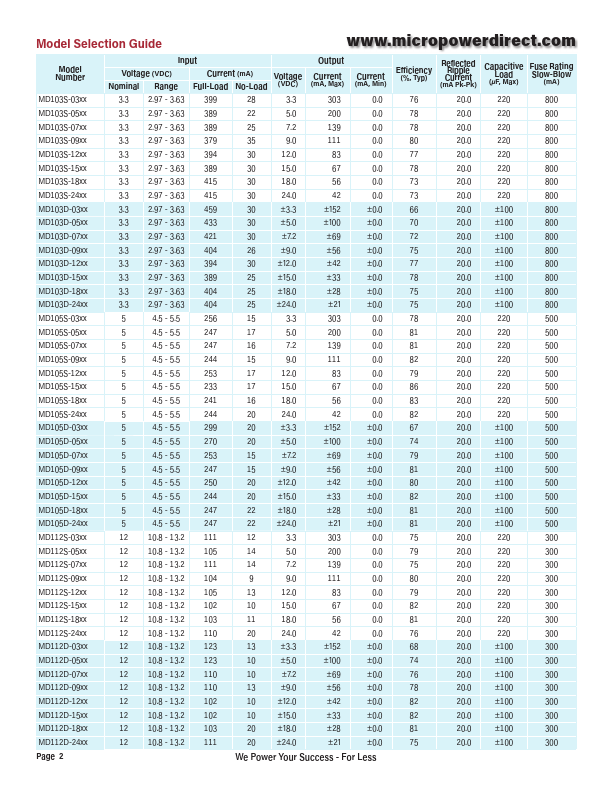

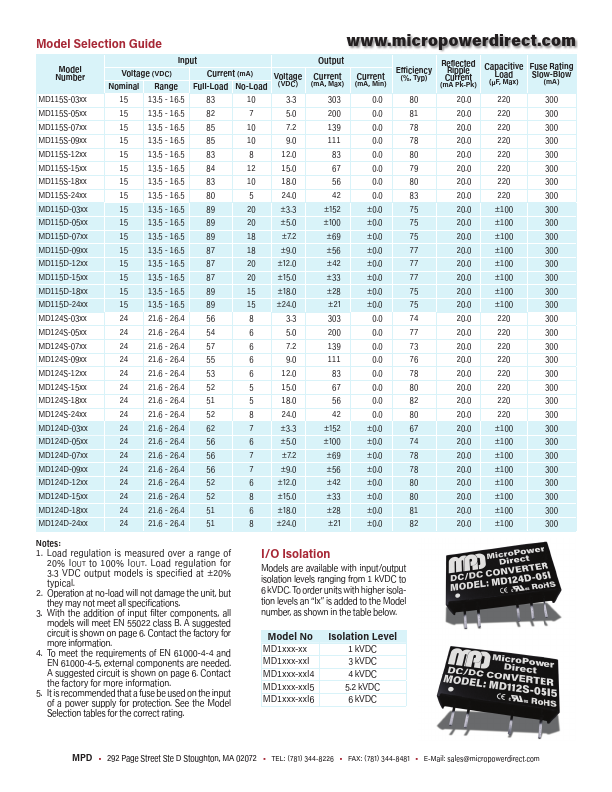

Additional preview pages of the MD124S datasheet.

1W Output Power.
1 kV to 6kV Isolation.
80 Standard Models.
Single & Dual Outputs Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 Input Voltage Range 12 VDC Input 10.8 12.0 13.2 VDC 15 VDC Input 13.5 15.0 16.5.
Miniature SIP Case.
