BAS40HQ - 250mW 40V Schottky Barrier Diode

Features

  • Halogen Free. "Green" Device (Note 1).
  • Fully Automotive Qualified to AEC-Q101.
  • Low Forward Voltage and Reverse Recovery Characteristics.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.

📥 Download Datasheet

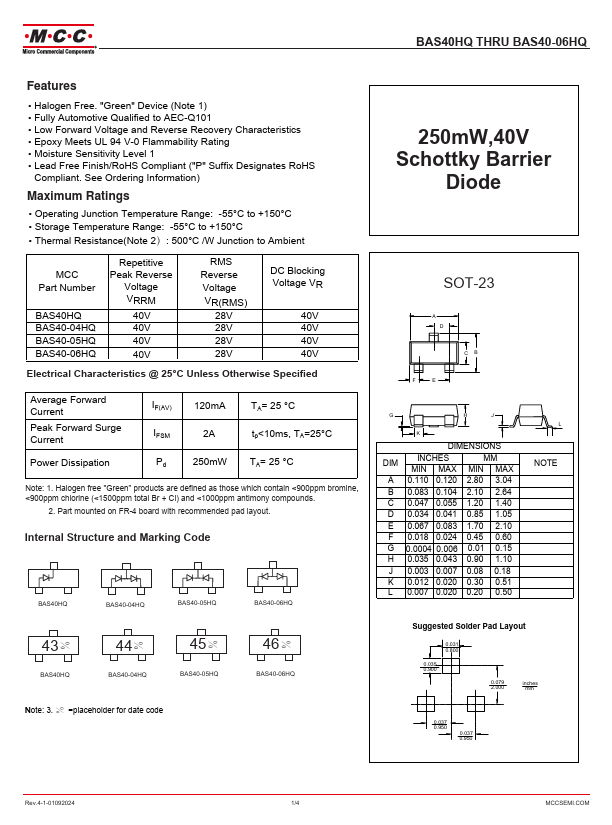

Datasheet preview – BAS40HQ

📁 Similar Datasheet

  • BAS40H - General-purpose Schottky diodes (nexperia)
  • BAS40H - General-purpose Schottky diode (NXP)
  • BAS40HM - Schottky Barrier Diode (ROHM)
  • BAS40HMFH - Schottky Barrier Diode (ROHM)
  • BAS40 - Surface Mount Barrier Diode (Multicomp)
  • BAS40 - SURFACE-MOUNT SCHOTTKY BARRIER DIODE (DIODES)
  • BAS40 - General-purpose Schottky diodes (nexperia)
  • BAS40 - SCHOTTKY BARRIER DIODES (UTC)
  • BAS40 - Multiple Terminals SMD Schottky Diodes (TAITRON)
  • BAS40 - SURFACE MOUNT SCHOTTKY DIODES (Power Silicon)
Other Datasheets by Micro Commercial Components

Full PDF Text Transcription

Click to expand full text
BAS40HQ THRU BAS40-06HQ Features • Halogen Free. "Green" Device (Note 1) • Fully Automotive Qualified to AEC-Q101 • Low Forward Voltage and Reverse Recovery Characteristics • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant.
