MX25L3236F - FLASH MEMORY

Product Overview

Macronix

Datasheet Details

Part number	MX25L3236F
Manufacturer	Macronix
File Size	916.70 KB
Description	FLASH MEMORY
Datasheet	MX25L3236F Datasheet
Additional preview pages of the MX25L3236F datasheet.

Product details

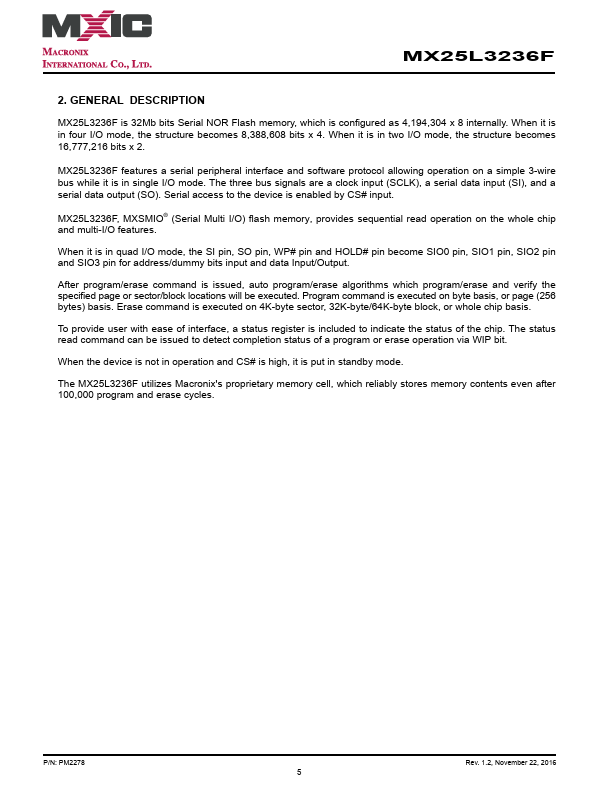

Description

5 3. PIN CONFIGURATION 6 4. PIN DESCRIPTION 6 5. BLOCK DIAGRAM 7 6. DATA PROTECTION 8 Table 1. Protected Area Sizes9 Table 2. 4K-bit Secured OTP Definition10 7. MEMORY ORGANIZATION11 Table 3. Memory Organization 11 8. DEVICE OPERATION 12 9. HOLD FEATURE 13 10. COMMAND DESCRIPTION 15 Table 4. Command Sets15 10-1. Write Enable (WREN)18 10-2. Write Disable (WRDI)19 10-3. Read Identification (RDID)20 10-4. Read Status Register (RDSR)21 10-5. Read Configuration Register (RDCR)22 Table 5. Status Regis

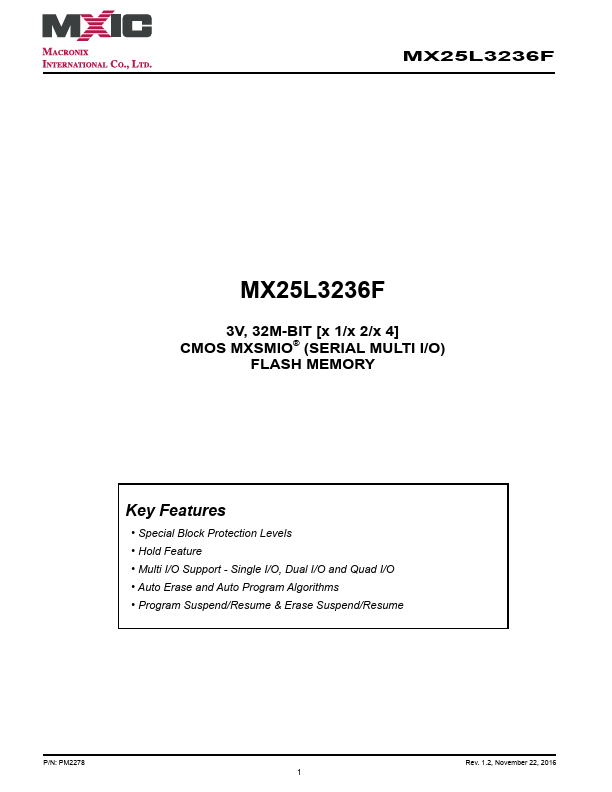

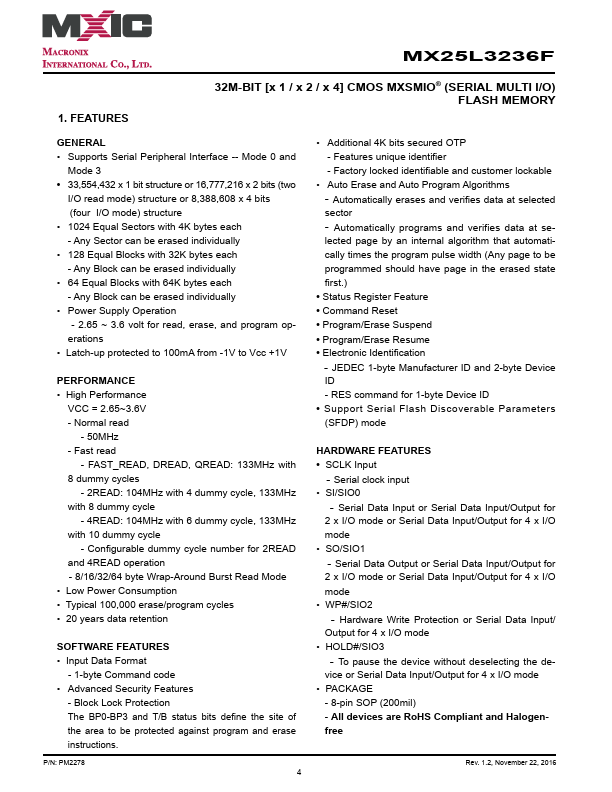

Features

Special Block Protection Levels.
Hold Feature.
Multi I/O Support - Single I/O, Dual I/O and Quad I/O.
Auto Erase and Auto Program Algorithms.
Program Suspend/Resume & Erase Suspend/Resume P/N: PM2278 Rev. 1.2, November 22, 2016 1 MX25L3236F Contents 1.
