MPQ2166GD - Synchronous Buck

Download the MPQ2166GD datasheet PDF. This datasheet also covers the MPQ2166 variant, as both devices belong to the same synchronous buck family and are provided as variant models within a single manufacturer datasheet.

General Description

The MPQ2166 is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V.

Key Features

  • include cycle-by-cycle current limit and thermal shutdown. The MPQ2166 requires a minimum number of readily available, standard, external components and is available in QFN-18 (2mmx3mm) and QFN-18 (2.5mmx3.5mm) packages. MPQ2166 6V, Dual 2A/2A or 3A/1A, Low Quiescent Current, Synchronous Buck with PG and SS AEC-Q100 Qualified.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MPQ2166-MPS.pdf) that lists specifications for multiple related part numbers.

Other Datasheets by Monolithic Power Systems

Part Number Description
MPQ2166GRH Synchronous Buck
MPQ2166 Synchronous Buck
MPQ2166A Synchronous Buck Regulator
MPQ2167 Frequency Programmable Buck Converter
MPQ2167A Frequency-Configurable Synchoronous Buck Converter
MPQ2167GD Frequency Programmable Buck Converter
MPQ2169 Synchronous Buck
MPQ2169B Synchronous Buck
MPQ2122 SYNC Buck Regulator
MPQ2122GJ SYNC Buck Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

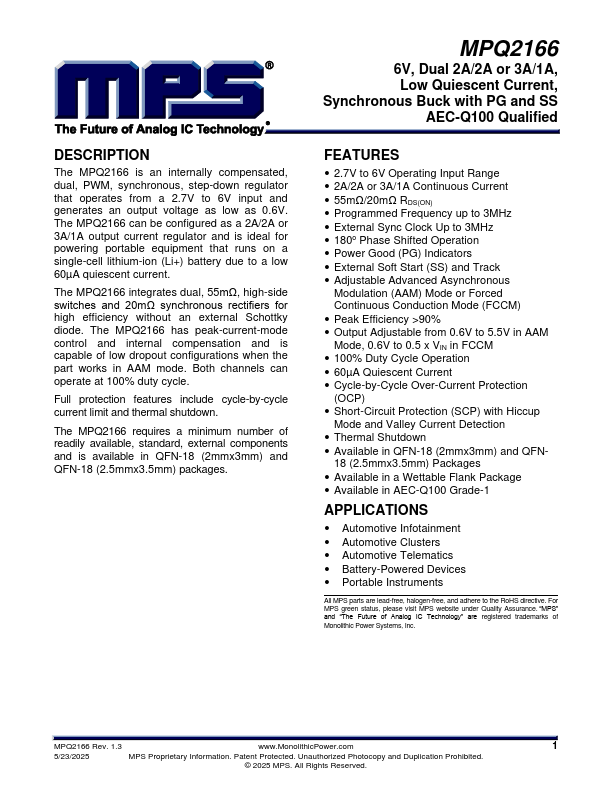

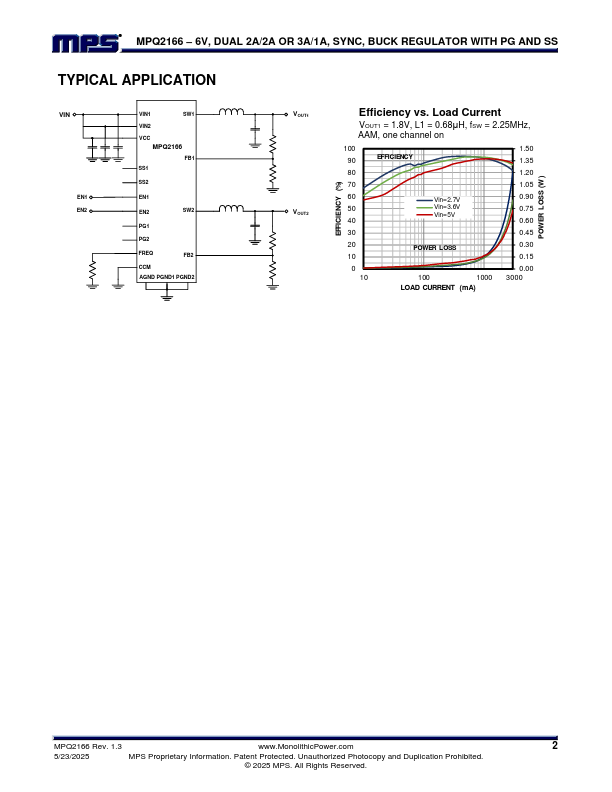

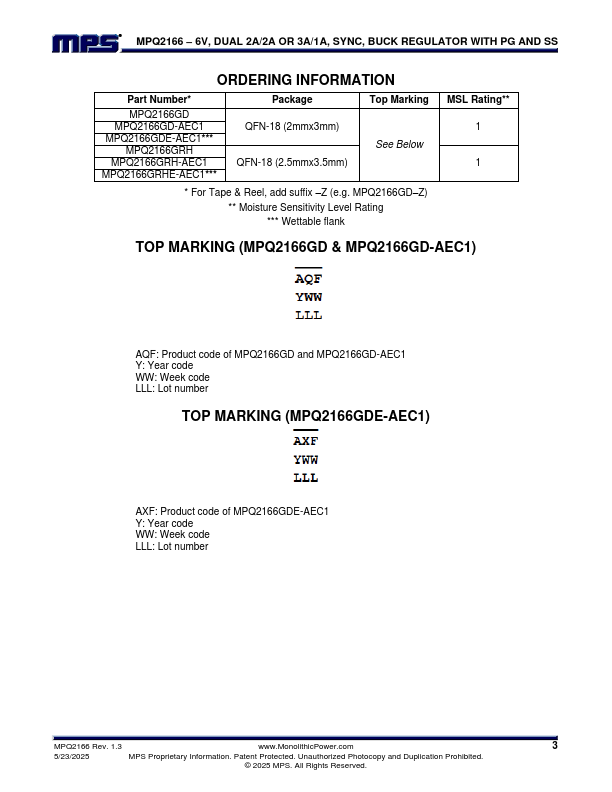

DESCRIPTION The MPQ2166 is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V. The MPQ2166 can be configured as a 2A/2A or 3A/1A output current regulator and is ideal for powering portable equipment that runs on a single-cell lithium-ion (Li+) battery due to a low 60µA quiescent current. The MPQ2166 integrates dual, 55mΩ, high-side switches and 20mΩ synchronous rectifiers for high efficiency without an external Schottky diode. The MPQ2166 has peak-current-mode control and internal compensation and is capable of low dropout configurations when the part works in AAM mode. Both channels can operate at 100% duty cycle.
