B2412S-1WR3 - DC/DC Converter

Product Overview

MORNSUN

📥 Download Datasheet

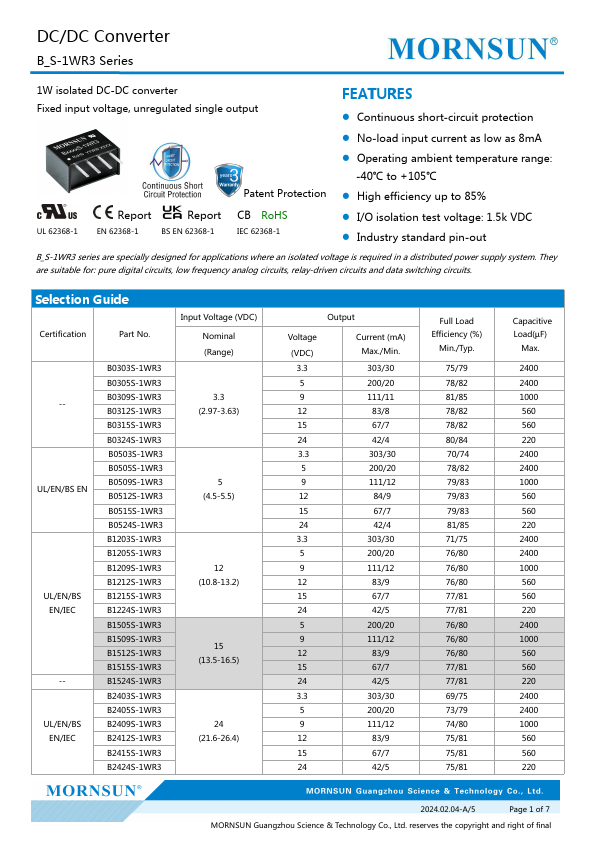

B2412S-1WR3 DC/DC Converter by MORNSUN - Datasheet Preview — Datasheet preview – B2412S-1WR3

Datasheet Details

Part number	B2412S-1WR3
Manufacturer	MORNSUN
File Size	2.09 MB
Description	DC/DC Converter
Datasheet	B2412S-1WR3 Datasheet
Note	This datasheet PDF includes multiple part numbers: B2412S-1WR3, B2403S-1WR3. Please refer to the document for exact specifications by model.

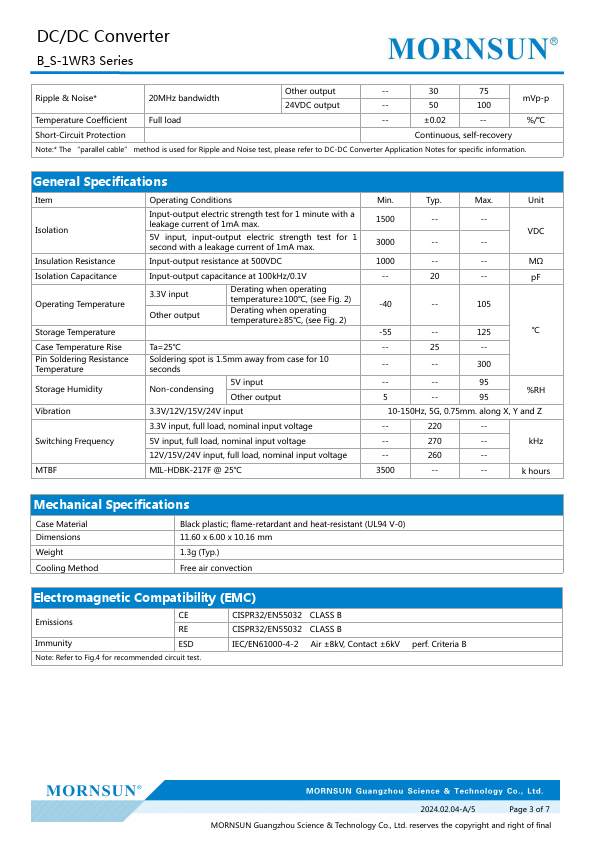

Additional preview pages of the B2412S-1WR3 datasheet.

Product details

Description

of reflected ripple current test method.

Features

Continuous short-circuit protection.
No-load input current as low as 8mA.
Operating ambient temperature range: -40℃ to +105℃ Patent Protection.
High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1.
I/O isolation test voltage: 1.5k VDC.
Industry standard pin-out B_S-1WR3 series are specially designed for.
