2SB1073 - PNP Transistor

Key Features

Low collector-emitter saturation voltage VCE(sat).
Large peak collector current IC 2SB1073 Transistor (PNP) X:Rank 2SB1073：IQ IQ BCE 2SB1073：IR IR BCE SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit -30 V -20.

2SB1073 pnp transistor by MLSM - Datasheet Preview

Datasheet Details

Part number	2SB1073
Manufacturer	MLSM
File Size	561.05 KB
Description	PNP Transistor
Datasheet	2SB1073 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SB1073	PNP Transistor	Panasonic Semiconductor
2SB1073	PNP Transistors	Kexin
2SB1073	PNP Transistor	GME
2SB1073	PNP Transistor	WILLAS
2SB1073-Q	Silicon PNP Transistor	MCC

Other Datasheets by MLSM

Part Number	Description
2SB1119	PNP Transistor

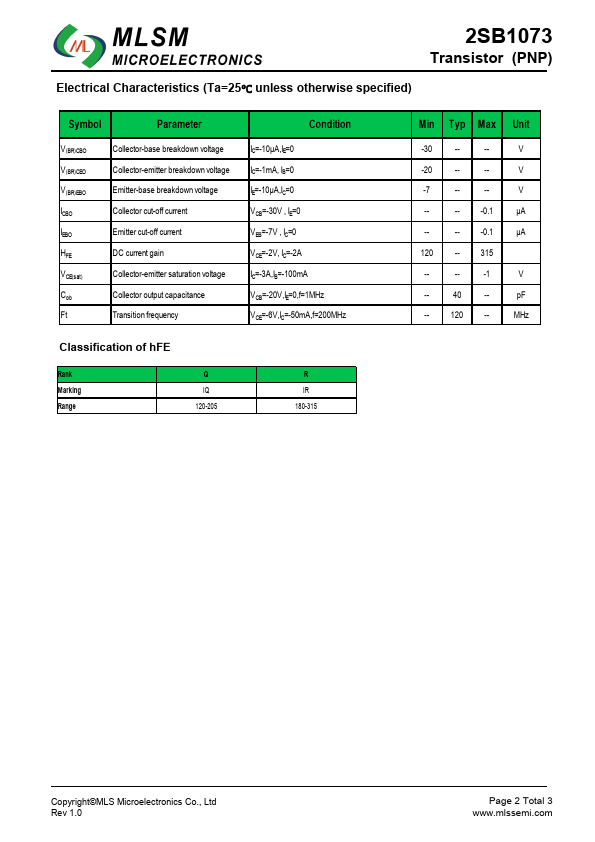

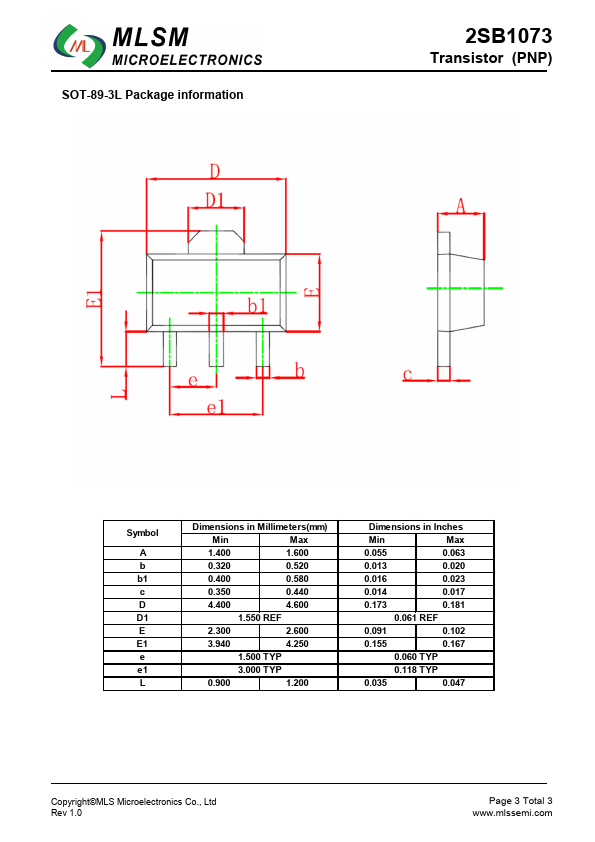

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Features • Low collector-emitter saturation voltage VCE(sat) • Large peak collector current IC 2SB1073 Transistor (PNP) X:Rank 2SB1073：IQ IQ BCE 2SB1073：IR IR BCE SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit -30 V -20 V -7 V -4 A 0.5 W -55~+150 °C Ordering Information (Example) Type 2SB1073 Package SOT-89-3L Marking IR/IQ Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 www.
