2SA2018 - PNP Transistor

Key Features

A collector current is large.
Low VCE(sat). VCE(sat)≤250mV at IC =-200mA / IB =-10mA 2SA2018 Transistor (PNP) C BW B E Marking and pin assignment SOT-523 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit -15 V -12 V.

2SA2018 pnp transistor by MLSM - Datasheet Preview

Datasheet Details

Part number	2SA2018
Manufacturer	MLSM
File Size	874.46 KB
Description	PNP Transistor
Datasheet	2SA2018 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SA2018	LOW FREQUENCY TRANSISTOR	GME
2SA2018	Low frequency transistor	Rohm
2SA2018	PNP Transistors	Kexin
2SA2018F	PNP Transistor	SeCoS
2SA2018F-C	PNP Transistor	SeCoS

Other Datasheets by MLSM

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

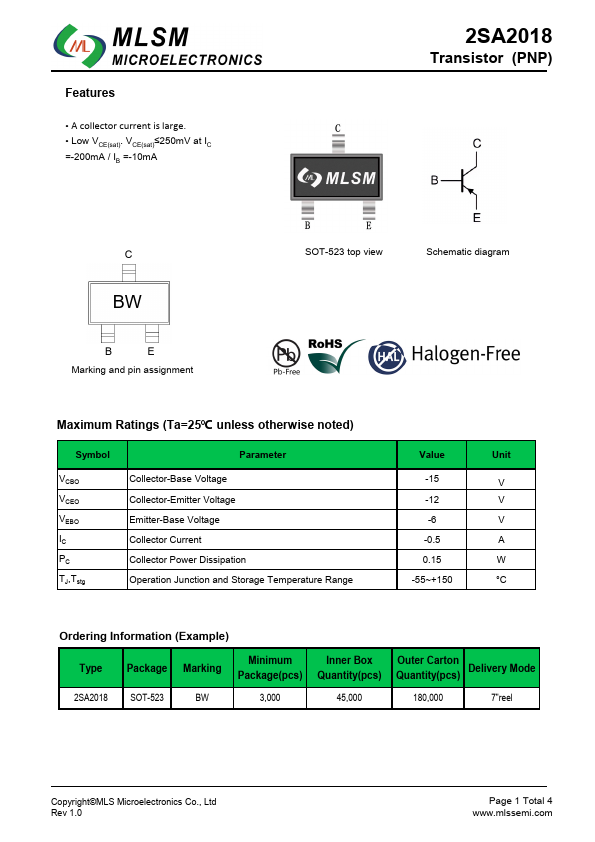

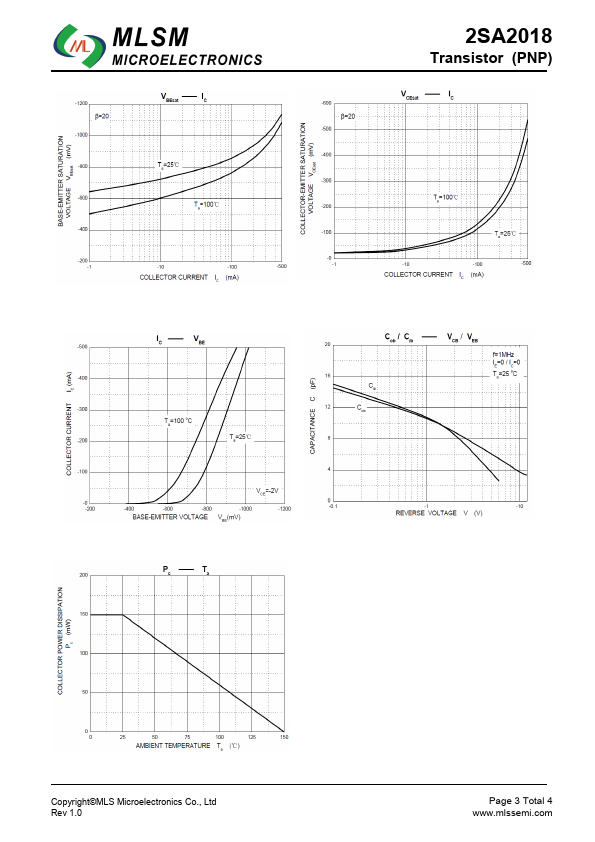

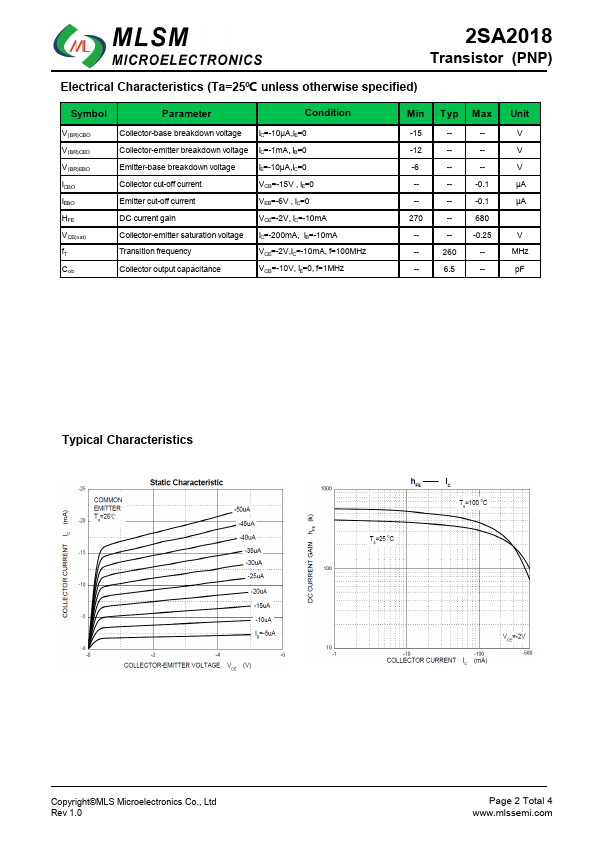

Features • A collector current is large. • Low VCE(sat). VCE(sat)≤250mV at IC =-200mA / IB =-10mA 2SA2018 Transistor (PNP) C BW B E Marking and pin assignment SOT-523 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit -15 V -12 V -6 V -0.5 A 0.15 W -55~+150 °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) Inner Box Quantity(pcs) Outer Carton Quantity(pcs) Delivery Mode 2SA2018 SOT-523 BW 3,000 45,000 180,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 www.
