Description
RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.
Features
- s
Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage
/ Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.

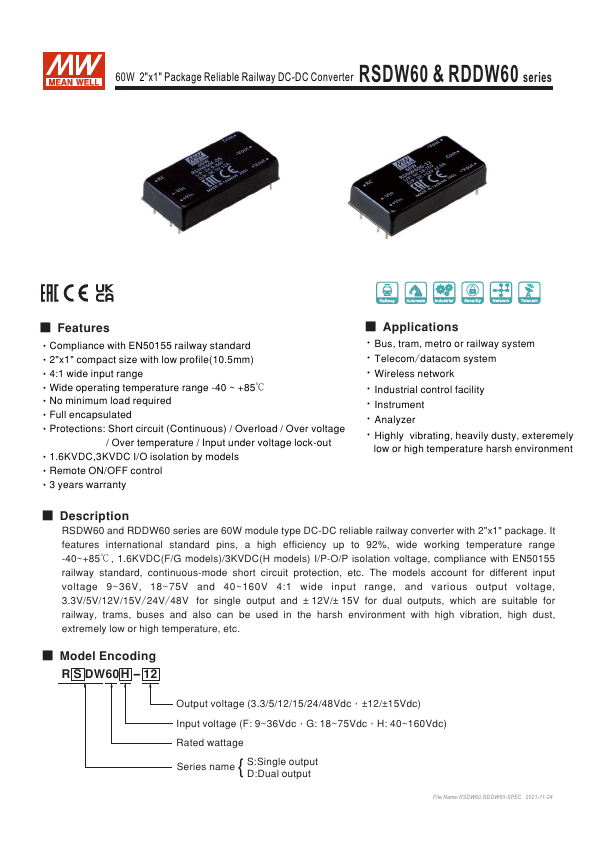

RDDW60F-12 Datasheet
