US1Q - 1Amp 1200V Ultra Fast Rectifier

Description

C 0.002 0.008 0.

Features

  • Halogen Free. "Green" Device (Note 1).
  • Glass Passivated Chip Junction.
  • Super Fast Recovery Time for High Efficiency.
  • For Surface Mount.

📥 Download Datasheet

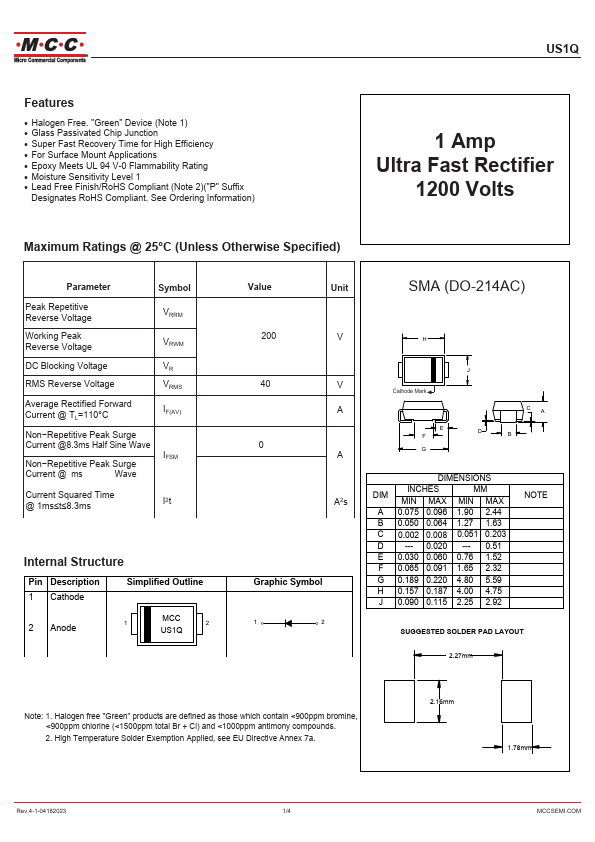

Datasheet preview – US1Q

📁 Similar Datasheet

  • US1 - SMA ultra fast low-loss controlled avalanche rectifiers (NXP)
  • US1000FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US1001FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US1002FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US1004FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US1006FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US1008FL - 1.0A SURFACE MOUNT GLASS PASSIVATED ULTRAFAST DIODE (WON-TOP)
  • US100A - RECTIFIERS ASSEMBLIES (Microsemi Corporation)
  • US1010 - 1A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR (UNISEM)
  • US1010-25 - 1A LOW DROPOUT POSITIVE FIXED OUTPUT REGULATOR (UNISEM)
Other Datasheets by MCC
  • US1A - 1 Amp Ultra Fast Rectifier
  • US1AFL - Ultra Fast Rectifier
  • US1B - 1 Amp Ultra Fast Rectifier
  • US1BFL - Ultra Fast Rectifier
  • US1C - 1 Amp Ultra Fast Rectifier
  • US1CFL - Ultra Fast Rectifier
  • US1D - 1 Amp Ultra Fast Rectifier
  • US1DFL - Ultra Fast Rectifier

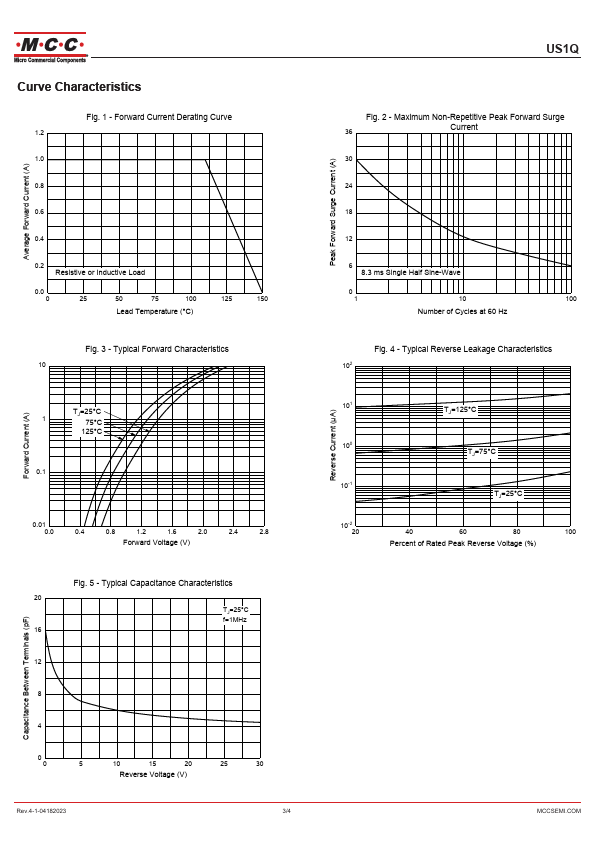

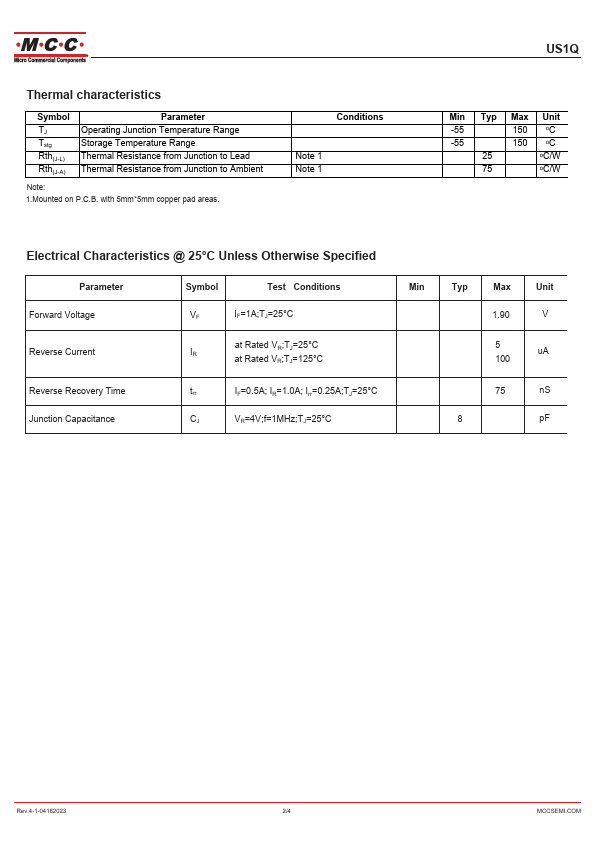

Full PDF Text Transcription

Click to expand full text
US1Q Features • Halogen Free. "Green" Device (Note 1) • Glass Passivated Chip Junction • Super Fast Recovery Time for High Efficiency • For Surface Mount Applications • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 1 Amp Ultra Fast Rectifier 1200 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Symbol Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking Voltage RMS Reverse Voltage VR VRMS Average Rectified Forward Current @ TL=110°C IF(AV) Non−Repetitive Peak Surge Current @8.3ms Half Sine Wave IFSM Non−Repetitive Peak Surge Current @ms 6TXDUH Wave Current Squared Time @ 1ms≤t≤8.
