UM6K1NA - Dual N-Channel MOSFET

Features

  • High Density Cell Design for Low RDS(ON).
  • Moisture Sensitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) UM6K1NA '8$/ 1&hannel 026)(7 Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 416°C/.

📥 Download Datasheet

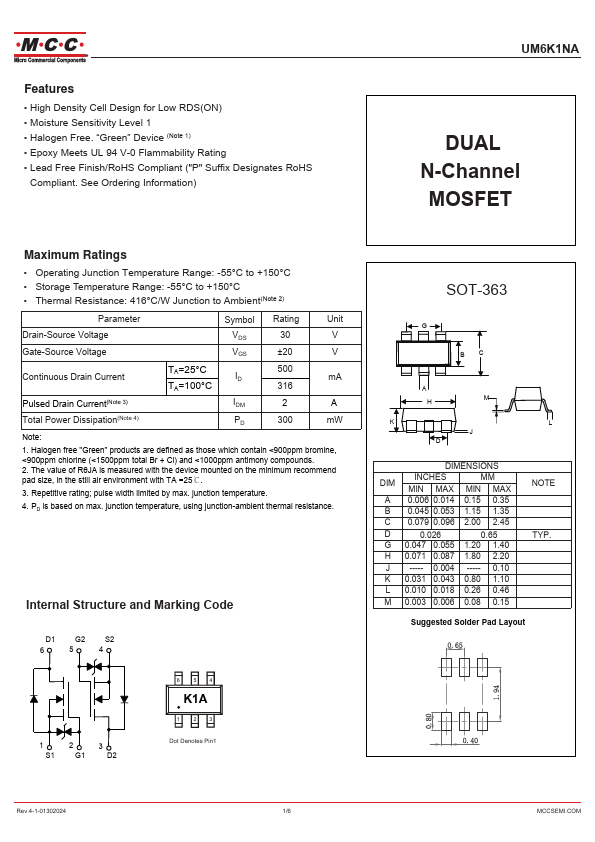

Datasheet preview – UM6K1NA

📁 Similar Datasheet

  • UM6K1N - Dual N-channel MOSFET (JCET)
  • UM6K1N - SILICON N-CHANNEL MOSFET (UTC)
  • UM6K1N - 2.5V Drive Nch+Nch MOSFET (Rohm)
  • UM6K1 - Small switching (30V/ 0.1A) (Rohm)
  • UM6K31N - MOSFET (ROHM)
  • UM6K31N - SILICON N-CHANNEL MOSFET TRANSISTOR (UTC)
  • UM6K31NFHA - Nch+Nch MOSFET (ROHM)
  • UM6K34N - Nch + Nch 50V 200mA Small Signal MOSFET (ROHM)
  • UM6 - Ultra-Miniature Orientation Sensor (CH Robotics)
  • UM6000 - POWER PIN DIODES (Microsemi)
Other Datasheets by MCC
  • UM6K1N - Dual N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
Features • High Density Cell Design for Low RDS(ON) • Moisture Sensitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) UM6K1NA '8$/ 1&hannel 026)(7 Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 416°C/W Junction to Ambient(Note 2) Parameter Symbol Rating Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage VGS ±20 V Continuous Drain Current TA=25°C ID 500 mA TA=100°C 316 Pulsed Drain Current(Note 3) IDM 2 A Total Power Dissipation(Note 4) PD 300 mW Note: 1.
