SMBJ5.0AQ - 600 Watt TVS

Description

Uni-directional Simplified outline MCC 1 XXXX 2 YYWW Cathode Mark Graphic symbol Cathode Anode （1） （2） Bi-directional 1 XMXCXCX 2 YYWW （1） （2） 600 Watt TVS 5.0 to 440 Volts SMB (DO-214AA) (LEAD FRAME) H J Cathode Mark D A C E F B G DIMENSIONS DIM INCHES MIN MAX

Features

  • Fully Automotive Qualified to AEC-Q101.
  • For Surface Mount.

📥 Download Datasheet

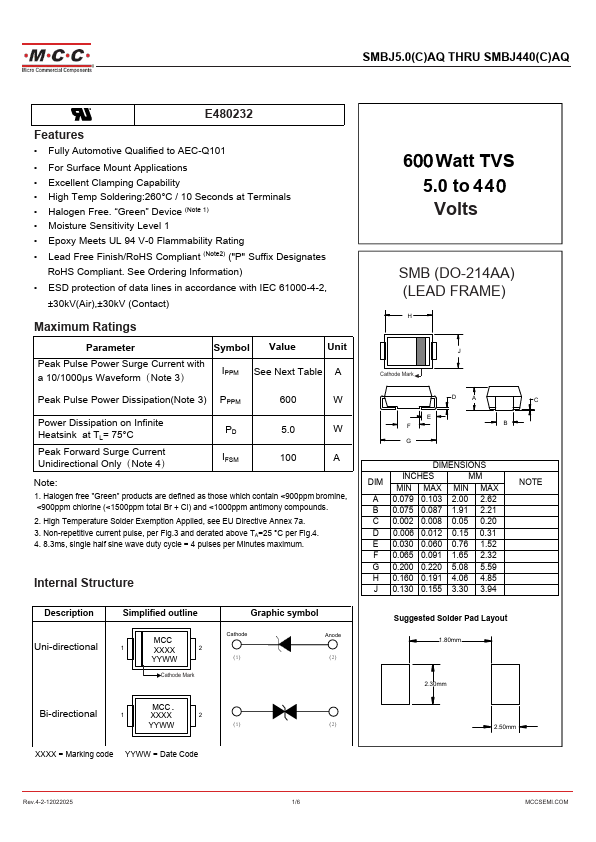

Datasheet preview – SMBJ5.0AQ

📁 Similar Datasheet

  • SMBJ5.0AQ - 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR (DIODES)
  • SMBJ5.0A - TRANSIENT VOLTAGE SUPPRESSOR (AiT Semiconductor)
  • SMBJ5.0A - Transient Voltage Suppressor (Multicomp)
  • SMBJ5.0A - TVS Diode (BOURNS)
  • SMBJ5.0A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • SMBJ5.0A - Transient Voltage Suppressors (Semiware)
  • SMBJ5.0A - Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)
  • SMBJ5.0A - Transient Voltage Suppressor (TAITRON)
  • SMBJ5.0A - Transient Voltage Suppressor (Microsemi)
  • SMBJ5.0A - 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Diodes)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
SMBJ5.0(C)AQ THRU SMBJ440(C)AQ E480232 Features • Fully Automotive Qualified to AEC-Q101 • For Surface Mount Applications • Excellent Clamping Capability • High Temp Soldering:260°C / 10 Seconds at Terminals • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant.
