SK34AFLQ - 3 Amp Surface Mount Schottky Rectifier

Description

1 Cathode 2 Anode Simplified Outline MCC 1 XXXX 2 YYWW XXXX = Marking Code YYWW = Date Code Graphic Symbol 1 2 DO-221AC(SMA-FL) D Cathode Mark B A L E1 E C L DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.035 0.049 0.90 1.25 B 0.049 0.065 1.25 1.65 C 0.004 0.016 0.10 0.40 D 0.0

Features

  • Halogen Free. "Green" Device (Note 1).
  • Fully Automotive Qualified to AEC-Q101.
  • Low Profile Package.
  • High Surge Capability.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 3 Amp Surface Mount Schottky Rectifier 40 to 60 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive.

📥 Download Datasheet

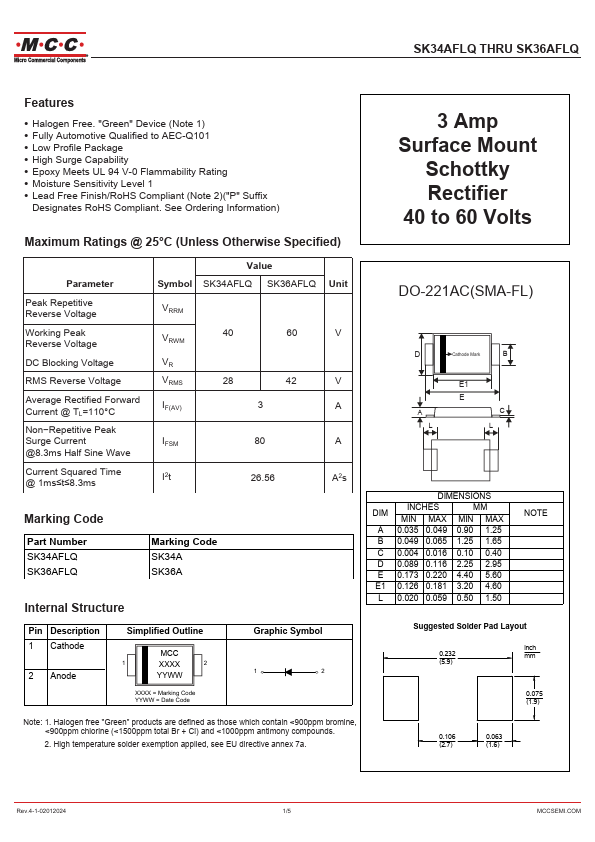

Datasheet preview – SK34AFLQ

📁 Similar Datasheet

  • SK34A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (EIC)
  • SK34A - 3A Surface Mount Schottky Barrier Rectifiers (CITC)
  • SK34A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (SMG)
  • SK34A - Schottky Barrier Surface-Mount Rectifier (Taiwan Semiconductor)
  • SK34A - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • SK34A - Surface Mount Schottky Barrier Rectifiers (LGE)
  • SK34A - SCHOTTKY RECTIFIER (SMC Diode)
  • SK34A-LT - 3 Amp Schottky Rectifier (Micro Commercial Components)
  • SK34A-T - Schottky Barrier Surface Mount Rectifier (Taiwan Semiconductor)
  • SK34AS - 3A Surface Mount Schottky Barrier Rectifiers (CITC)
Other Datasheets by MCC
  • SK34AFL - Schottky Rectifier
  • SK34A - 3 Amp Schottky Rectifier
  • SK34A-L - Schottky Rectifier
  • SK34 - 3 Amp Schottky Rectifier
  • SK345AFL - Schottky Rectifier
  • SK34B - 3 Amp Schottky Rectifier
  • SK34B-L - Schottky Rectifier
  • SK34BG - (SK32BG - SK310BG) Schottky Rectifier

Full PDF Text Transcription

Click to expand full text

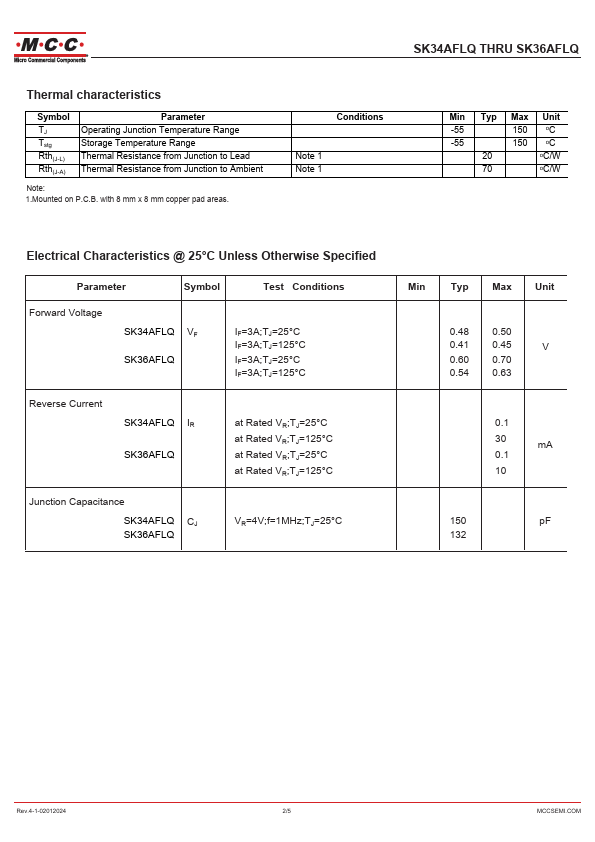

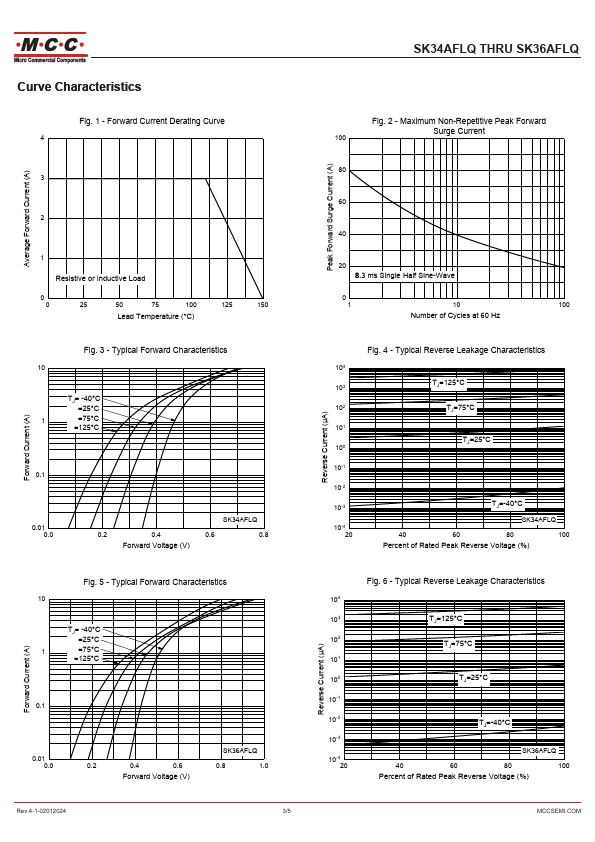

SK34AFLQ THRU SK36AFLQ Features • Halogen Free. "Green" Device (Note 1) • Fully Automotive Qualified to AEC-Q101 • Low Profile Package • High Surge Capability • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 3 Amp Surface Mount Schottky Rectifier 40 to 60 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Forward Current @ TL=110°C Non−Repetitive Peak Surge Current @8.3ms Half Sine Wave Current Squared Time @ 1ms≤t≤8.
