SI01N03K - N-Channel MOSFET

Features

  • ESD Protected Up To 2KV (HBM).
  • Trench LV MOSFET Technology.
  • Moisture Sensitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 125°C/W Junc.

📥 Download Datasheet

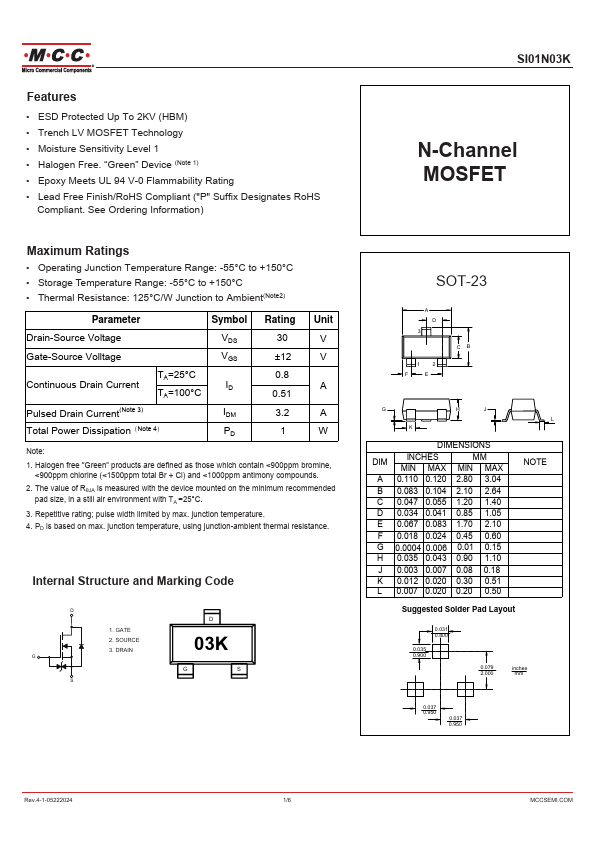

Datasheet preview – SI01N03K

📁 Similar Datasheet

  • SI0310 - GLOBAL SERIAL INTERFACE DIRECT ACCESS ARRANGEMENT (Silicon Laboratories)
  • SI0318 - GLOBAL SERIAL INTERFACE DIRECT ACCESS ARRANGEMENT (Silicon Laboratories)
  • SI0319 - GLOBAL SERIAL INTERFACE DIRECT ACCESS ARRANGEMENT (Silicon Laboratories)
  • SI0356 - GLOBAL SERIAL INTERFACE DIRECT ACCESS ARRANGEMENT (Silicon Laboratories)
Other Datasheets by MCC

    Full PDF Text Transcription

    Click to expand full text
    Features • ESD Protected Up To 2KV (HBM) • Trench LV MOSFET Technology • Moisture Sensitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 125°C/W Junction to Ambient(Note2) Parameter Symbol Rating Unit Drain-Source Voltage VDS Gate-Source Volltage VGS TA=25°C Continuous Drain Current TA=100°C ID Pulsed Drain Current(Note 3) IDM Total Power Dissipation（Note 4） PD 30 V ±12 V 0.8 A 0.51 3.2 A 1 W Note: 1.
