S5JL - 5 Amp General Purpose Rectifier

Description

Note: 1.

Features

  • Halogen Free. “Green” Device (Note 1).
  • For Surface Mount.

📥 Download Datasheet

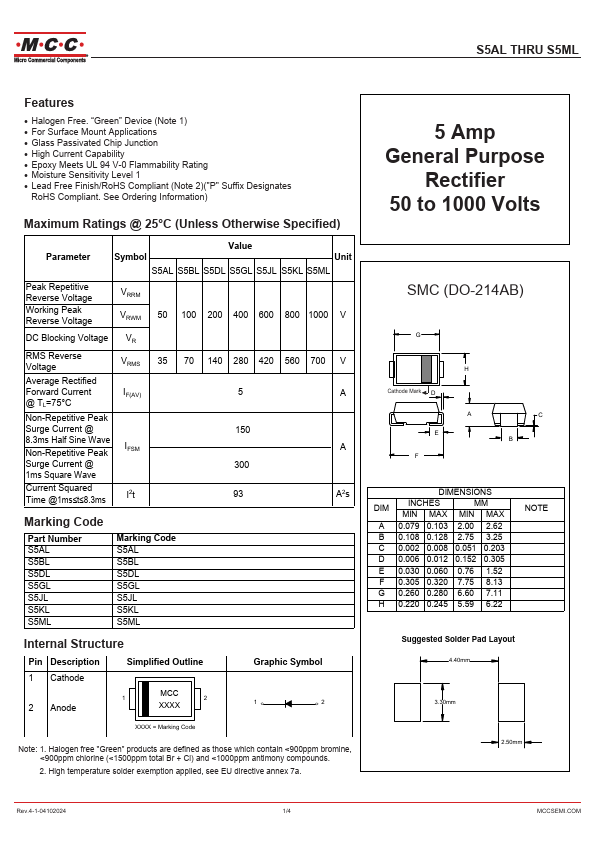

Datasheet preview – S5JL

📁 Similar Datasheet

  • S5J - Standard Recovery SMD Rectifier Diodes (Diotec)
  • S5J - 5.0A Surface Mount Rectifier (TAITRON)
  • S5J - 5 Amp Silicon Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • S5J - SURFACE MOUNT RECTIFIER (PAN JIT)
  • S5J - Surface Mount Rectifiers (JGD)
  • S5J - 5A SURFACE MOUNT RECTIFIER (TIPTEK)
  • S5J - SURFACE MOUNT RECTIFIER DIODES (Sunmate)
  • S5J - Surface Mount General Purpose Silicon Rectifier (MIC)
  • S5J - Surface Mount General Rectifiers (SEMTECH)
  • S5J - Standard silicon rectifier diodes (Semikron)
Other Datasheets by MCC

    Full PDF Text Transcription

    Click to expand full text

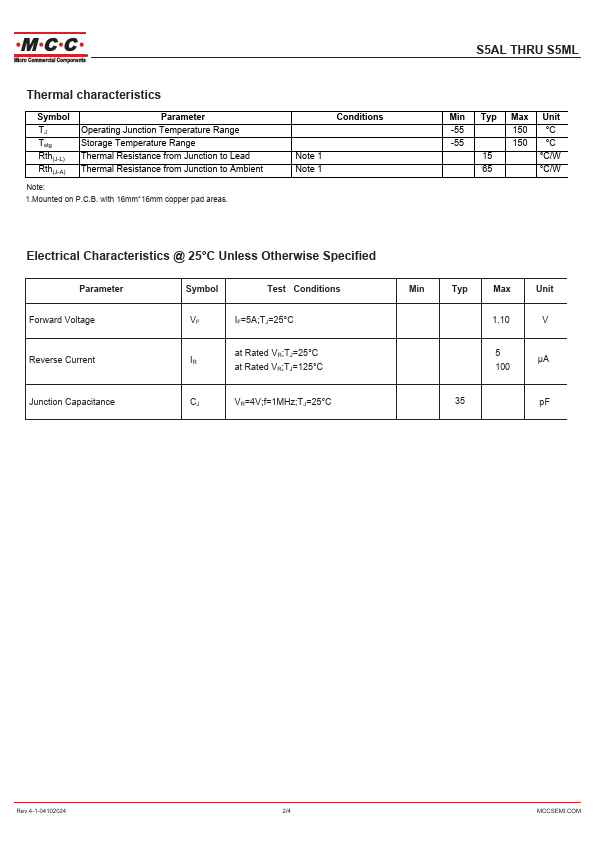

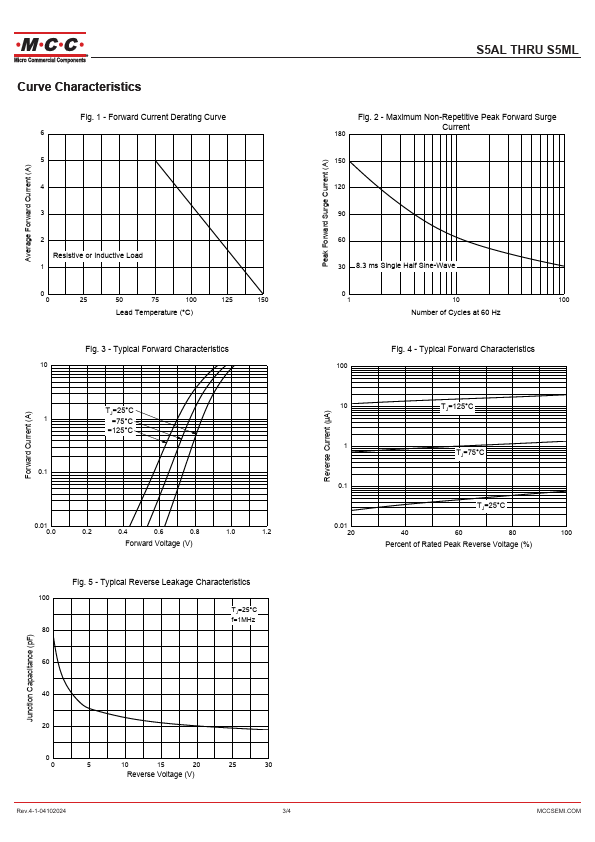

    S5AL THRU S5ML Features • Halogen Free. “Green” Device (Note 1) • For Surface Mount Applications • Glass Passivated Chip Junction • High Current Capability • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Value Symbol Unit S5AL S5BL S5DL S5GL S5JL S5KL S5ML Peak Repetitive Reverse Voltage Working Peak Reverse Voltage VRRM VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Average Rectified Forward Current IF(AV) 5 A @ TL=75°C Non-Repetitive Peak Surge Current @ 8.
