MCU09N20 - N-CHANNEL MOSFET

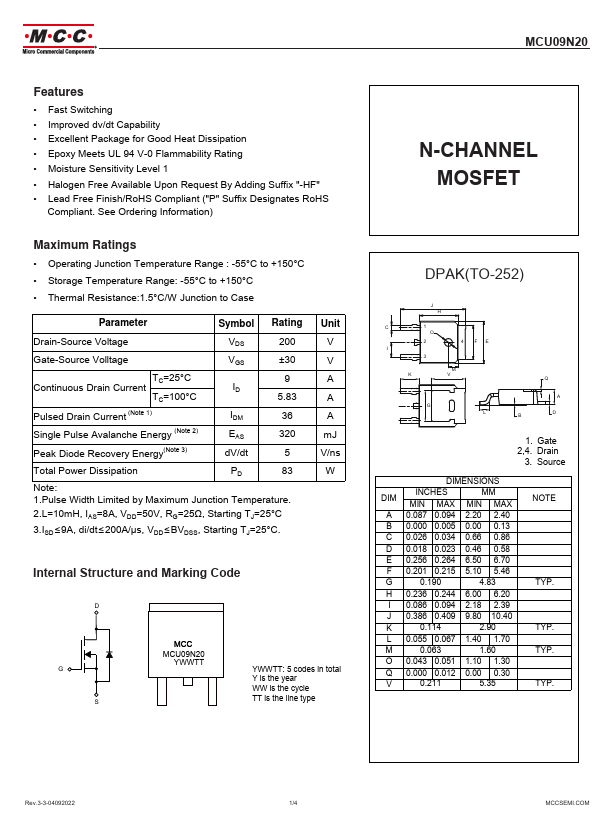

Features

  • Fast Switching.
  • Improved dv/dt Capability.
  • Excellent Package for Good Heat Dissipation.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range : -55°C to +150°C.
  • Storage Temperature Range:.

📥 Download Datasheet

Datasheet preview – MCU09N20

📁 Similar Datasheet

  • MCU0805 - Professional Thin Film Chip Resistors (Vishay)
  • MCU0805 - Precision flat chip resistor (BC)
  • MCU0805AT - High Stability Thin Film Flat Chip Resistors (Vishay)
  • MCU11E9 - 8-BIT MICROCONTROLLER (Toshiba)
  • MCU2600 - Clock Generator (Micronas)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

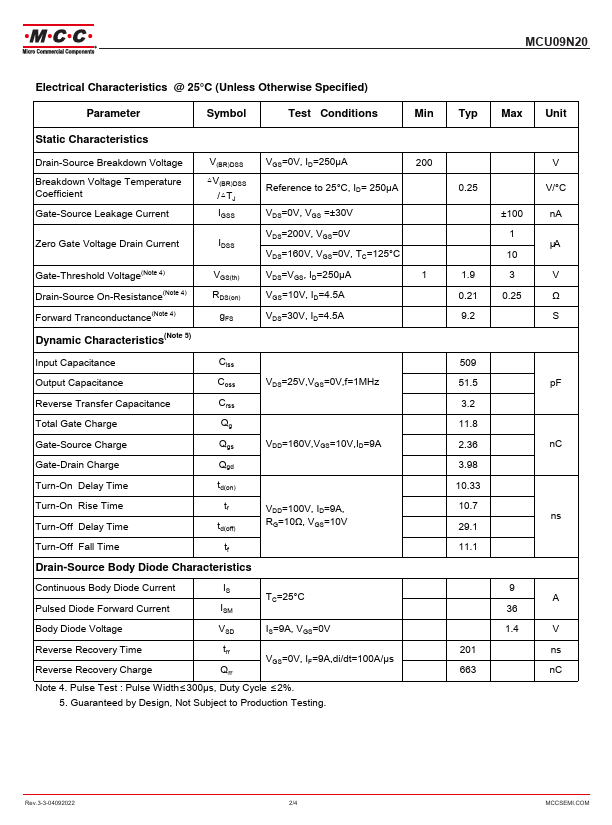

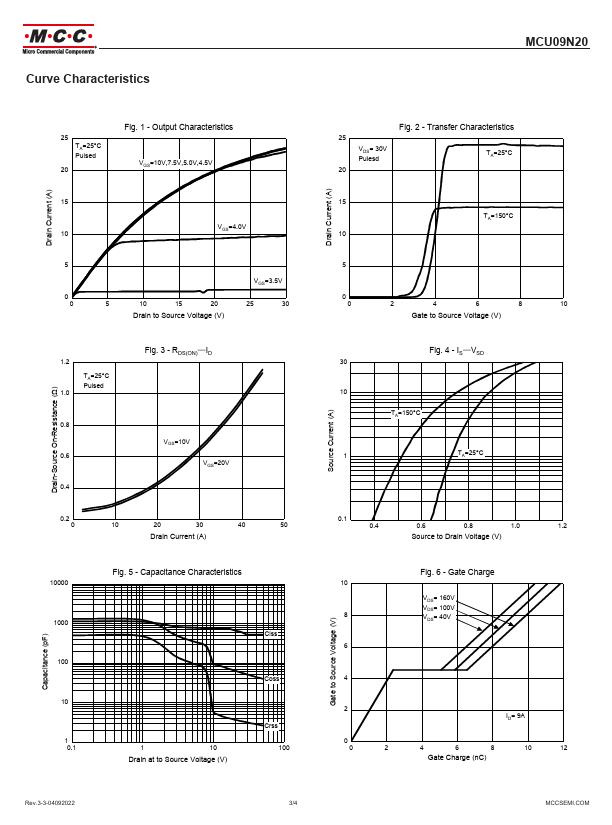

MCU09N20 Features • Fast Switching • Improved dv/dt Capability • Excellent Package for Good Heat Dissipation • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range : -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance:1.5°C/W Junction to Case Parameter Symbol Rating Drain-Source Voltage Gate-Source Volltage TC=25°C Continuous Drain Current TC=100°C Pulsed Drain Current (Note 1) Single Pulse Avalanche Energy (Note 2) Peak Diode Recovery Energy(Note 3) VDS VGS ID IDM EAS dV/dt 200 ±30 9 5.
