MCTL2D4N10Y - N-CHANNEL MOSFET

Features

  • Split Gate Trench MOSFET Technology.
  • Excellent Package for Heat Dissipation.
  • Moisture Sensitivity Level 1.
  • Halogen Free. "Green" Device(Note1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range : -55°C to +175°C.
  • Storage Temperature Range: -55°C to +175°C.
  • Thermal R.

📥 Download Datasheet

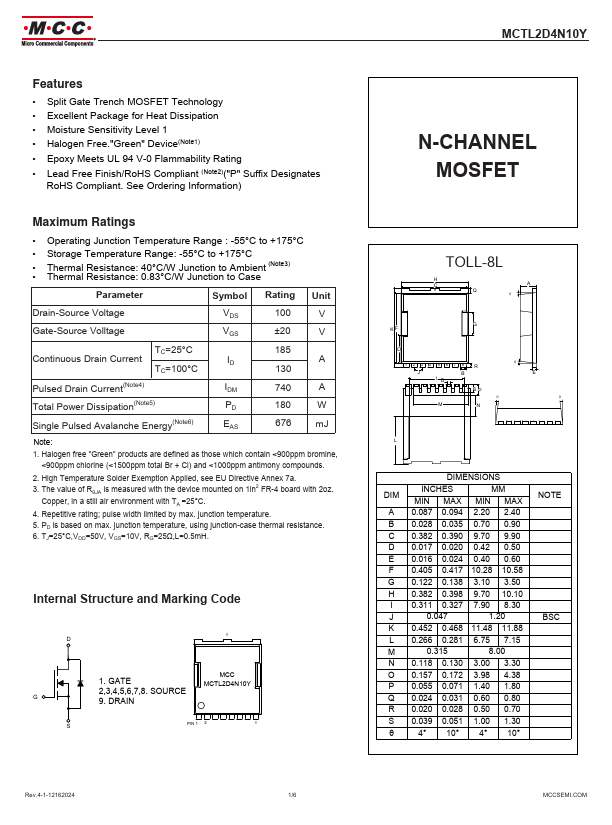

Datasheet preview – MCTL2D4N10Y

📁 Similar Datasheet

  • MCT020A12TW176220PML - LCM (MIDAS)
  • MCT028A12TW240320PL - LCD (MIDAS)
  • MCT0603 - Professional Thin Film Chip Resistors (Vishay)
  • MCT0603 - Precision flat chip resistors (BC)
  • MCT0603AT - Professional Thin Film Chip Resistor (Vishay Siliconix)
  • MCT0603AT - High Stability Thin Film Flat Chip Resistors (Vishay)
  • MCT1413 - High Voltage / High Current Darlington Transistor Array (Motorola)
  • MCT1413B - High Voltage / High Current Darlington Transistor Array (Motorola)
  • MCT1458 - High Performance Dual Operational Amplifier (Motorola)
  • MCT1458C - High Performance Dual Operational Amplifier (Motorola)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • Split Gate Trench MOSFET Technology • Excellent Package for Heat Dissipation • Moisture Sensitivity Level 1 • Halogen Free."Green" Device(Note1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range : -55°C to +175°C • Storage Temperature Range: -55°C to +175°C • Thermal Resistance: 40°C/W Junction to Ambient (Note3) • Thermal Resistance: 0.
Published: |
