MB2S - 0.5Amp Single Phase Bridge Rectifier

Features

  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Glass Passivated Chip Junction.
  • Moisture Sensitivity Level 1.
  • Surface Mount Package.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note 1)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol MB MB MB MB MB.

📥 Download Datasheet

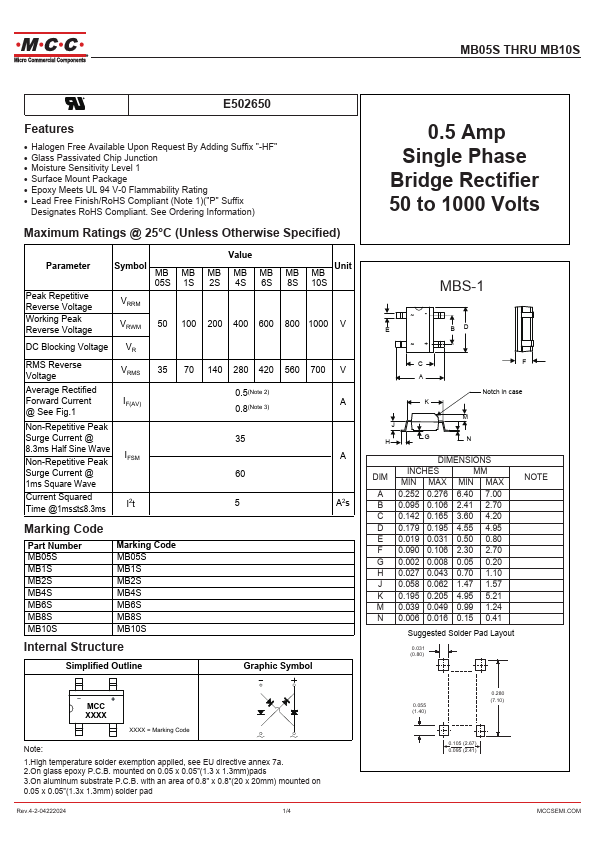

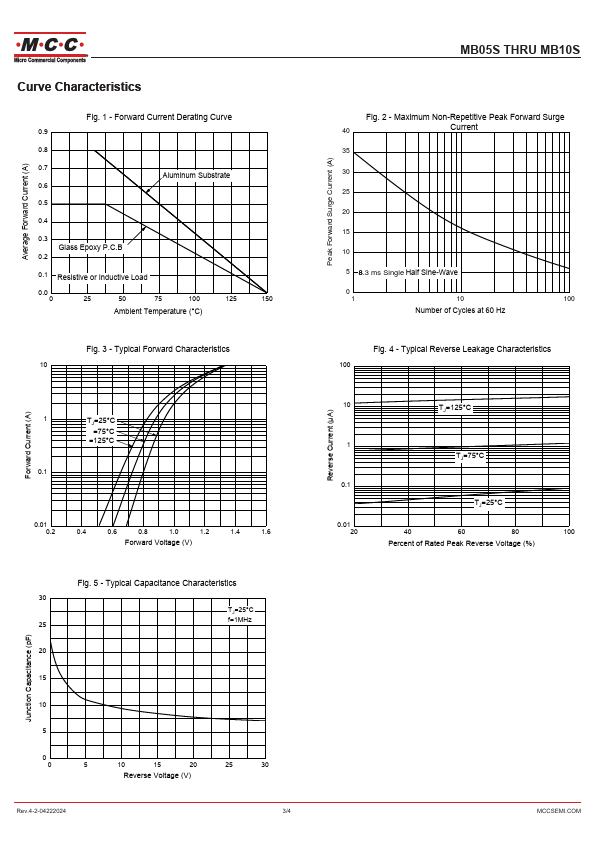

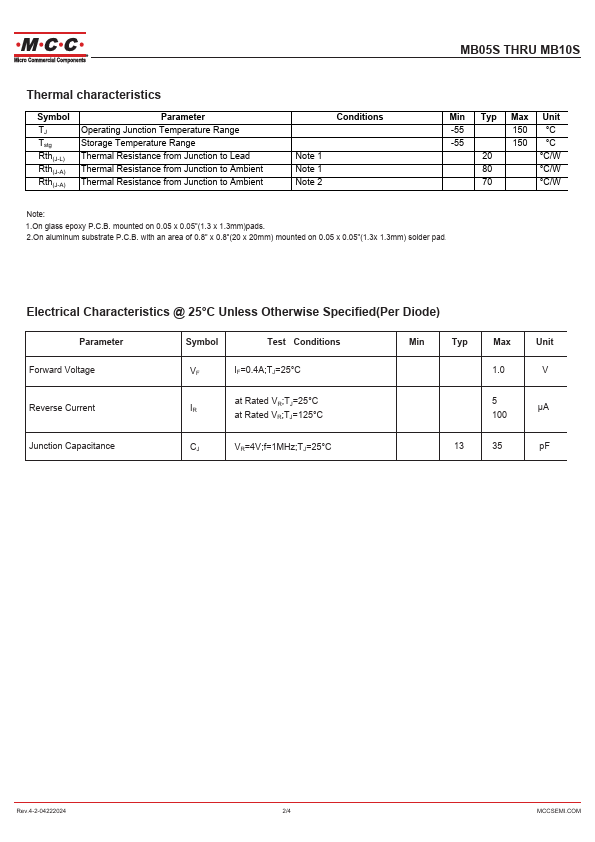

Datasheet preview – MB2S
