GBPC5008 - 50 Amp Glass Passivated Single Phase Bridge Rectifier

Product Overview

MCC

Part number	GBPC5008
Manufacturer	MCC
File Size	449.99 KB
Description	50 Amp Glass Passivated Single Phase Bridge Rectifier
Datasheet	GBPC5008 Datasheet
Note	This datasheet PDF includes multiple part numbers: GBPC5008, GBPC50005. Please refer to the document for exact specifications by model.

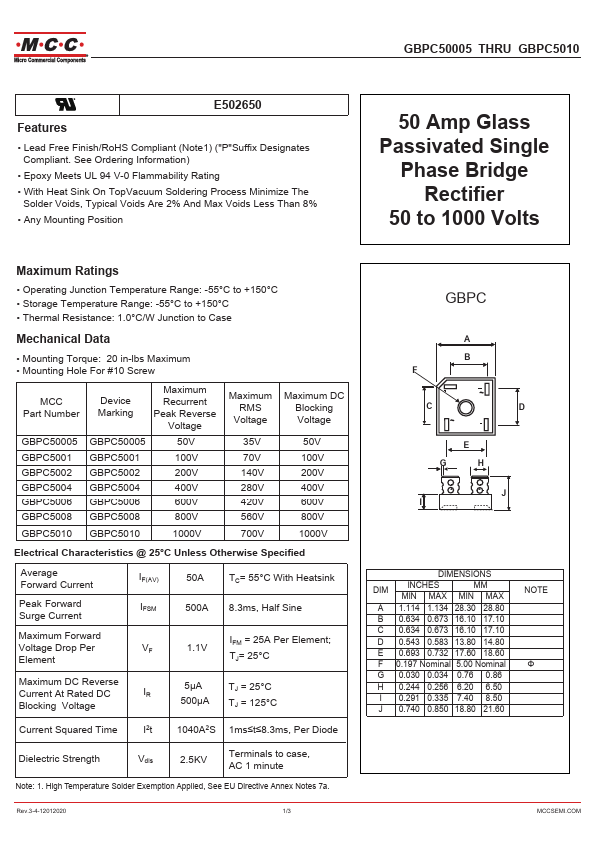

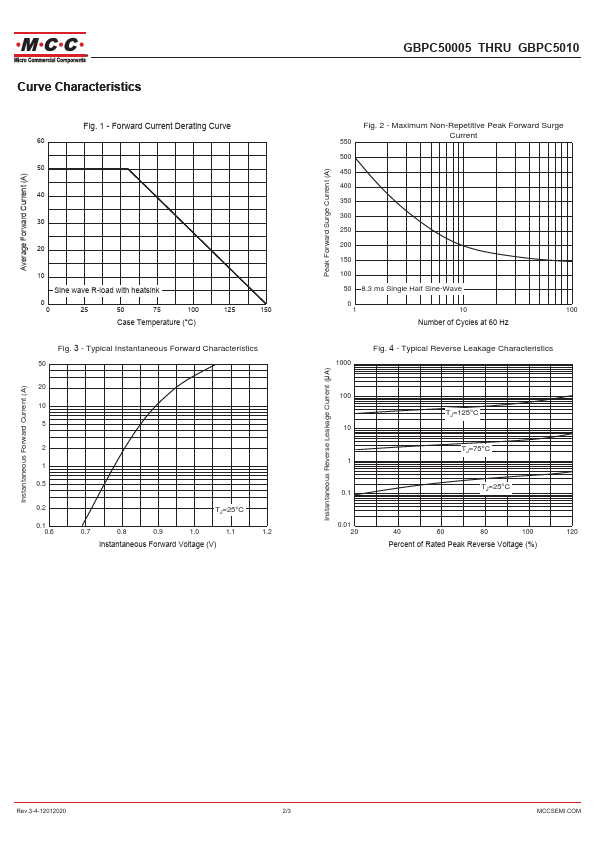

Additional preview pages of the GBPC5008 datasheet.

Halogen free available upon request by adding suffix "-HF".
Glass Passivated Chip Junction.
Surge Rating Of 500 Amps.
Mounting Hole For #10 Screw.
Any Mounting Position.
With heat sink on top.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant(Note 1)("P" Suffix designates RoHS Compliant. See ordering information) Maximum Ratings.
Operating Temperature.
