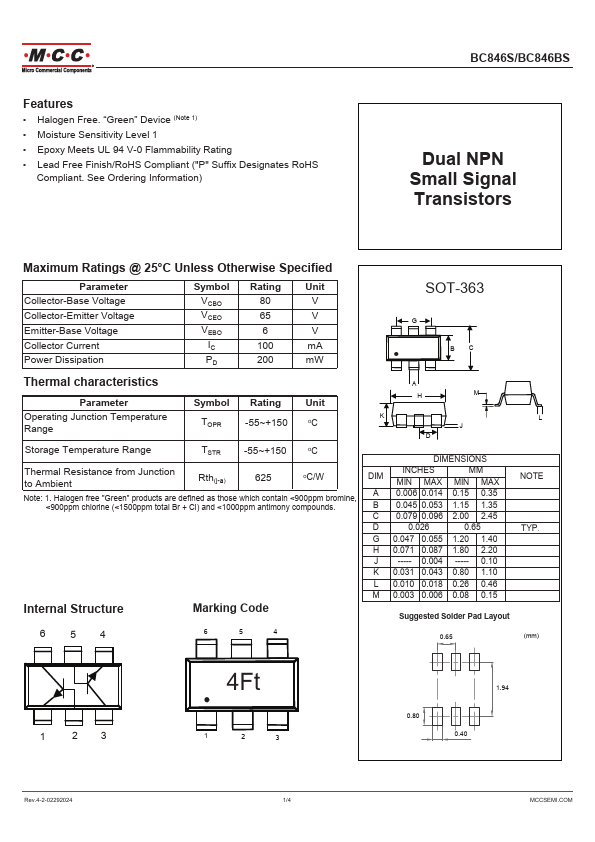

BC846BS
Features
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
%&6%&%6
'XDO131 6PDOO6LJQDO 7UDQVLVWRUV
Maximum Ratings @ 25°C Unless Otherwise Specified
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation
Symbol
VCBO VCEO VEBO
IC PD
Rating 80 65 6 100 200
Unit V V V m A m W
SOT-363
- BC
7KHUPDOFKDUDFWHULVWLFV
3DUDPHWHU
Operating Junction Temperature Range
6PERO TOPR
5DWLQJ -55~+150
8QLW o C
Storage Temperature Range
TSTR
-55~+150 o C
Thermal Resistance from Junction to Ambient
Rth(j-a)
625 o C/W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
,QWHUQDO6WUXFWXUH
0DUNLQJ&RGH
DIMENSIONS
INCHES...
