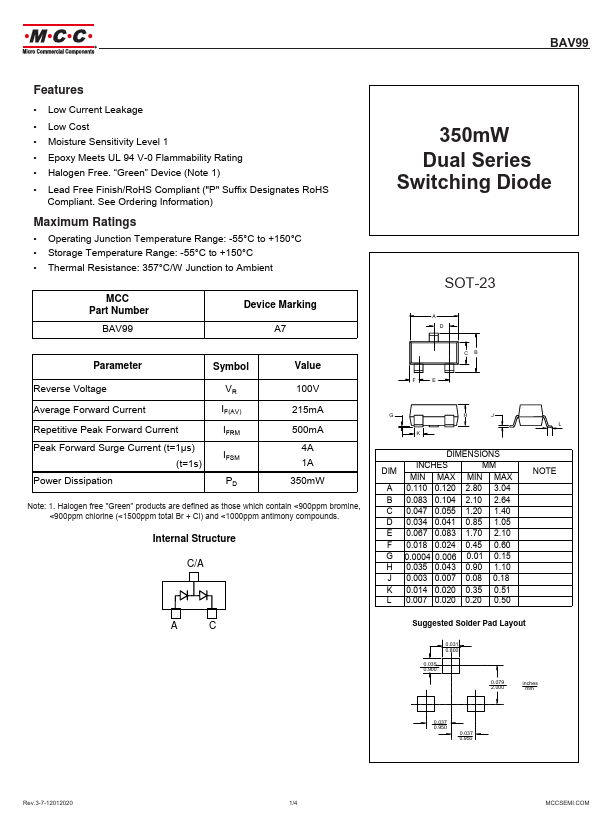

BAV99 - 350mW Dual Series Switching Diode

Features

  • Low Current Leakage.
  • Low Cost.
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Halogen Free. “Green” Device (Note 1).
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 357°C/W Junction to Ambient MCC Part Numb.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV99 Silicon Epitaxial Planar Switching Diodes Toshiba
BAV99 SWITCHING DIODE SMC Diode
BAV99 Small Signal Switching Diode Vishay
BAV99 SMD Small Signal Diodes Diotec
BAV99 200mA 70V High Conductance Ultra-Fast Switching Diode ON Semiconductor

Other Datasheets by Micro Commercial Components

Part Number Description
BAV99BRW Plastic-Encapsulate Diode
BAV99DW Plastic-Encapsulate Diode
BAV99T Switching Diodes
BAV99WT Plastic-Encapsulate Diode
BAV100 Small Signal Diodes

Full PDF Text Transcription

Click to expand full text

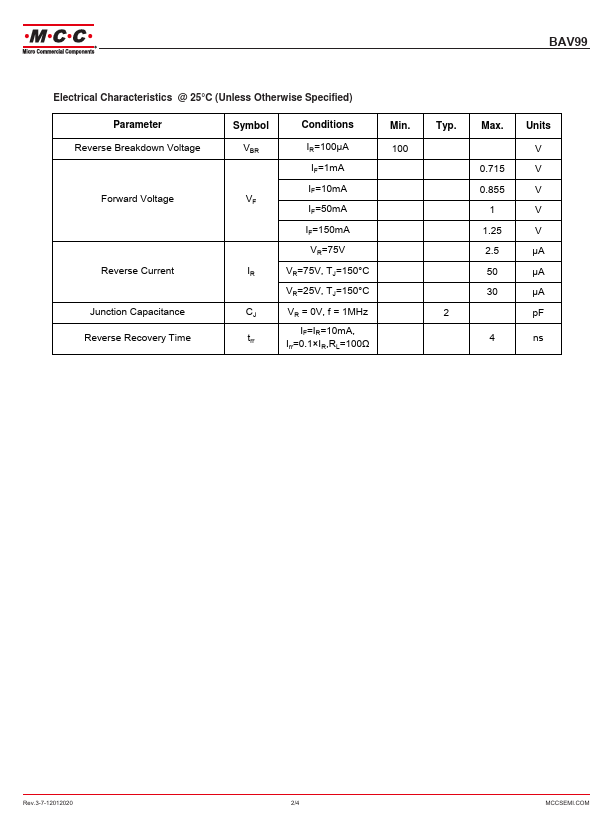

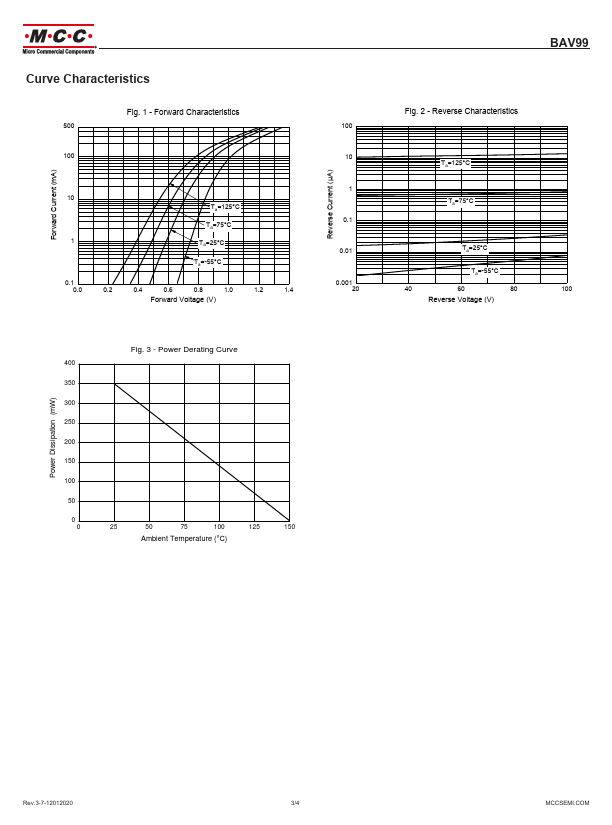

BAV99 Features • Low Current Leakage • Low Cost • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 357°C/W Junction to Ambient MCC Part Number BAV99 Device Marking A7 Parameter Symbol Reverse Voltage Average Forward Current Repetitive Peak Forward Current Peak Forward Surge Current (t=1μs) (t=1s) Power Dissipation VR IF(AV) IFRM IFSM PD Value 100V 215mA 500mA 4A 1A 350mW Note: 1.
