BAT54S - 250mW 30V Schottky Barrier Diode

This page provides the datasheet information for the BAT54S, a member of the BAT54 250mW 30V Schottky Barrier Diode family.

Features

  • Low Forward Voltage.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Lead Free Finish/Rohs Compliant ("P"Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +125°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance(Note2): 400°C/W Junction to Ambient MCC Part Number BAT54 BA.

📥 Download Datasheet

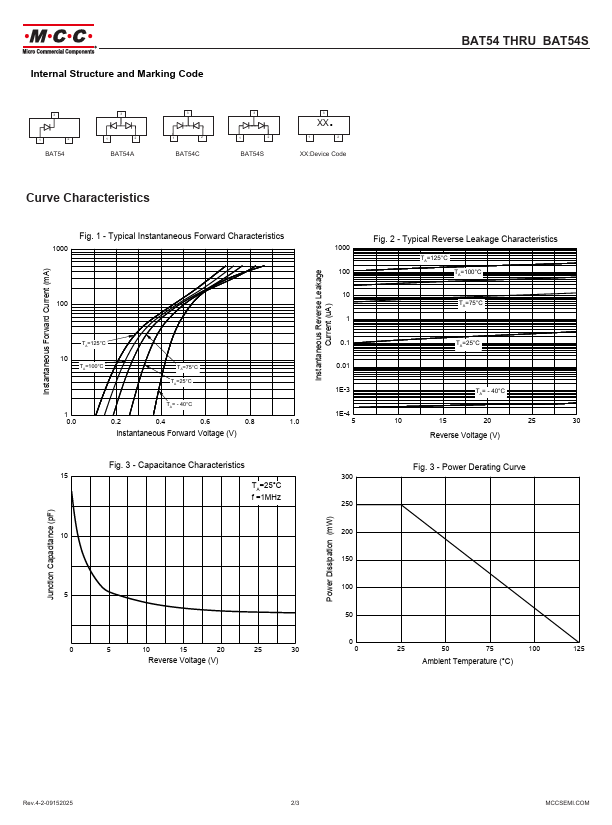

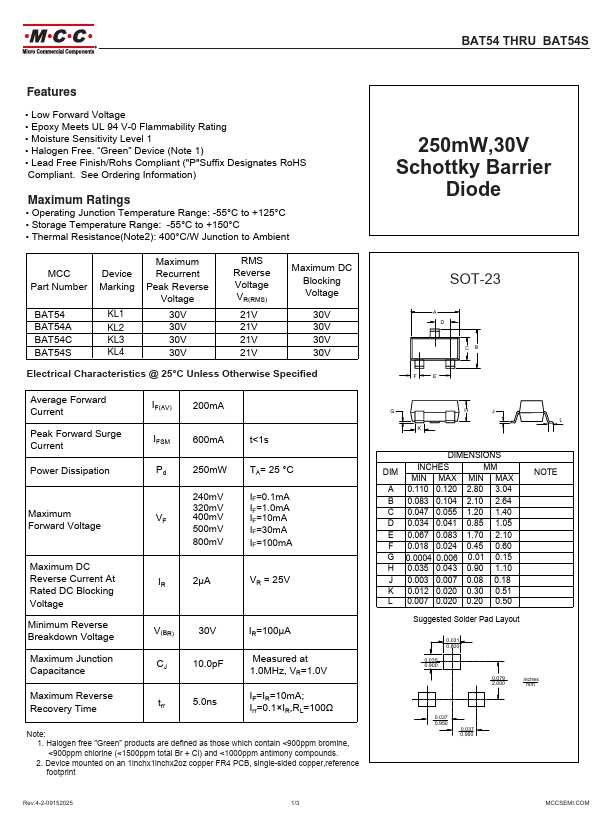

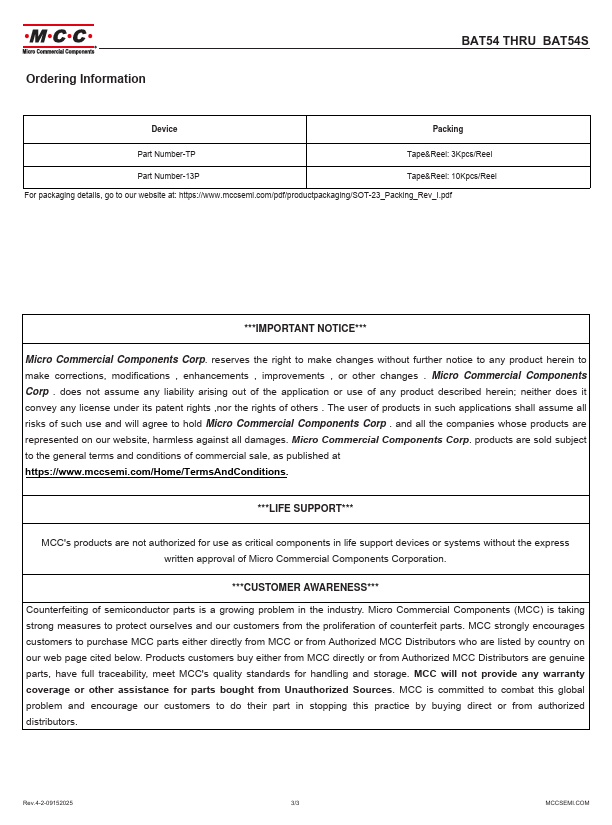

Datasheet preview – BAT54S
