5.0SMLJ15CAHE3 - 5000 Watt TVS

This page provides the datasheet information for the 5.0SMLJ15CAHE3, a member of the 5.0SMLJ5.0AHE3 5000 Watt TVS family.

Description

Uni-directional Simplified outline MCC 1 XXXX 2 YYWW Cathode Mark Graphic symbol Cathode Anode （1） （2） Bi-directional 1 XMXCXCX 2 YYWW （1） （2） 5000 Watt TVS 5.0 to 85 Volts SMC (DO-214AB) (LEAD FRAME) G H Cathode Mark D A E F C B DIMENSIONS DIM INCHES MIN MAX MM M

Features

  • AEC-Q101 Qualified.
  • For Surface Mount.

📥 Download Datasheet

Datasheet preview – 5.0SMLJ15CAHE3

📁 Similar Datasheet

  • 5.0SMLJ15CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ150A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ15A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ100A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ110A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ120A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ12A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ12CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ130A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
  • 5.0SMLJ13A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (MDE)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

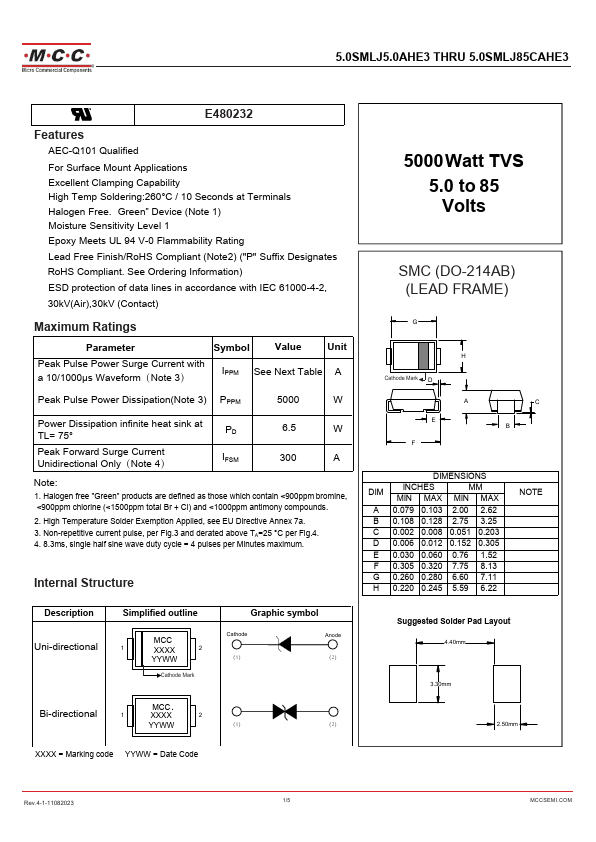

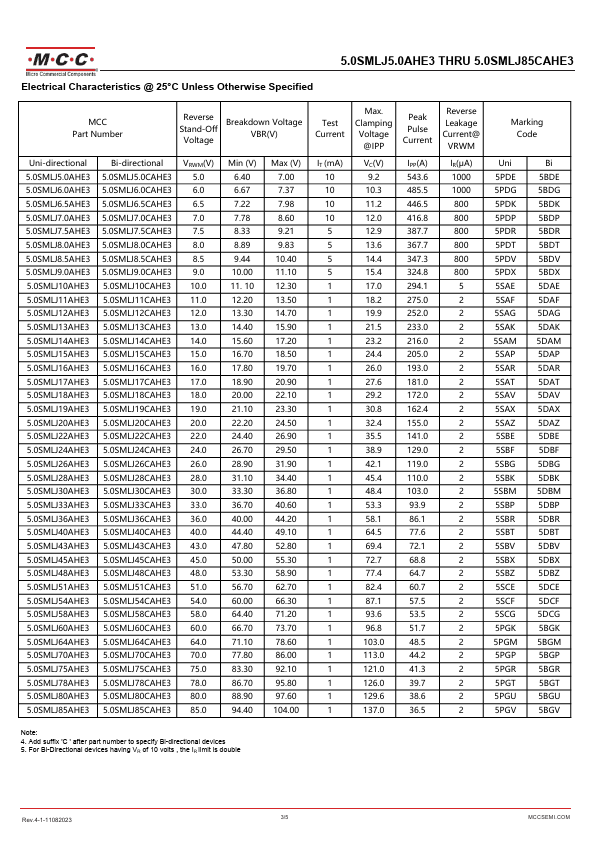

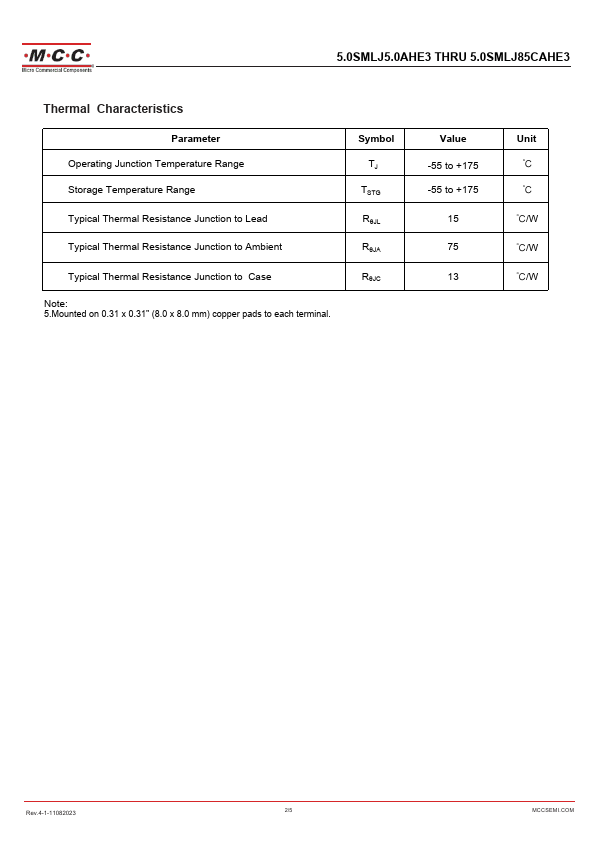

5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 E480232 Features • AEC-Q101 Qualified • For Surface Mount Applications • Excellent Clamping Capability • High Temp Soldering:260°C / 10 Seconds at Terminals • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant.
