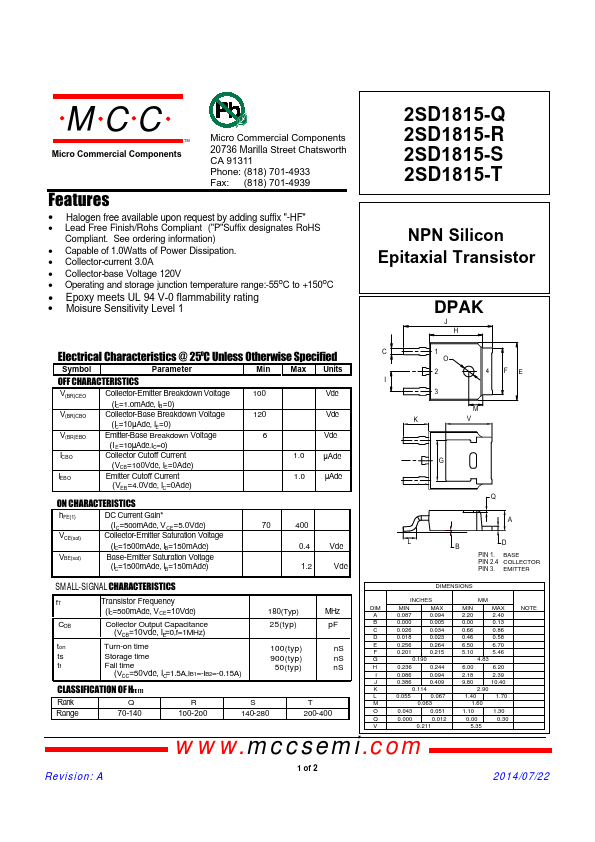

2SD1815-T Datasheet NPN Silicon Epitaxial Transistor

Manufacturer: Micro Commercial Components

Download the 2SD1815-T datasheet PDF. This datasheet also includes the 2SD1815-Q variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SD1815-Q-MCC.pdf) that lists specifications for multiple related part numbers.

Overview

MCC TM Micro Commercial Components.

Key Features

  •    omponents 20736 Marilla Street Chatsworth    !"# $ %    !"#.
  • Halogen free available upon request by adding suffix "-HF".
  • Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS Compliant. See ordering information).
  • Capable of 1.0Watts of Power Dissipation.
  • Collector-current 3.0A.
  • Collector-base Voltage 120V.
  • Operating and storage junction temperature range:-55oC to +150oC x Epoxy m.
