2SB1261 - PNP Silicon Epitaxial Transistors

Key Features

  • Low Collector Saturation Voltage.
  • Execllent Current-to-Gain Characteristics.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Tempera.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1261 PNP Transistor LGE
2SB1261 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1261 PNP Epitaxial Planar Silicon Transistors GME
2SB1261 PNP Transistor JCET
2SB1261 PNP Epitaxial Silicon Transistor JILIN SINO

Other Datasheets by Micro Commercial Components

Part Number Description
2SB1260 PNP Plastic-Encapsulate Transistors
2SB1073-Q Silicon PNP Transistor
2SB1073-R Silicon PNP Transistor
2SB1132-P PNP Transistors
2SB1132-Q PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

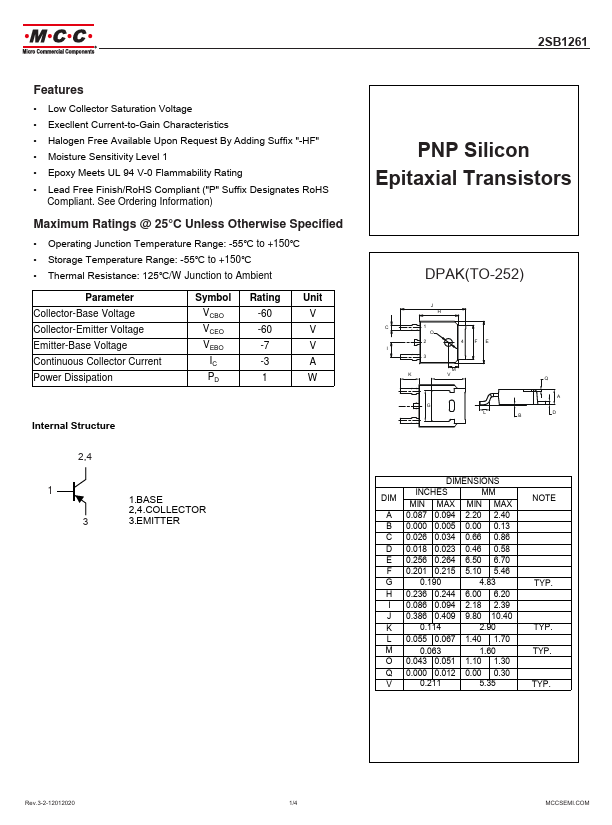

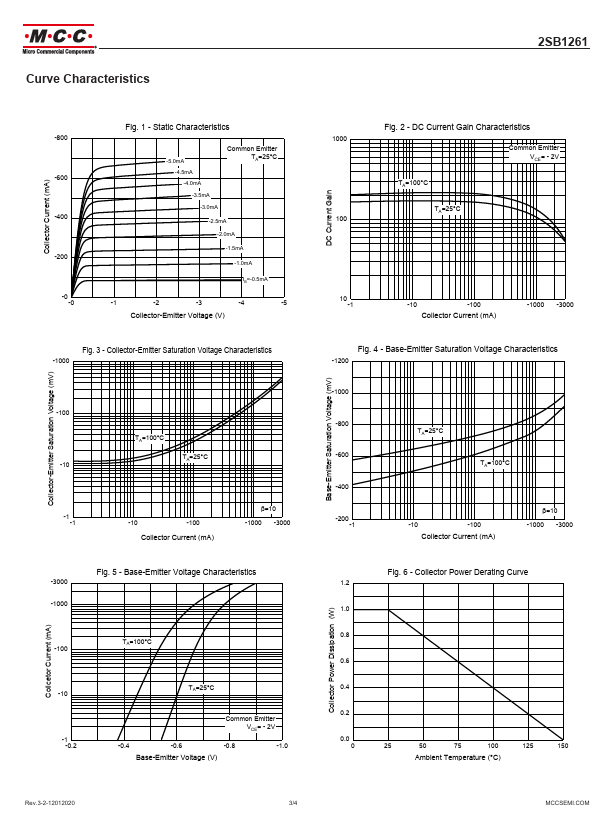

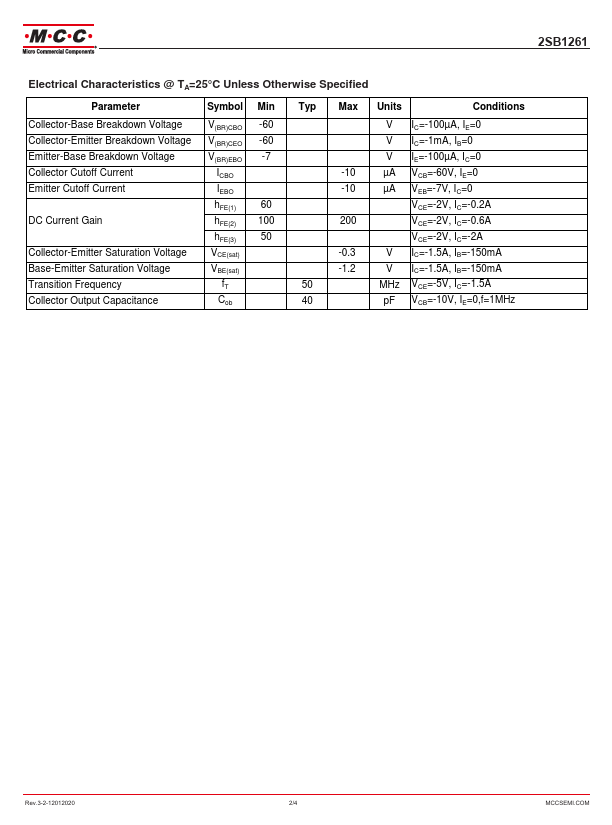

2SB1261 Features • Low Collector Saturation Voltage • Execllent Current-to-Gain Characteristics • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 125℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating -60 -60 -7 -3 1 Unit V V V A W Internal Structure 2,4 1 3 1.BASE 2,4.COLLECTOR 3.
