AMC-184 - Cascadable Thin Film Amplifier

General Description

M/A-COM’s AM-184 is a feedback amplifier with high intercept and compression points.

This amplifier is packaged in a TO-8 package.

Due to the internal power dissipation the thermal rise should be minimized.

Key Features

  • 20 dB High Gain.
  • 60 mA Maximum Low Power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AMC-180 Cascadable Thin Film Amplifier MA-COM
AMC-183 Cascadable Thin Film Amplifier MA-COM
AMC-100 (AMC-100 / AMC-101) AC Motor Controllers Indelac
AMC-1000 Processor Module ADLINK
AMC-101 (AMC-100 / AMC-101) AC Motor Controllers Indelac

Other Datasheets by MACOM Technology Solutions

Part Number Description
AMC-182 Cascadable Thin Film Amplifier
AMC-140 High Performance Amplifier
AMC-142 Low Noise Amplifier
AMC-143 Low Noise Amplifier
AMC-145 High Performance Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

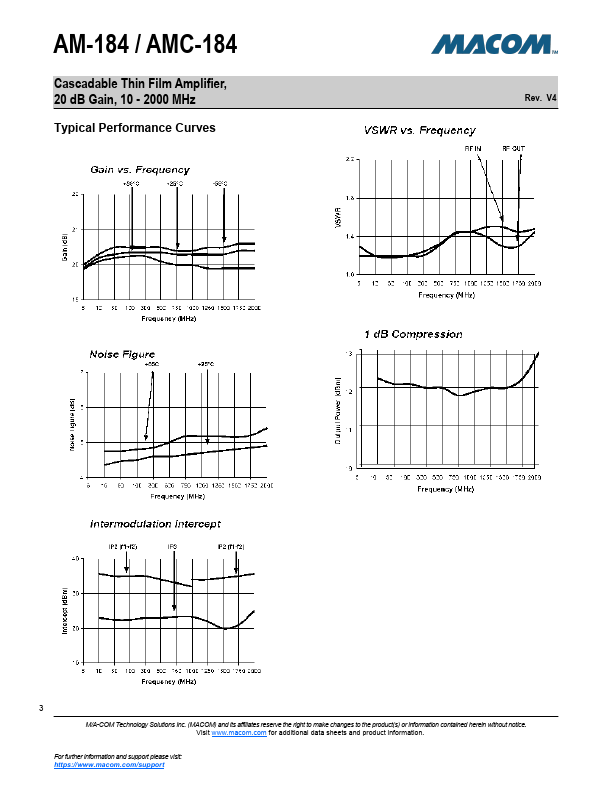

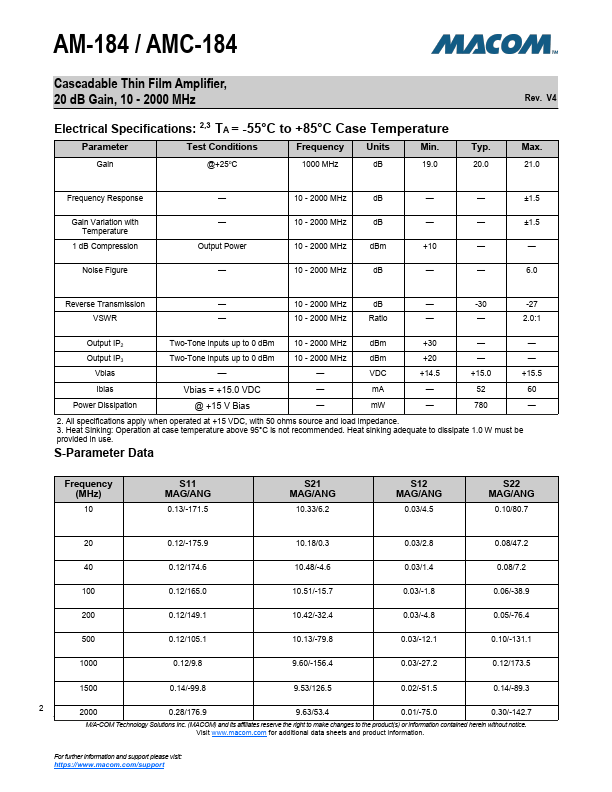

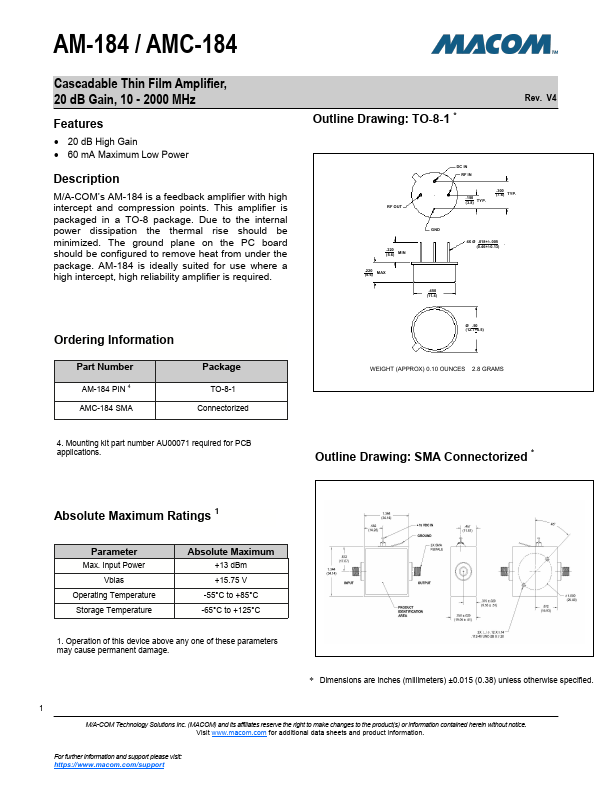

AM-184 / AMC-184 Cascadable Thin Film Amplifier, 20 dB Gain, 10 - 2000 MHz Features  20 dB High Gain  60 mA Maximum Low Power Description M/A-COM’s AM-184 is a feedback amplifier with high intercept and compression points. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise should be minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-184 is ideally suited for use where a high intercept, high reliability amplifier is required. Outline Drawing: TO-8-1 * Rev. V4 RF OUT .220 (5.6) MIN .220 (5.6) MAX DC IN RF IN .150 (3.8) TYP. .300 (7.6) TYP. GND 4X Ø .018+/-.005 (0.46+/-0.13) .450 (11.
