AMC-151 - Cascadable Amplifier

General Description

The AM-151 amplifier uses a coupler feedback design with high intercept and compression points.

The use of coupler feedback minimized noise figure and DC current in a high intercept amplifier.

This amplifier is packaged a TO-8 package.

Key Features

  • NOISE FIGURE: 5 dB (TYP. ).
  • HIGH THIRD ORDER IP: +38 dBM (TYP. ).
  • P1dB: +21 dBm (TYP. ).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AMC-155 High Dynamic Range Amplifier MA-COM
AMC-100 (AMC-100 / AMC-101) AC Motor Controllers Indelac
AMC-1000 Processor Module ADLINK
AMC-101 (AMC-100 / AMC-101) AC Motor Controllers Indelac
AMC-117 Low Noise Amplifier MA-COM

Other Datasheets by MACOM Technology Solutions

Part Number Description
AMC-140 High Performance Amplifier
AMC-142 Low Noise Amplifier
AMC-143 Low Noise Amplifier
AMC-145 High Performance Amplifier
AMC-146 High Performance Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

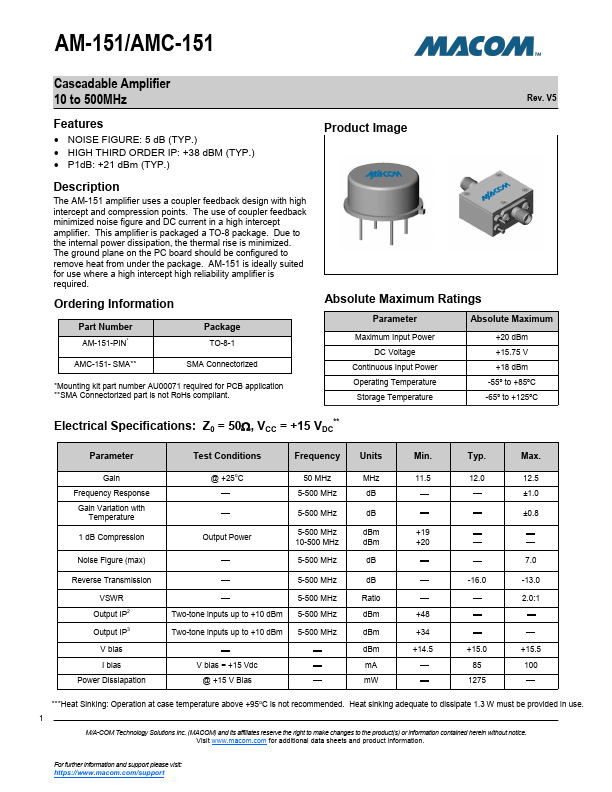

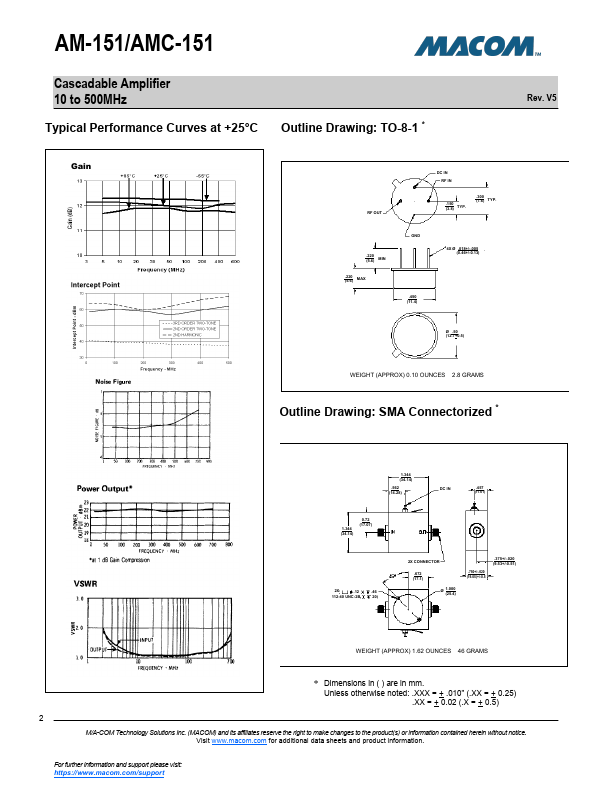

AM-151/AMC-151 Cascadable Amplifier 10 to 500MHz Features  NOISE FIGURE: 5 dB (TYP.)  HIGH THIRD ORDER IP: +38 dBM (TYP.)  P1dB: +21 dBm (TYP.) Description The AM-151 amplifier uses a coupler feedback design with high intercept and compression points. The use of coupler feedback minimized noise figure and DC current in a high intercept amplifier. This amplifier is packaged a TO-8 package. Due to the internal power dissipation, the thermal rise is minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-151 is ideally suited for use where a high intercept high reliability amplifier is required.
