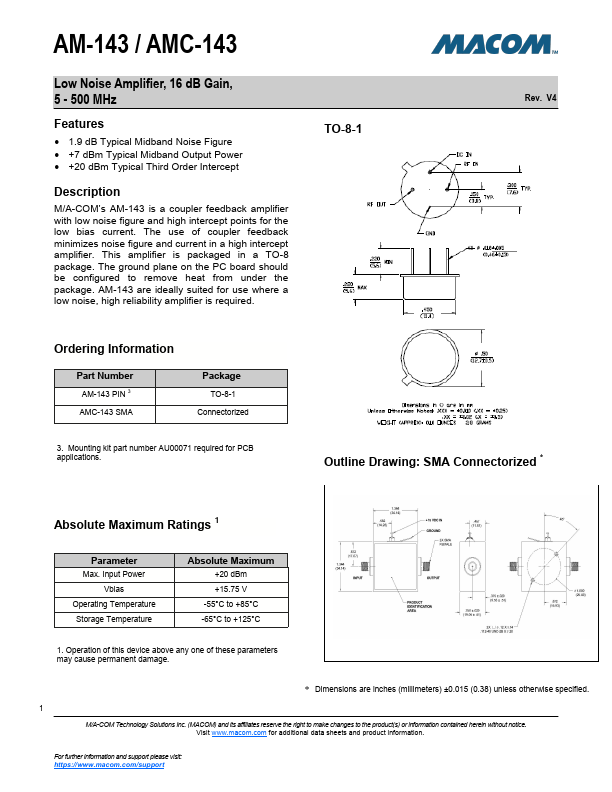

AM-143
Features
- 1.9 d B Typical Midband Noise Figure
- +7 d Bm Typical Midband Output Power
- +20 d Bm Typical Third Order Intercept
Description
M/A-’s AM-143 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. The ground plane on the PC board should be configured to remove heat from under the package. AM-143 are ideally suited for use where a low noise, high reliability amplifier is required.
TO-8-1
Rev. V4
Ordering Information
Part Number AM-143 PIN 3 AMC-143 SMA
Package TO-8-1
Connectorized
3. Mounting kit part number AU00071 required for PCB applications.
Outline Drawing: SMA Connectorized
- Absolute Maximum Ratings 1
Parameter Max. Input Power
Vbias Operating Temperature Storage Temperature
Absolute Maximum +20 d Bm +15.75 V
-55°C to +85°C -65°C to +125°C
1. Operation of this device above...
