LB043WQ2-TD01 - TFT LCD

Description

Interface Connection Absolute Maximum Ratings Electrical Characteristics Touch Screen Panel Optical Characteristics Mechanical Characteristics Color Input Data Reference Reliability Test Outline Dimension International Standard Packing Precautions Page 3 4 6 8 9 15 18 21 22 23 24 25 26 27 Ver 1.0

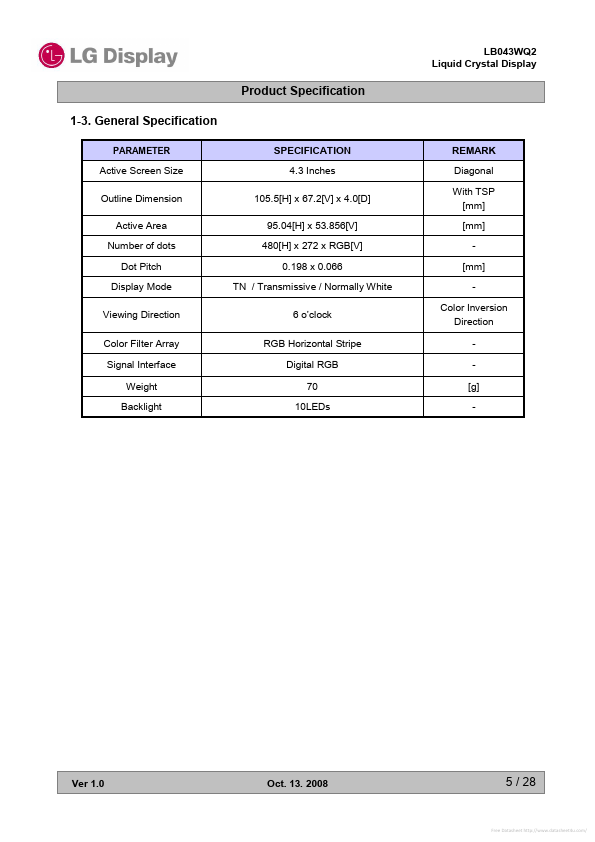

Features

  • High brightness & contrast ratio.
  • Wide viewing angle.
  • WQVGA(480X272 pixels) resolution.
  • 8 bits color depth.
  • T-Con & power block is built In D-IC.
  • Low power consumption.
  • With touch screen panel (film to glass type).
  • DE (Data Enable) only mode.

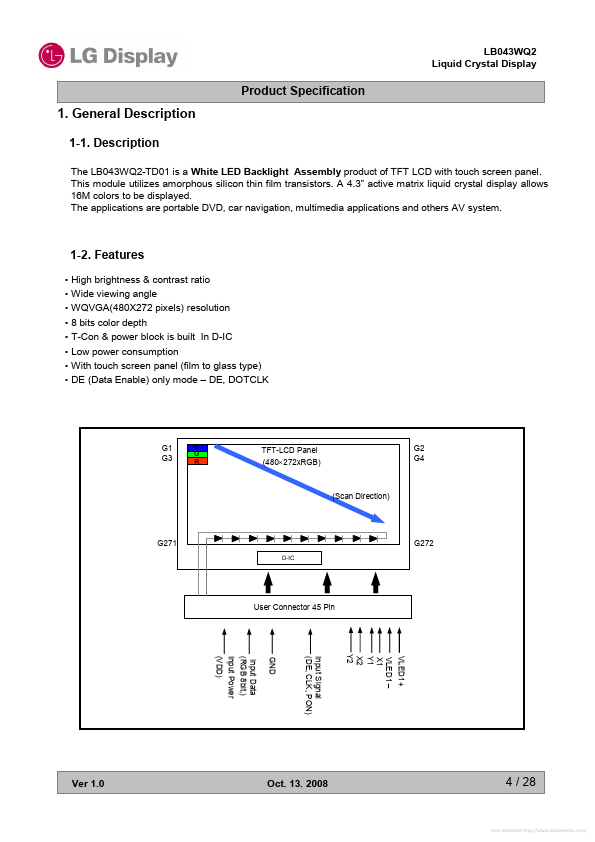

  • DE, DOTCLK G1 G3 B G R TFT-LCD Panel (480´272xRGB) G2 G4 (Scan Direction) G271 D-IC G272 User Connector 45 Pin VLED1－ X1 Y1 X2 Y2 (VDD) Input Power Input Data (RGB.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LB04302 TFT LCD Sunbond
LB02VA001 Standard Size Indicator NKK
LB03-10B03 power converter MORNSUN
LB03-10B05 power converter MORNSUN
LB03-10B09 power converter MORNSUN

Other Datasheets by LG Electronics

Part Number Description
LB043WQ2-TD08 TFT LCD
LB043WQ1 LCD
LB043WQ1-TD01 LCD
LB043WQ1-TD05 TFT LCD
LB043WQ1-TD07 LCD

Full PDF Text Transcription

Click to expand full text

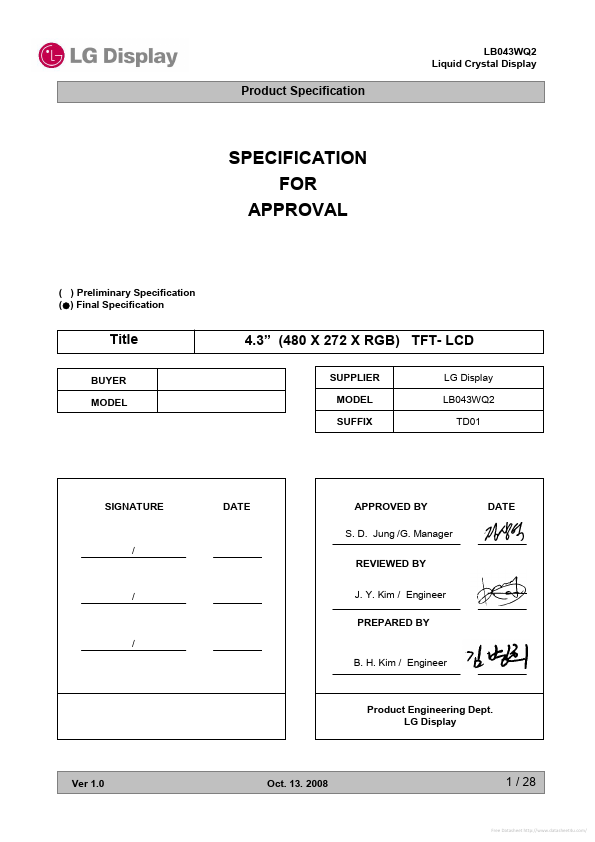

LB043WQ2 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification (●) Final Specification Title BUYER MODEL 4.3” (480 X 272 X RGB) TFT- LCD SUPPLIER MODEL SUFFIX LG Display LB043WQ2 TD01 SIGNATURE DATE APPROVED BY S. D. Jung /G. Manager DATE / REVIEWED BY / J. Y. Kim / Engineer PREPARED BY / B. H. Kim / Engineer Product Engineering Dept. LG Display Ver 1.0 Oct. 13. 2008 1 / 28 Free Datasheet http://www.datasheet4u.com/ LB043WQ2 Liquid Crystal Display Product Specification Contents No.
