ML7660 - 13.56MHz wireless charging receiver LSI

Datasheet Summary

Description

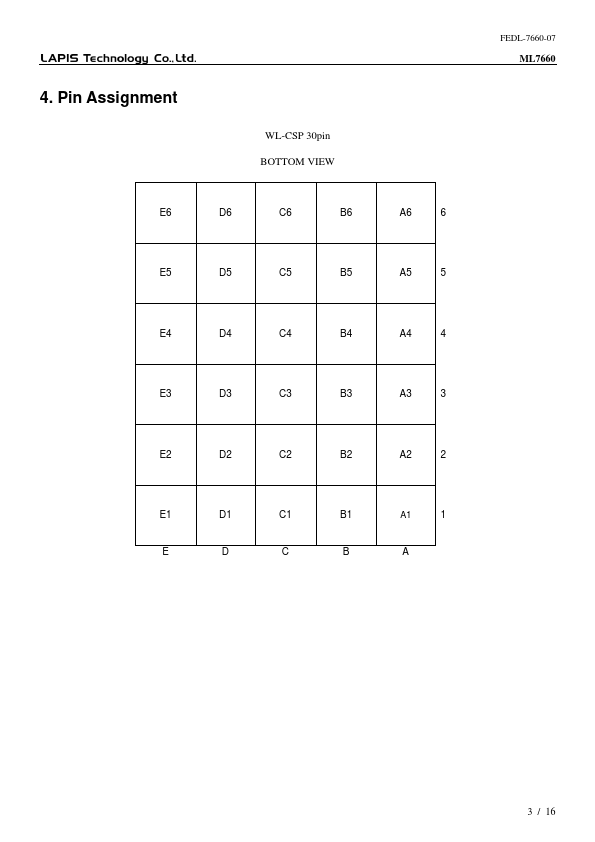

PIN No.

1) ( 2) － － － － H(A) OA H(A) OA － － － － － IA Active Level Description Process in not use Ground － (VSS0 to VSS

Features

  • Charging control ― Built-in Charging control circuit Built-in setting of output voltage by shunt regulator Voltage/Current supply ON/OFF function to external charging IC 1W receiving available ― Abnormally detection function by software and hardware control ― Abnormally notification function to the power transmission side.
  • Communication control ― Communication speed: 212kbps, 424kbps ― 2Kbyte data flash for storing user data.
  • Host interface ― 1ch Serial interface (Slave), and sel.

📥 Download Datasheet

Datasheet preview – ML7660

Datasheet Details

Part number ML7660
Manufacturer LAPIS
File Size 494.06 KB
Description 13.56MHz wireless charging receiver LSI
Datasheet download datasheet ML7660 Datasheet
Additional preview pages of the ML7660 datasheet.

📁 Similar Datasheet

  • ML7000-01 - Single Rail CODEC (OKI electronic componets)
  • ML7000-02 - Single Rail CODEC (OKI electronic componets)
  • ML7000-03 - Single Rail CODEC (OKI electronic componets)
  • ML7001-01 - Single Rail CODEC (OKI electronic componets)
  • ML7001-02 - Single Rail CODEC (OKI electronic componets)
  • ML7001-03 - Single Rail CODEC (OKI electronic componets)
  • ML7011R - LASER DIODES (Mitsubishi Electric Semiconductor)
  • ML701B8R - InGaAsP-MQW-FP LASER DIODES (Mitsubishi)
  • ML701B8R - InGaAsP Laser Diodes (Mitsubishi Electric)
  • ML7033 - Dual-Channel Line Card CODEC (OKI)
Other Datasheets by LAPIS
  • ML7630 - 13.56MHz wireless charging Rx LSI
  • ML7005 - DTMF Transceiver
  • ML7029 - Multifunction ADPCM CODEC
  • ML7033 - Dual-Channel Line Card CODEC
  • ML7037-003 - Dual Echo Canceler & Noise Canceler
  • ML7041 - Audio CODEC
  • ML7066 - 400MHz Transceiver IC
  • ML7105 - Bluetooth Low Energy

Full PDF Text Transcription

Click to expand full text

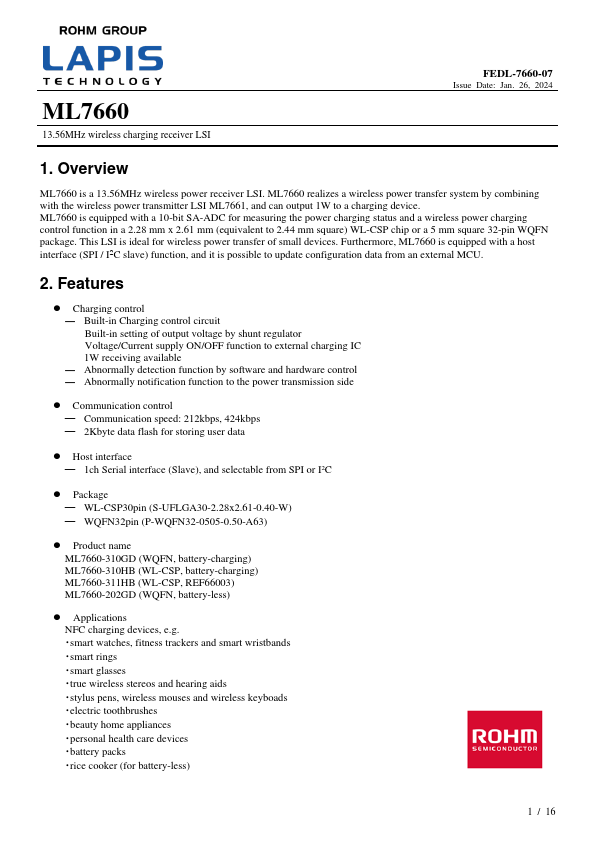

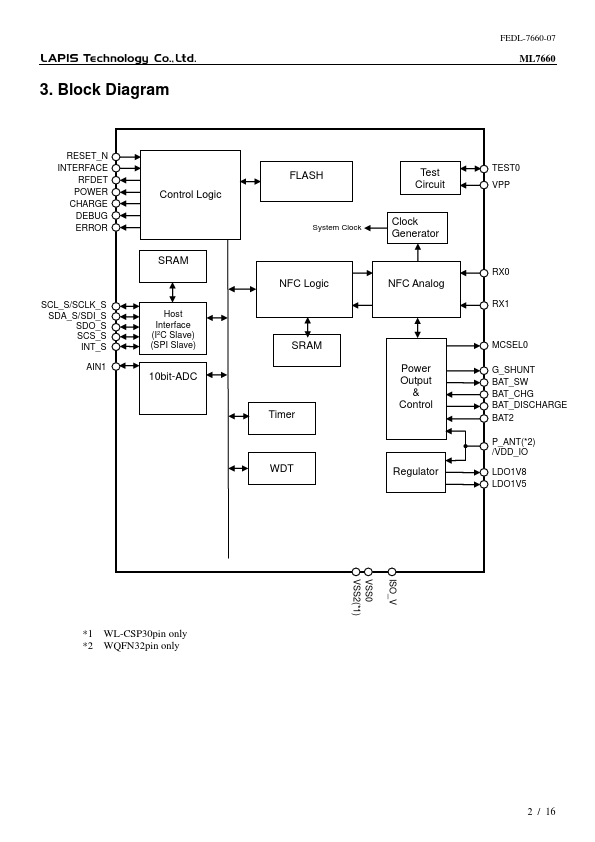

ML7660 13.56MHz wireless charging receiver LSI FEDL-7660-07 Issue Date: Jan. 26, 2024 1. Overview ML7660 is a 13.56MHz wireless power receiver LSI. ML7660 realizes a wireless power transfer system by combining with the wireless power transmitter LSI ML7661, and can output 1W to a charging device. ML7660 is equipped with a 10-bit SA-ADC for measuring the power charging status and a wireless power charging control function in a 2.28 mm x 2.61 mm (equivalent to 2.44 mm square) WL-CSP chip or a 5 mm square 32-pin WQFN package. This LSI is ideal for wireless power transfer of small devices. Furthermore, ML7660 is equipped with a host interface (SPI / I2C slave) function, and it is possible to update configuration data from an external MCU. 2.
