KA-2735ESGC - SURFACE MOUNT LED LAMP

General Description

The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode.

The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode.

Notes: 1.

Key Features

  • z 2.7mm X 3.5mm SMT LED, 1.5mm HEIGHT ONLY. z BOTH CHIPS CAN BE.

📥 Download Datasheet

Datasheet Details

Part number KA-2735ESGC
Manufacturer Kingbright
File Size 200.58 KB
Description SURFACE MOUNT LED LAMP
Datasheet download datasheet KA-2735ESGC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA-058 Transient Voltage Suppressors HITANO
KA-076 Transient Voltage Suppressors HITANO
KA-170 Transient Voltage Suppressors HITANO
KA-380 Transient Voltage Suppressors HITANO
KA-430 Transient Voltage Suppressors HITANO

Other Datasheets by Kingbright

Part Number Description
KA-2214QBS-D SURFACE MOUNT LED LAMP
KA-2214VBS-D SURFACE MOUNT LED LAMP
KA-2214ZGS SURFACE MOUNT LED LAMP
KA-3021CGCKT SURFACE MOUNT LED LAMP
KA-3021CGSK SURFACE MOUNT LED LAMP

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

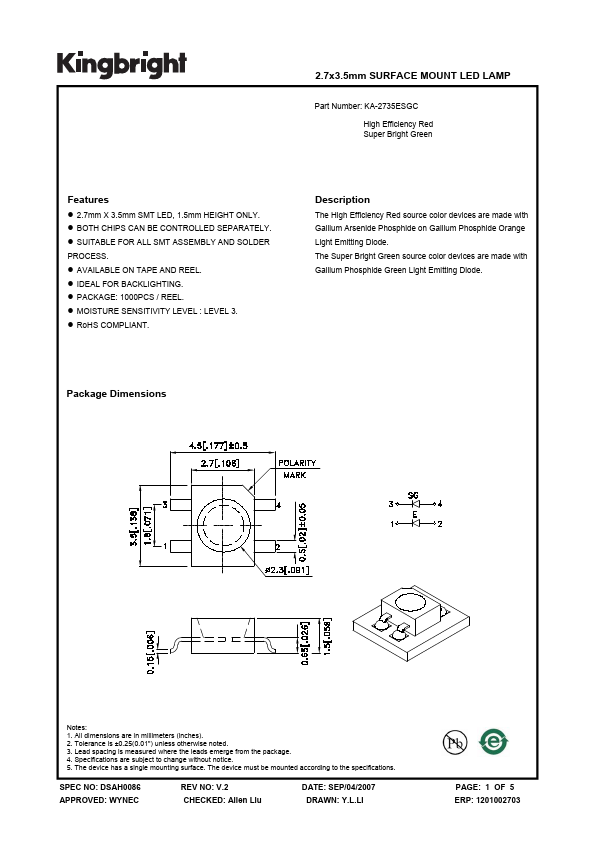

2.7x3.5mm SURFACE MOUNT LED LAMP Part Number: KA-2735ESGC High Efficiency Red Super Bright Green Features z 2.7mm X 3.5mm SMT LED, 1.5mm HEIGHT ONLY. z BOTH CHIPS CAN BE CONTROLLED SEPARATELY. z SUITABLE FOR ALL SMT ASSEMBLY AND SOLDER PROCESS. z AVAILABLE ON TAPE AND REEL. z IDEAL FOR BACKLIGHTING. z PACKAGE: 1000PCS / REEL. z MOISTURE SENSITIVITY LEVEL : LEVEL 3. z RoHS COMPLIANT. Description The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3.
