TL432 - Low Voltage Adjustable Precision Shunt Regulator

Features

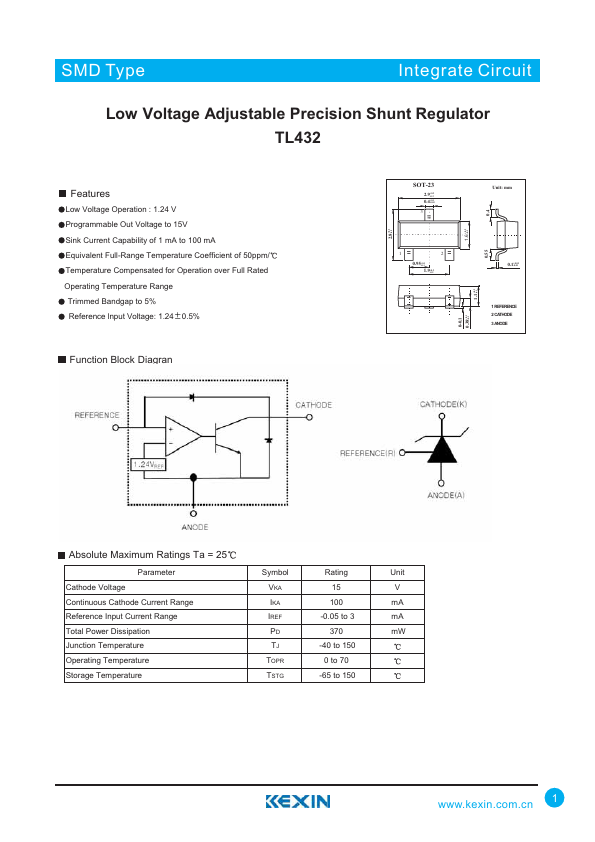

  • Low Voltage Operation : 1.24 V Programmable Out Voltage to 15V Sink Current Capability of 1 mA to 100 mA Equivalent Full-Range Temperature Coefficient of 50ppm/ Temperature Compensated for Operation over Full Rated Operating Temperature Range Trimmed Bandgap to 5% Reference lnput Voltage: 1.24 ± 0.5% Function Block Diagran +0.2 2.8 -0.2 SOT-23 2.9+0.2 -0.2 0.4+0.1 -0.05 3 1 2 0.95+0.1 -0.1 1.9+0.2 -0.2 0-0.1 +0.1 0.38 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TL432 ADJUSTABLE PRECISION SHUNT REGULATOR Diodes
TL432 Precision Programmable Reference Texas Instruments
TL432 1.25V PRECISION ADJUSTABLE SHUNT REFERENCE REGULATORS UTC
TL432 Programmable Precision Shunt Regulator HTC
TL432 Automotive adjustable voltage reference STMicroelectronics

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

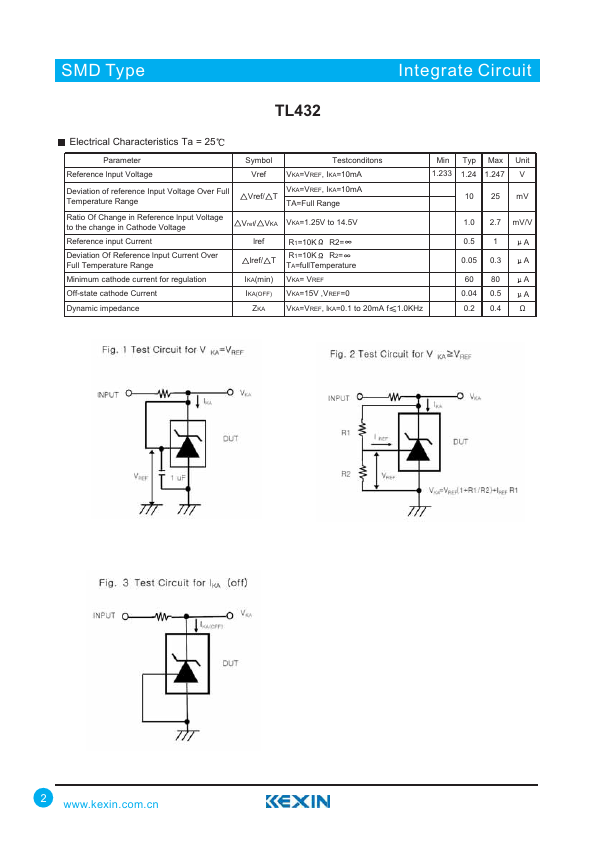

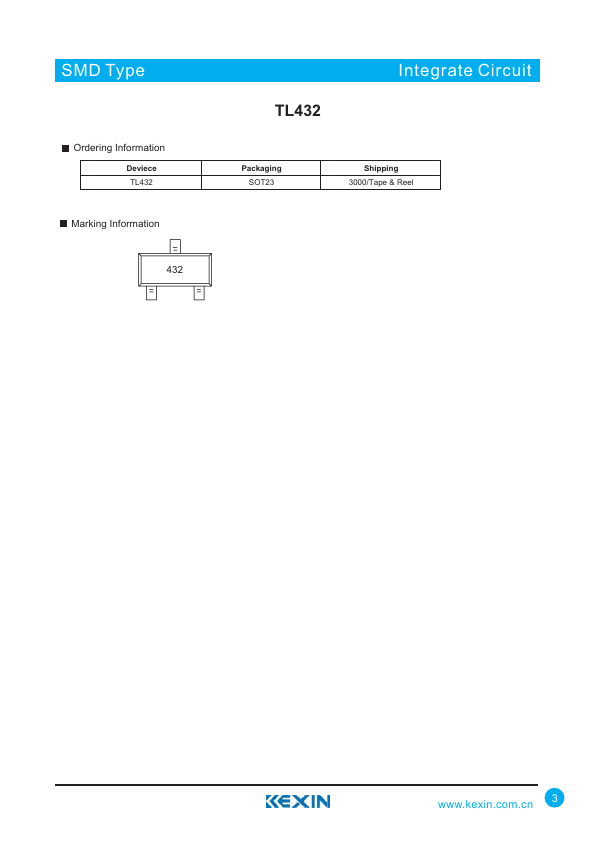

SMD Type Integrate Circuit Low Voltage Adjustable Precision Shunt Regulator TL432 Features Low Voltage Operation : 1.24 V Programmable Out Voltage to 15V Sink Current Capability of 1 mA to 100 mA Equivalent Full-Range Temperature Coefficient of 50ppm/ Temperature Compensated for Operation over Full Rated Operating Temperature Range Trimmed Bandgap to 5% Reference lnput Voltage: 1.24 ± 0.5% Function Block Diagran +0.2 2.8 -0.2 SOT-23 2.9+0.2 -0.2 0.4+0.1 -0.05 3 1 2 0.95+0.1 -0.1 1.9+0.2 -0.2 0-0.1 +0.1 0.38 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 11.BRaEsFeERENCE 22.ECmATiHttOeDr E 33.
