STN2NF10 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 100V.
  • ID = 2.4 A (VGS = 10V).
  • RDS(ON) ＜ 260mΩ (VGS = 10V) D G S SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current Power Dissipation Single pulse avalanche energy Tc=25℃ (Note.1) Pea.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STN2NF10 N-CHANNEL POWER MOSFET ST Microelectronics
STN2NF06 N-CHANNEL POWER MOSFET ST Microelectronics
STN2NF06L N-CHANNEL POWER MOSFET ST Microelectronics
STN2N06 N-CHANNEL POWER MOSFET ST Microelectronics
STN2N10L N-CHANNEL POWER MOSFET ST Microelectronics

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

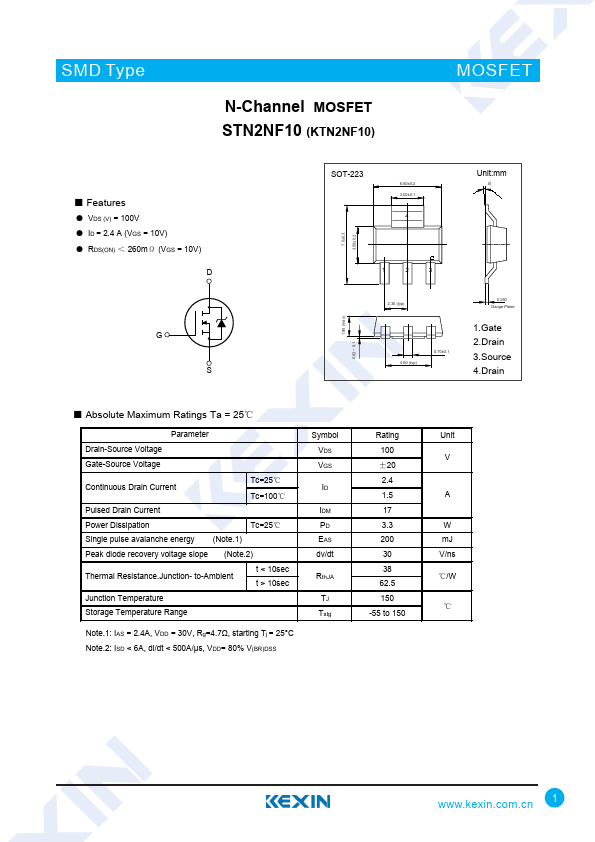

SMD Type N-Channel MOSFET STN2NF10 (KTN2NF10) MOSFET ■ Features ● VDS (V) = 100V ● ID = 2.4 A (VGS = 10V) ● RDS(ON) ＜ 260mΩ (VGS = 10V) D G S SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Gate 2.Drain 3.Source 4.Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current Power Dissipation Single pulse avalanche energy Tc=25℃ (Note.1) Peak diode recovery voltage slope (Note.2) Thermal Resistance.Junction- to-Ambient Junction Temperature t < 10sec t > 10sec Storage Temperature Range Note.1: IAS = 2.4A, VDD = 30V, Rg=4.7Ω, starting Tj = 25°C Note.
